Page 286 · Robotics with the Boe-Bot
You can adjust the set points and proportionality constants to change the shadow Boe-
Bot’s behavior. Use your hand or a piece of paper to lead the shadow Boe-Bot while
doing these exercises:
√ Try running FollowingBoeBot.bs2 using values of
Kpr and Kpl constants,
ranging from 15 to 50. Note the difference in how responsive the Boe-Bot is
when following an object.
√ Try making adjustments to the value of the
SetPoint constant. Try values from
0 to 4.
ACTIVITY #3: FOLLOWING A STRIPE

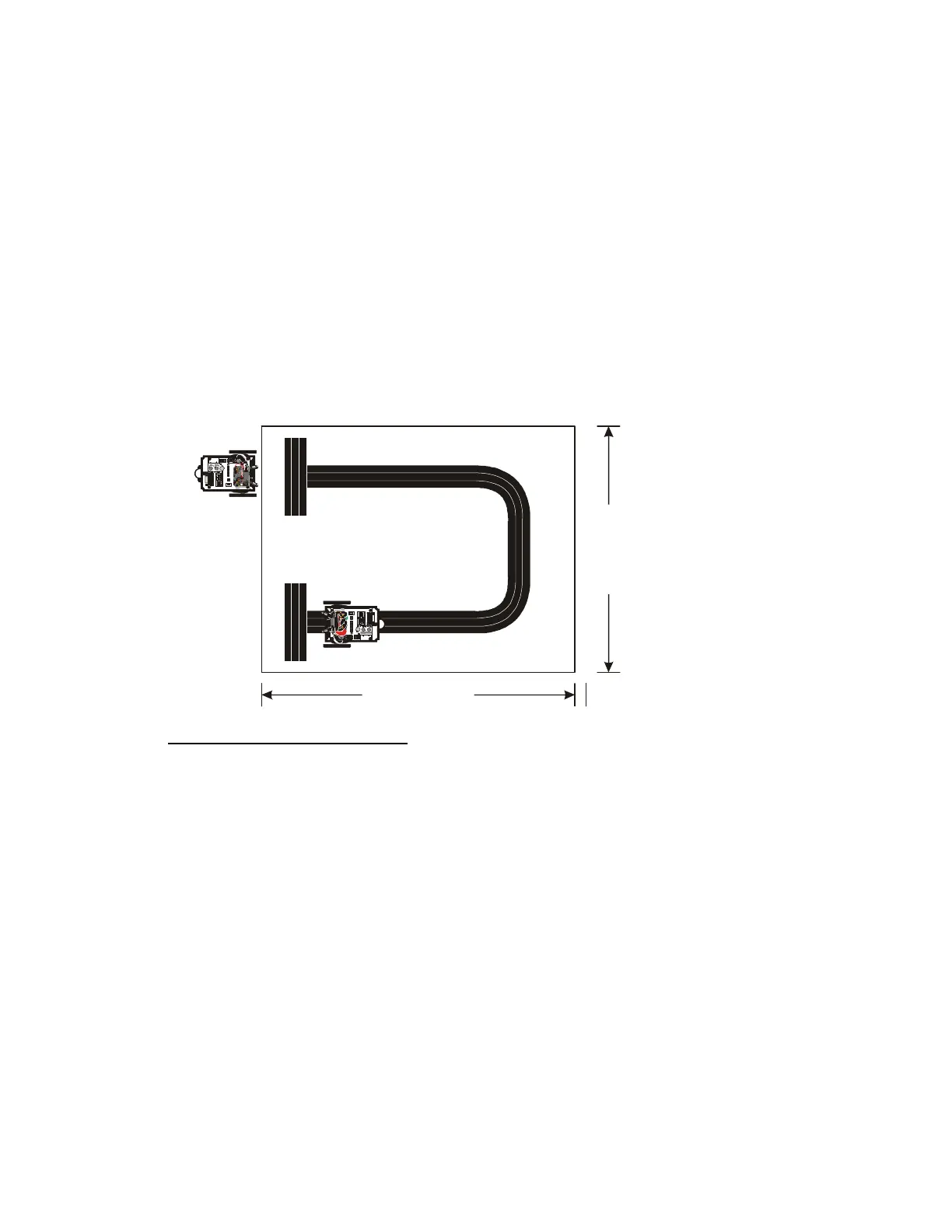

Figure 8-7 shows an example of a course you can build and program your Boe-Bot to
follow. Each stripe in this course is three long pieces of ¾ in (19 mm) vinyl electrical
tape placed edge to edge on white poster board. No paper should be visible between the
strips of electrical tape.
