The Board of Education® Rev B Carrier Board

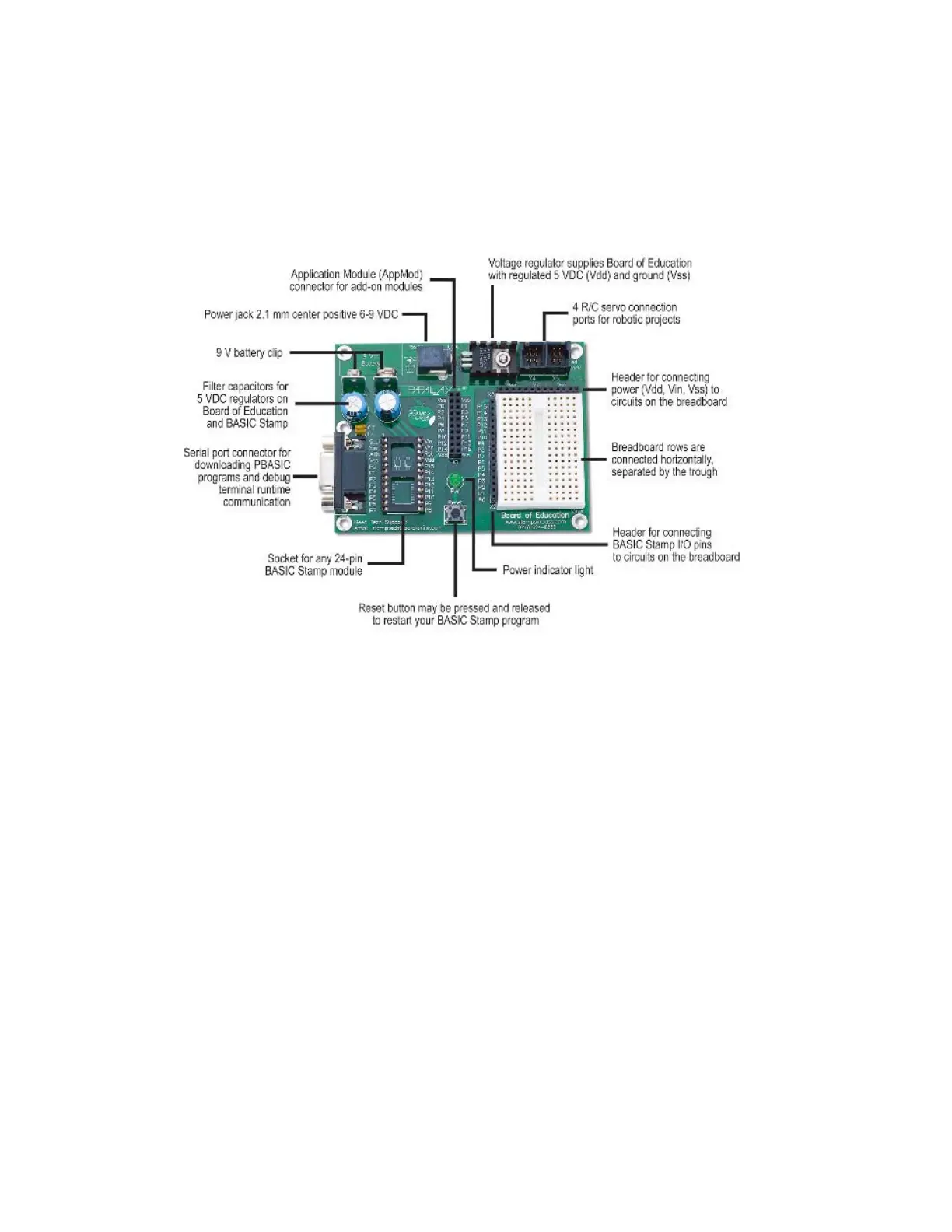

Figure B-4 shows the Board of Education® Rev B carrier board for BASIC Stamp® 24-
pin microcontroller modules. Its major components and their functions are indicated by
labels.
Figure B-4: Board of Education® Rev B Carrier Board
