Parker "N" Series User Manual

Parker Hannifin Corporation
Pneumatic Division
Richland, Michigan
www.parker.com/pneumatics
M12
M
1.81 DIA.
46.0mm
3.05
77.5mm
1.62
41.3mm
2.62
66.5mm
1.28
32.5mm
1.47
37.3mm
2.81
71.4mm
1.81
46.0mm
.81
20.6mm
1/2 N.P.T.
Conduit
Connection
10
13
16
14
4
24
12
1.50
38.1mm
5
.69
17.5mm
.53
13.5mm
18
20
11
6
8
11
6
8

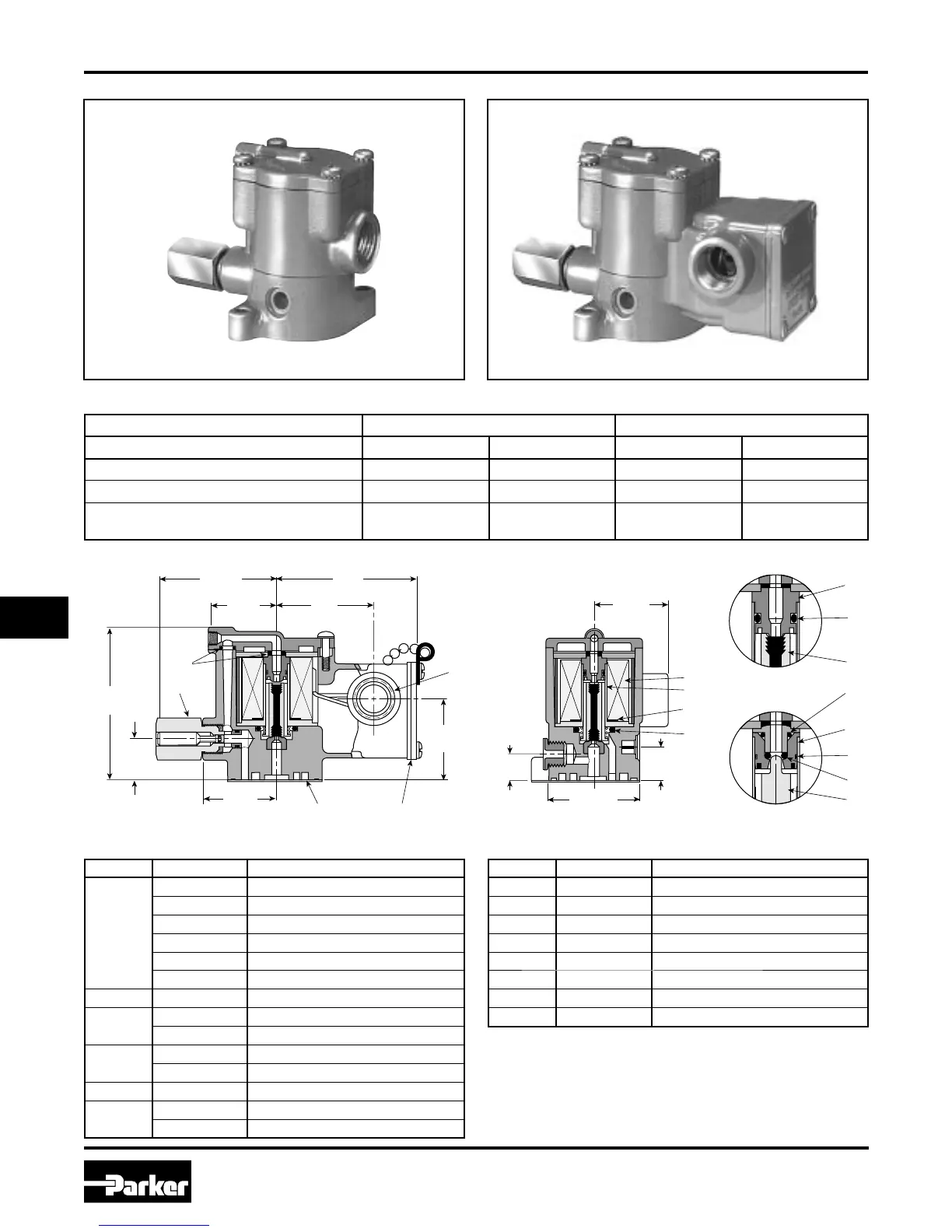

“N” Series Valves
Solenoid Pilot & Parts List - NEMA 1 & 12
Catalog 0600P-10/USA
Technical Information
Item No. Part Number Description
4
K593 025 Coil 120V 60Hz / 110V 50Hz
K593 035 Coil 240V 60Hz / 220V 50Hz
K593 003 Coil 6VDC / 24V 60Hz
K593 010 Coil 12VDC
K593 014 Coil 24VDC
K593 041 Coil 120VDC
5
H142 13 Seal
6
K423 006 Top Seat
K423 010 Top Seat (Continuous Duty)
8
K343 002 Plunger (STD. Service)
K343 001 Plunger (Continuous Duty)
10*
H142 01 Seal
11*
K41RB72011 O-Ring (STD. Service)
H249 69 O-Ring (Continuous Duty)
Item No. Part Number Description
12
K272 004 Plunger Guide
13
K152 003 Override Assembly
14*
K183 047 Cover Gasket
16*
K183 001 Gasket
18*
H134 73 O-Ring
20*
H134 13 O-Ring
22
H191 02 120 AC Only – Indicator Light
24
K183 108 Gasket
Description Standard L-Pilot Continuous Duty L-Pilot
Override Type Locking Non-Locking Locking Non-Locking
Basic with Override
K065 3035** K065 2035** K085 3025** K085 2025**
JIC with Junction Box & Override
K065 6035** K065 5035** K085 6025** K085 5025**
JIC Pilot with Junction Box &
Override & Indicator Lights (120VAC Only)
K065 9035** K065 8035** K085 9025** K085 8025**
Basic L-Pilot Junction Box L-Pilot
Continuous Duty
Pilot Only
** Voltage Code - (Reference Model Index for Availability)
Standard Duty
Pilot Only
Replacement Pilots
Parts List
Coil leads are 19" long.
* Parts included in Service Kit.
Continuous Duty Kit K352 366
Standard Service
Kit K352 166
