Parker "N" Series User Manual

Parker Hannifin Corporation
Pneumatic Division
Richland, Michigan
www.parker.com/pneumatics
M3
M
“N” Series Valves
Inline Poppet Valve
Catalog 0600P-10/USA
Basic Features
Specifications
• 2-Way NC
• 3-Way NO & NC
• Selector Function
Flow
• 3/8" Body – 3.0 to 4.4 Cv
• 3/4" Body – 9.0 to 11.0 Cv
• 1-1/4" Body – 20.0 to 30.0 Cv
Port Sizes
• 3/8" Body – 3/8", 1/2" NPT
• 3/4" Body – 1/2", 3/4", 1" NPT
• 1-1/4" Body – 1", 1-1/4", 1-1/2" NPT
• BSPP “G” Threads Available
Operating Pressure
• 30 to 250 PSI (0 to 1000 kPa)
• Vacuum with External Pilot
Features
• Continuous Duty Rated Option
• Non-Lube Service
• Hi-Flow, Short Stroke Poppet
• Indicator Lights Available
Certification / Approval
• Approved to be CE Marked
(Standard L-Pilot & P-Pilot)
• NEMA 4 Option
• Hazardous Duty Option
“N” Series

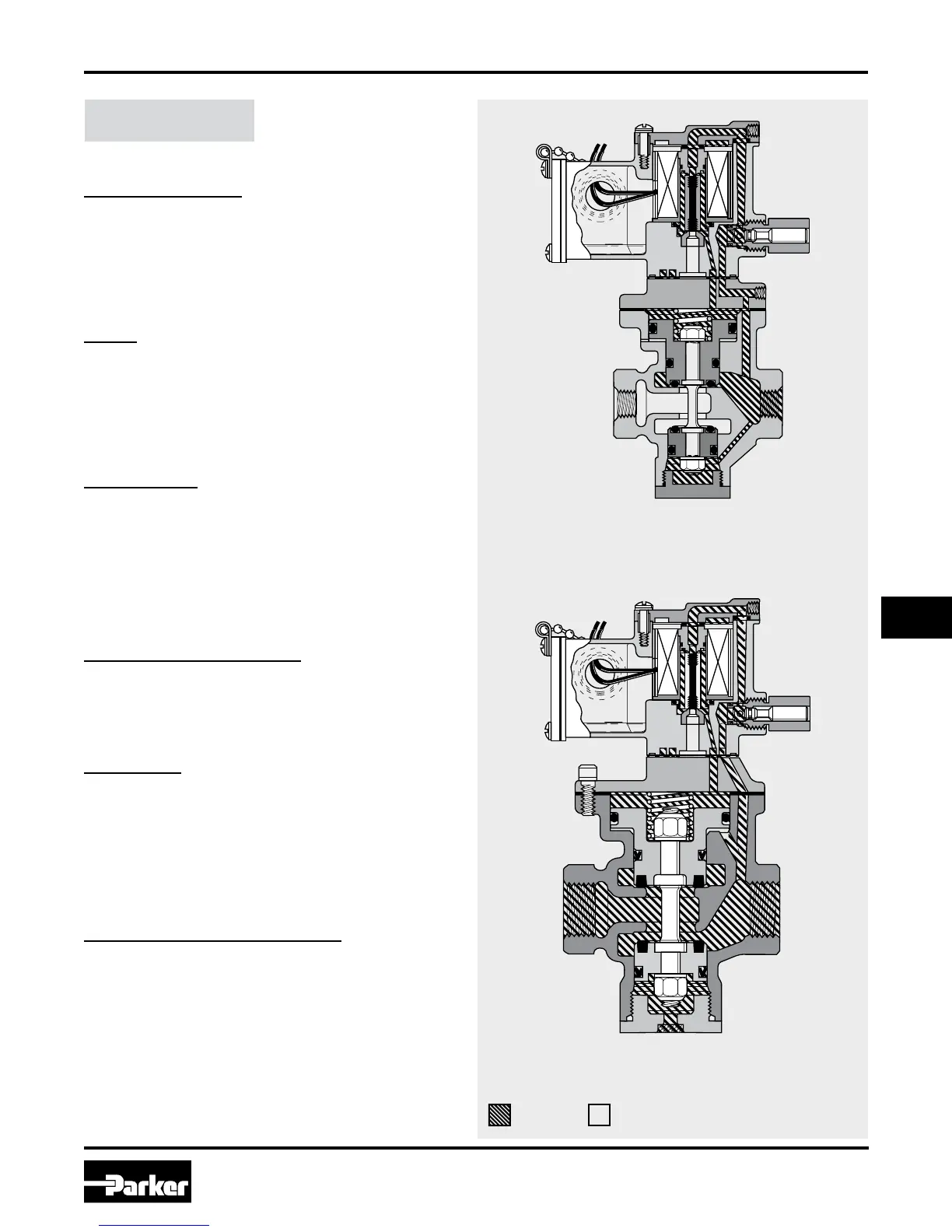

3/8" Solenoid Pilot De-Energized
Normally Closed
1-1/4" Solenoid Pilot De-Energized
Normally Open
Pressure Exhaust

Parker "N" Series Specifications

General

Series	N
Category	Plumbing Product
Type	Needle Valve
Material	Brass
Connection Type	NPT
Temperature Rating	-65°F to 250°F
