PVSG User Guide
4

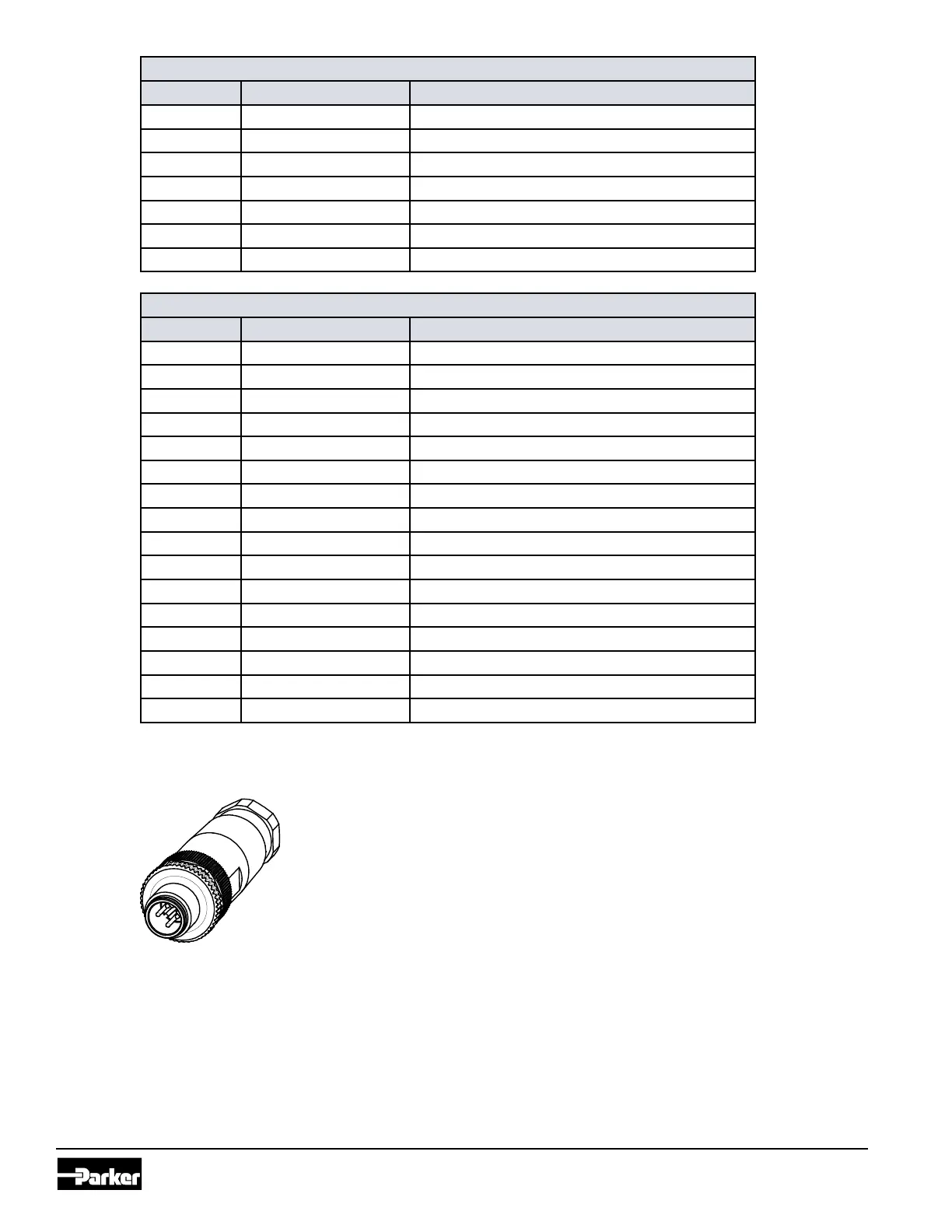

J1 Connector Pinout
Pin I/O Name Function
14
CAN4_SHLD
CAN4 Shield
15
CAN4_H
CAN4 High
16
CAN4_L
CAN4 Low
17
CAN5_SHLD
CAN5 Shield
18
CAN5_H
CAN5 High
19
CAN5_L
CAN5 Low
20
GND
GND (Negative battery)
J2 Connector Pinout
Pin I/O Name Function
1
GND
J1708A
2
CAN_L
J1708B
3
GND
GND (Negative battery)
4
LIN2
LIN2
5
GND
GND (Negative battery)
6
LIN1
LIN1
7
NC
Reserved
8
OUTPUT1
Output1
9
NC
Reserved
10
GND
GND (Negative battery)
11
LIN4
LIN4
12
NC
Reserved
13
NC
Reserved
14
NC
Reserved
15
GND
GND (Negative battery)
16
LIN3
LIN3
In addition, there is 1 x USB (M12 5 pin), and depending on conguration, 1x Ethernet (M12 4 pin) and 1
x SMA Wi-Fi antenna connector.
Figure 2.2. M12 connector example
