12
Connecting Sensors:
All Sensors, SciCon for use with the DINCon Module, SciPres for use with the DINPres
Module and SciTemp for use with the DINTemp Module are disposable flow through
sensors that are purchased separately from Parker and come Pre-Calibrated.
The Sensors connect to a provided cable that has a watertight connector on the sensor
end and an 8 pin connector on the other end that plugs into a matching port on the
bottom of the Module. The DINCon has only one port, and uses only one SciCon
Sensor. The DINPres and DINTemp have 3 ports, can support up to 3 SciPres or
SciTemp Sensors, and they are referred to as P1 – P3 or T1 – T3 beginning with P1
and T1 at the rear, or the closest connector to the DIN rail.

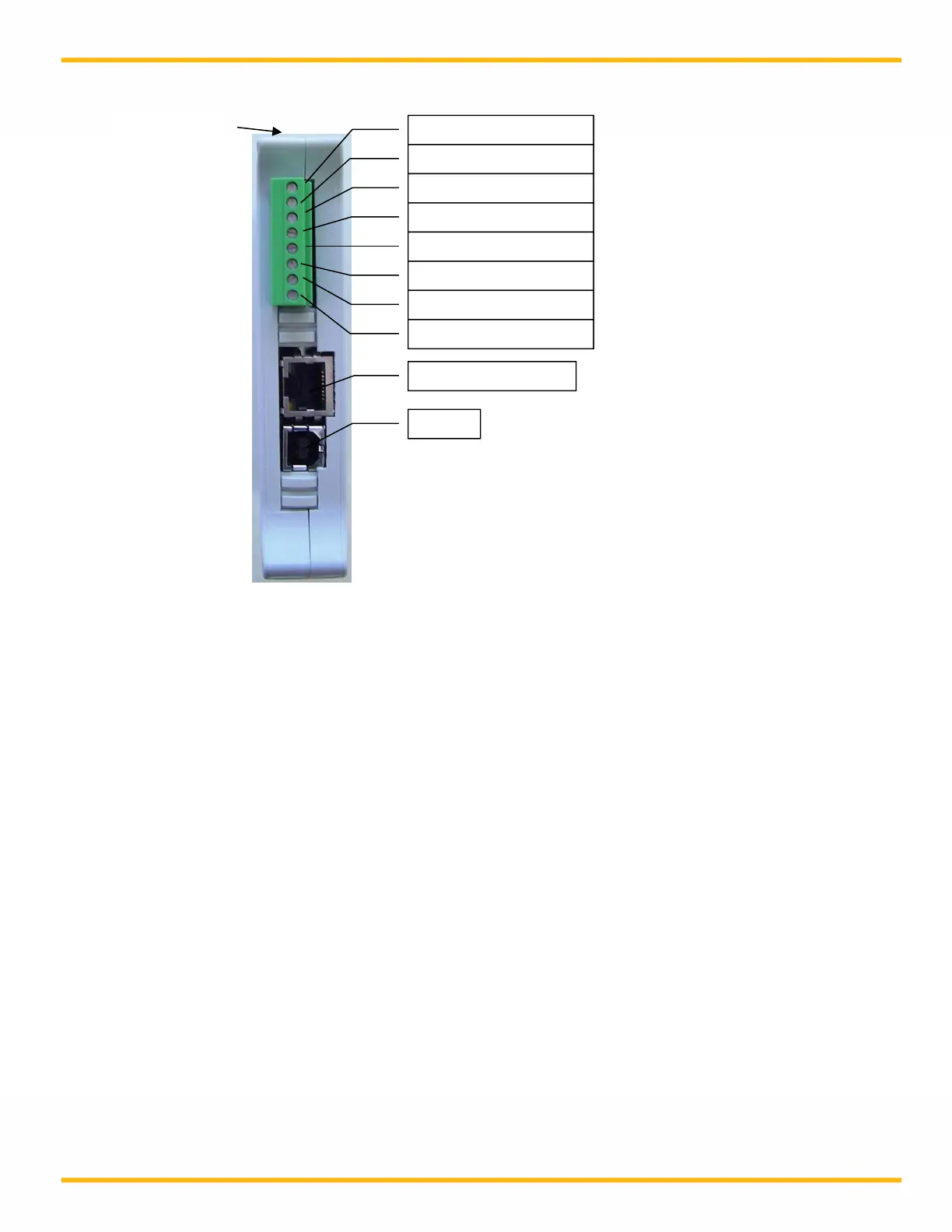

Pin 1: +24VDC
Pin 2: Common
Pin 3: Not
Pin 4: Si
nal
Pin 5: RS-232 RX
Pin 6: RS-232 TX
Pin 7: RS-485
Pin 8: RS-485 B
USB
RJ45 Ethernet
