Torqmotor™ Service Procedure
TF, TG, TH and TL Series
Parker Hannifin Corporation
Hydraulic Pump/Motor Division
Greeneville, TN 37745 US
11

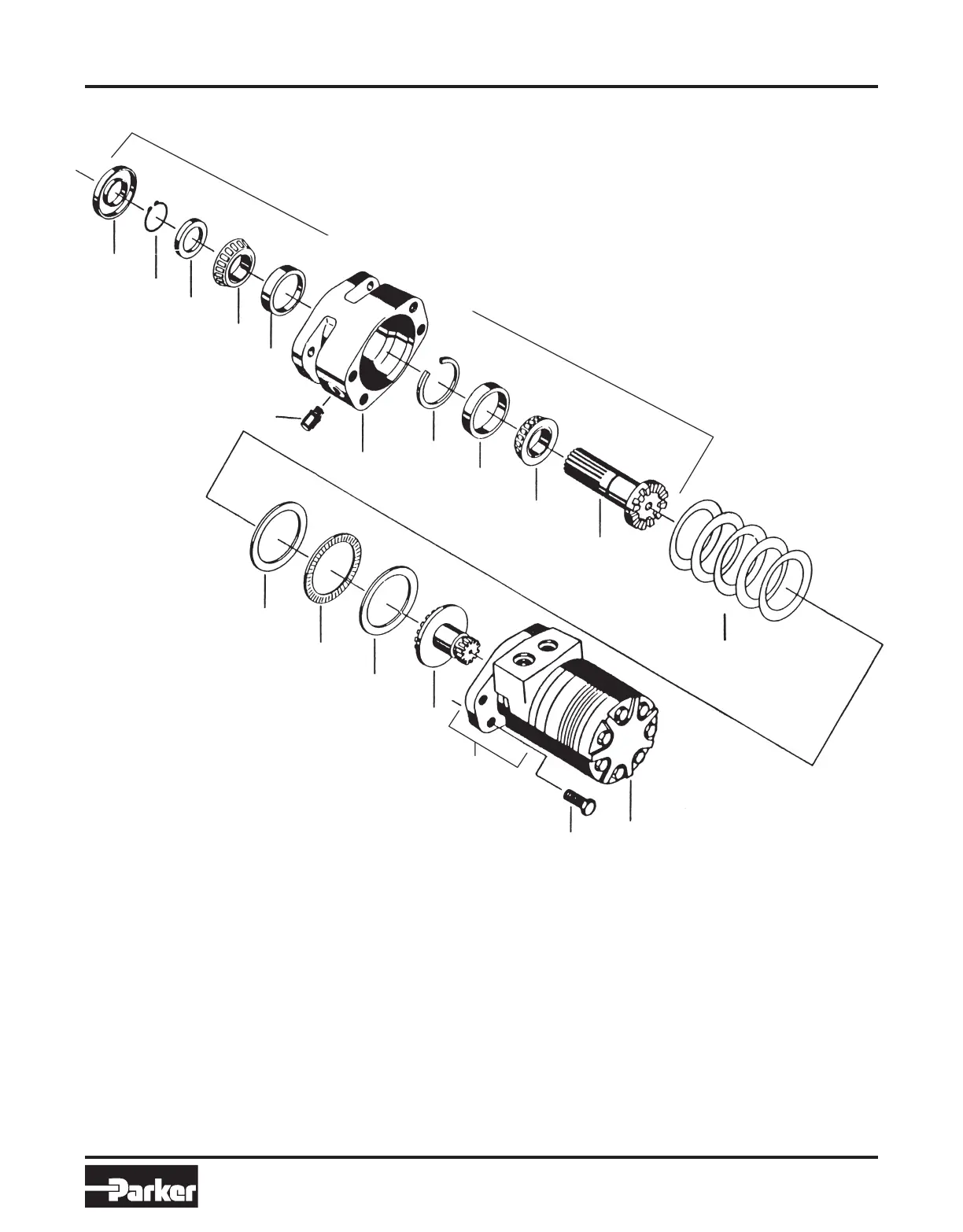

Integral Clutch Housing Exploded View
47
†
48
†
50
†
51
†
52
†
55
41
53
†
52
†
51
†
49
46*
44*
45*
44*
42*
56
40
39
405167A6 1 1/4” Straight Key Shaft
405167A5
14 Tooth Spline
Sub-Assembly
Item No. Description
39 Torqmotor Sub-Assembly
40 Bolt 1/2-13 (UNC-2A) (4 Req’d.) 021479
41 Clutch Housing 405167
42* Splined Gear Drive 490102
44* Thrust Washer (2) 400142
45* Thrust Bearing 073005
46* Disc Spring (5) 028511
47† Seal - Dirt and Water 478030
48† Snap Ring 401623
49 Drive Shaft 14 Tooth Spline 093043
49 Straight Key Shaft 1 1/4” 093044
50† Thrust Washer 400141
Yellow 028027 .132 - .134
White 028028 .138 - .140
Green 028029 .144 - .146
Blue 028030 .150 - .152
Red 028031 .156 - .158
Black 028032 .162 - .164
51† Bearing and Cone Assembly (2) 067033
52† Bearing Cup (2) 400140
53† Retaining Ring 401623
55 Plug 036024
56 Housing ME012013A1
Typical Assembly
NOTE: Apply .06 in. (1.5 mm) Bead of Loctite #51514
Around Full Circumference of Pilot
* Items sold separately: not included in Seal Kit
† ºSK000039 for Clutch Assembly only
SK000092 Seal Kit for Hydraulic Motor only Item #39.
Clutch Motor applies to TF Series only (Not available in
22, 25, 29 cu in.)
SHC Oil 90 WT 45± 5CC
