Parker Torqmotor TF Series User Manual

HY13-1527-M1/US
Torqmotor™ Service Procedure
TF, TG, TH and TL Series
Parker Hannifin Corporation
Hydraulic Pump/Motor Division
Greeneville, TN 37745 US
9
CONVERSIONS
INCHES mm INCHES mm
.020 .51 1.060 26.92
.021 .53 1.295 32.89
.029 .74 1.297 32.94
.030 .76 1.396 35.46
.111 2.81 1.398 35.51
.119 3.02 1.620 41.15
.152 3.86 1.622 41.20
.160 4.06 1.983 50.37
.296 7.52 1.985 50.42
.304 7.72 2.120 53.85
.460 11.68 2.122 53.90
.470 11.94 2.233 56.72
.500 12.70 2.235 56.77
.585 14.86 2.483 63.07
.595 15.11 2.485 63.12
.660 16.76 2.500 63.5
.675 17.15 2.88 73.2
1.058 26.87
Torque Chart
Part Name Item Number Torque
bolt 3/8 24 UNF 2A 1, 1A, 1B or 1C 45-55 ft. lbs. (60-76 N m)
bolt 5/8 18 UNF 2A 12D 140-180 ft. lbs. (190-244 N m)
nut 1-20 UNEF 2B 12B (TF, TG, TL) 300-400 ft. lbs. (407-542 N m)
nut 1-1/8 18 UNEF 2B 12B (TG, TH) 300-400 ft. lbs. (407-542 N m)
(Fabricate if considered necessary)

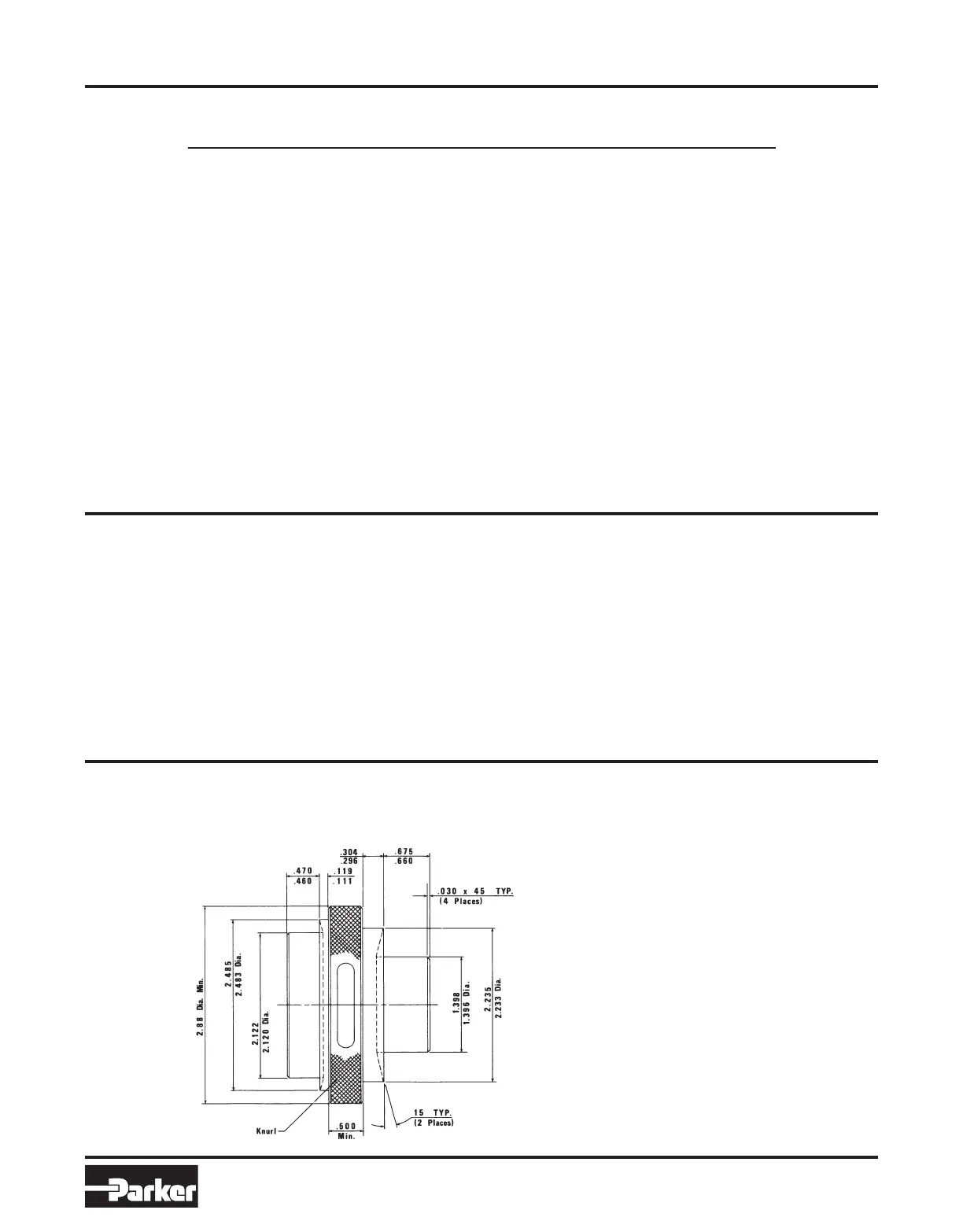

Figure 1 – TF & TG (see note)
Technical Information
- TL press internal bearing .576 below face
- TH press internal bearing .120 below face
