Parker Torqmotor TF Series User Manual

HY13-1527-M1/US
Torqmotor™ Service Procedure
TF, TG, TH and TL Series
Parker Hannifin Corporation
Hydraulic Pump/Motor Division
Greeneville, TN 37745 US
35

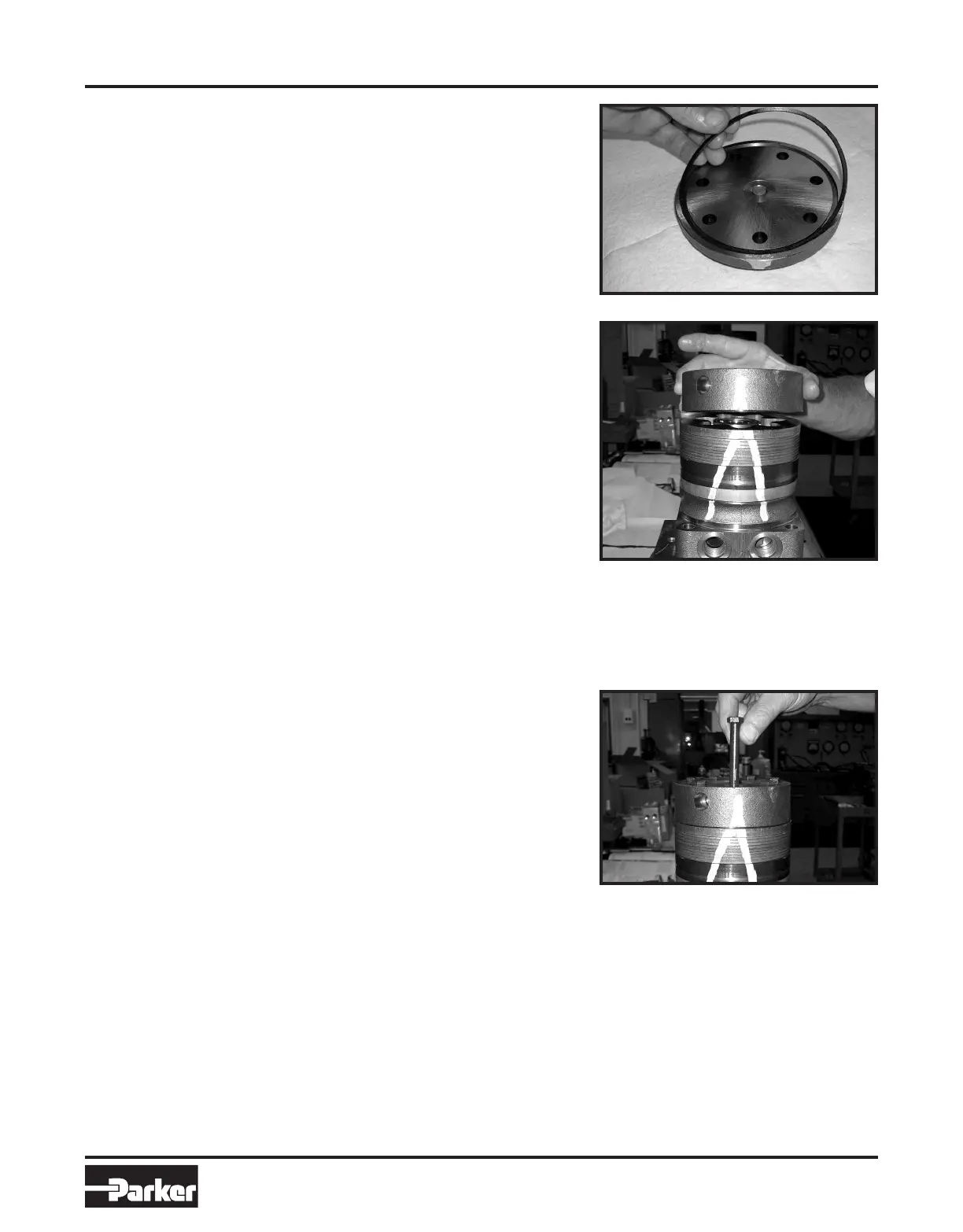

Assemble seal
ring & end cover
19. Assemble a new seal ring (4) into end
cover (2) and assemble end cover onto the
commutator set. SEE FIGURES 54 and 55.
NOTE NOTE: If the end cover has a valve (24),
use the line you previously scribed on the
cover to radially align the end cover into
its original position.
Assemble cover
bolts
20. Assemble the 7 special bolts (1, 1A, 1B or
1C) and screw in nger tight. Alternately and
progressively tighten the bolts to pull the
end cover and other components into place
with a nal torque of 50-55 ft. lbs. (68-75 N
m) for the seven 3/8-24 threaded bolts. SEE
FIGURES 56, 57 and 58.
Figure 54
Figure 55
Figure 56
Torqmotor™ Assembly
