24 VIX AE SERVO DRIVE USER GUIDE
1
W
V
U
GND
MAX
150mm
X1
2
3
4
5

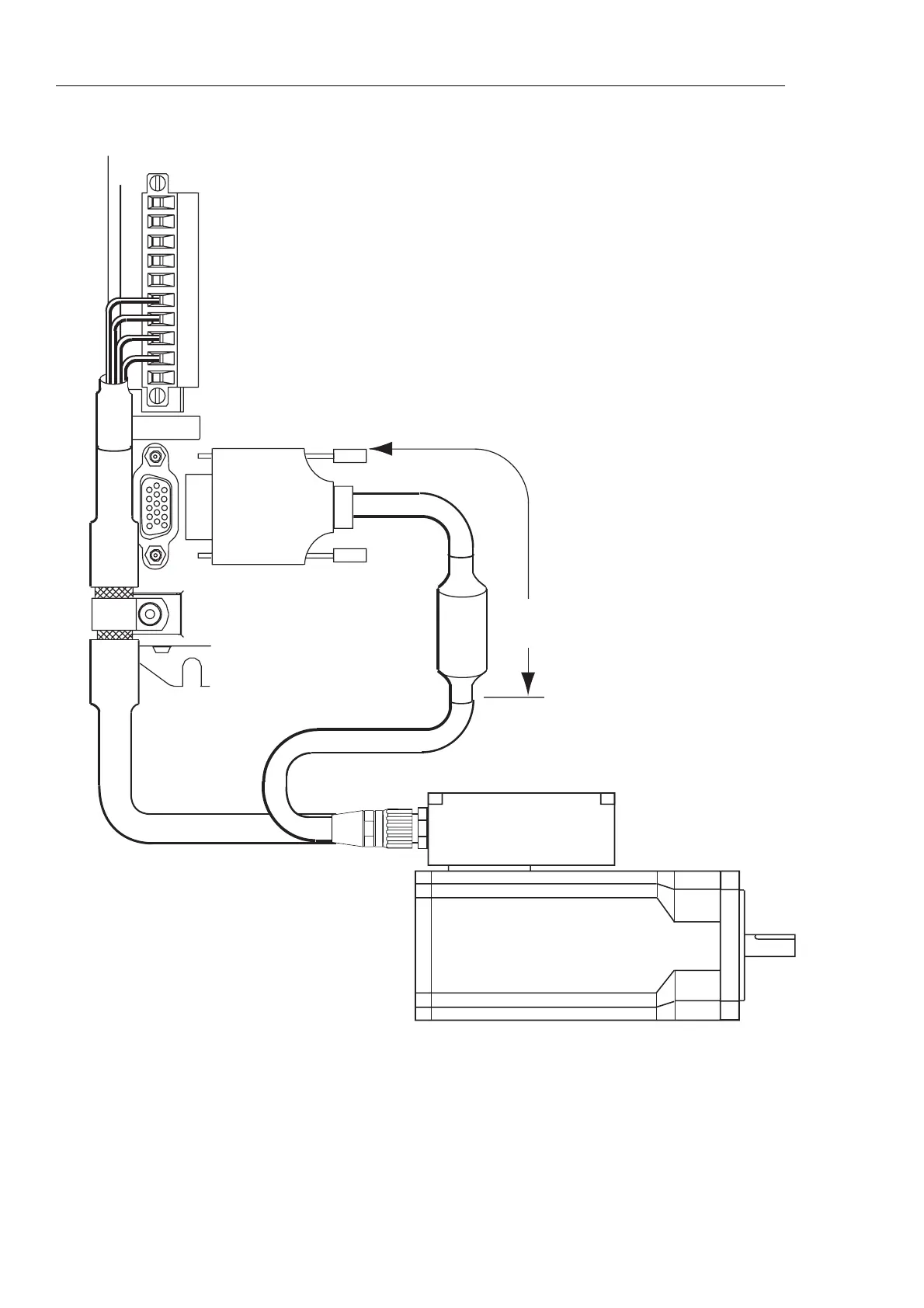

Figure 3-10. Position of absorbers & motor wiring details
There must be no break in the 360° coverage that the screen provides around the cable
conductors.
Use of a through connector must retain the 360° coverage, possibly by the use of an
additional metallic casing where it passes through the bulkhead of the enclosure. We
