PARKZONE Radian Pro - Aircraft Assembly; Installing Wings; Installing Horizontal Tail

7
EN

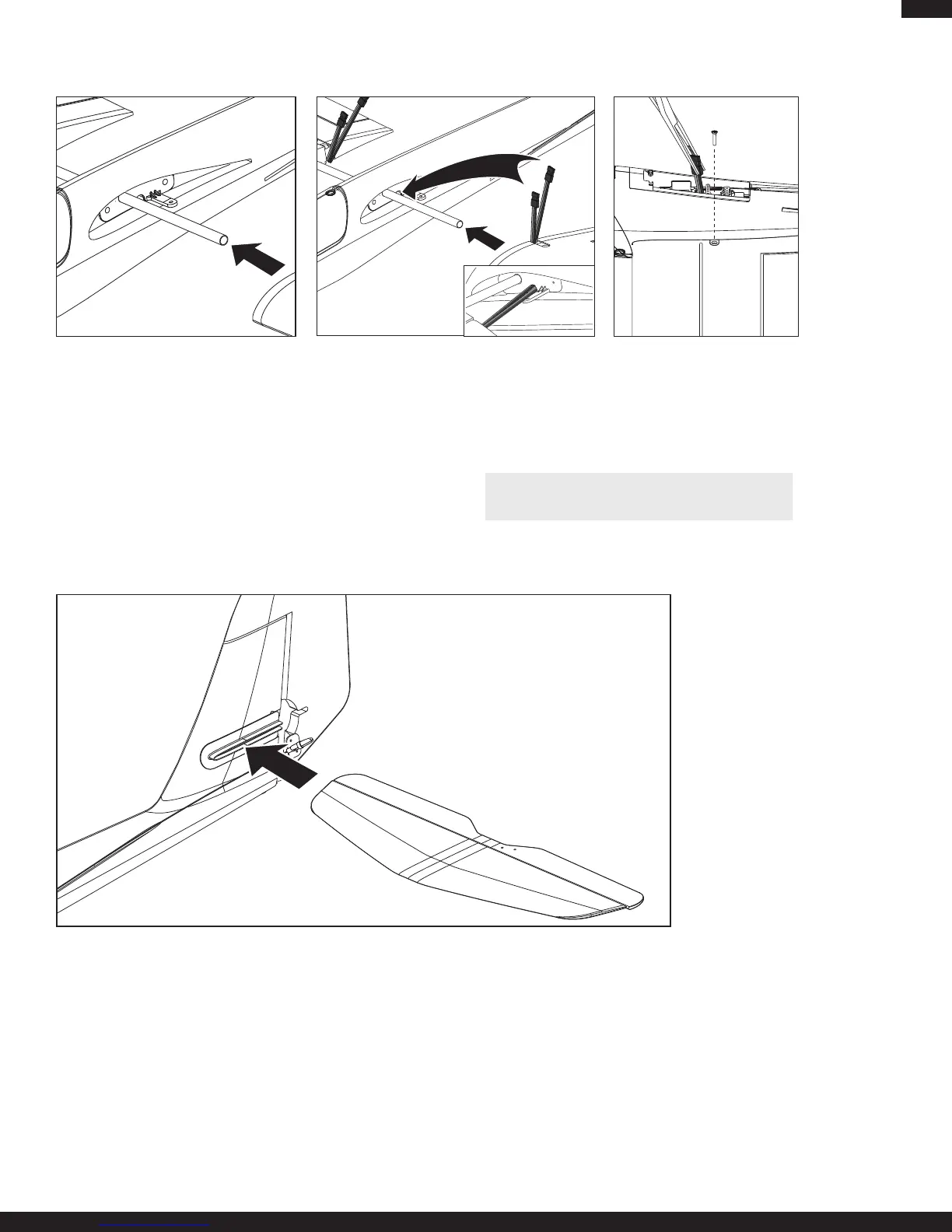

Installing Wings
1. Put the wing tube in the round hole in the wing slot of the fuselage.
2. Put left wing on the wing tube.
3.Movethewingonthetubeintotheslotinthefuselagewhileputtingthe
aileron and flap connectors in the fuselage.
Note: Hemostats or needle-nose pliers may be required to put the connectors
in the fuselage for connection to the receiver.
4. Fully install left wing in fuselage and secure wing with countersunk screw.
5. Install the right wing using the steps above.
6.Attachthe2aileronconnectorstotheaileronY-harnessinthefuselage.
Note: Whenusingatransmittercapableofcontrollingseparateailerons,the
aileron Y-harness is not required.
7. Attach the 2 flap connectors to the flap Y-harness.
Note: To remove wings, follow steps in reverse order.
1. Install horizontal tail from the left side of the fuselage through the hole in
the rudder and fuselage. The black and red decal will be facing up with
the black orientation stripes facing down. Make sure horizontal tail is
centered on the fuselage.
2. Apply 4 pieces of tape to horizontal tail sections and top and bottom of
fuselage.
3. Installelevatorclevisinoutermostholeofcontrolhorn(onhorizontaltail,
under left side). The elevator control horn is on the bottom of the left side
of the horizontal tail.
4. Move silicone band over clevis to keep the clevis on the control horn.
Installing Horizontal Tail
Note: Left and right servo connectors do not have to be
connected to a particular side of a Y-harness.
