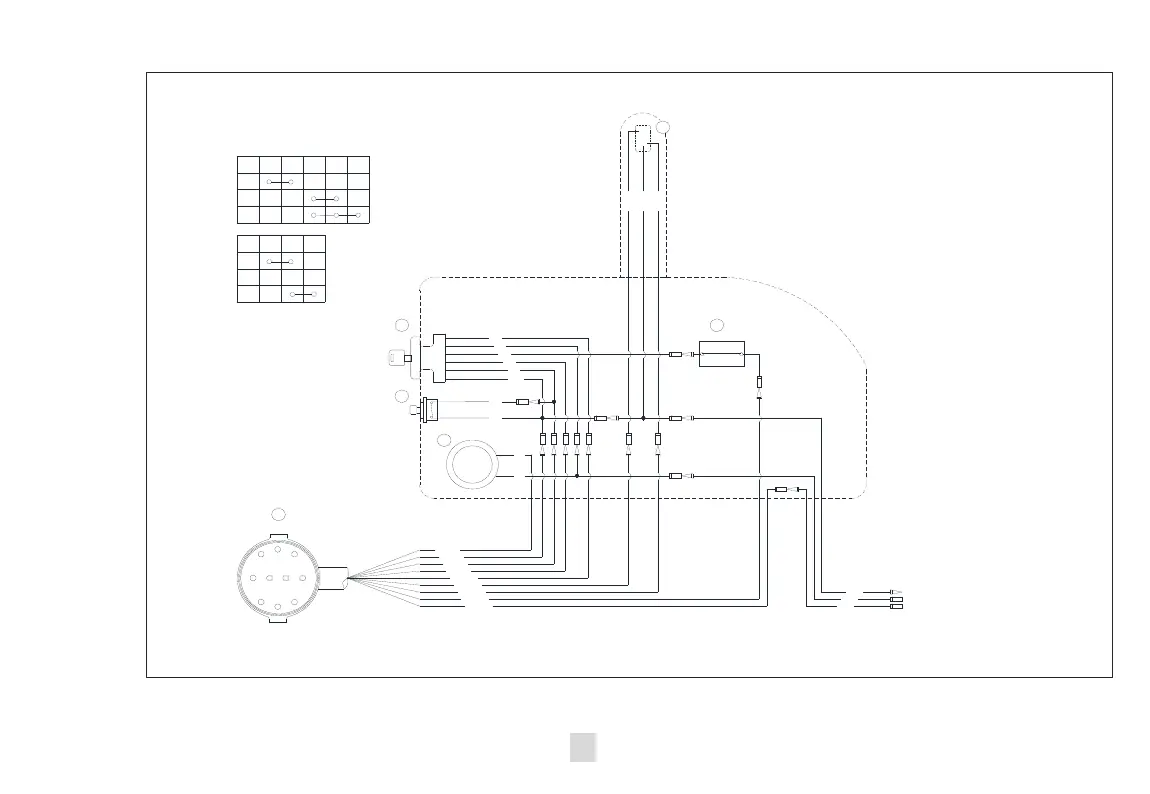

Remote control box for F40FW-T
R
Y
Br
W
L
W
B
P
Y
Lg
BSb
B
P
B
W
L
Br
R
Lg
Sb
G
B
G
Y
1 P.T.T. switch
2 Main switch
3 Engine stop switch
4 Buzzer
5 Neutral switch
R Red
P : Pink
B : Black
G : Green
W : White
1
2
3
4
5
6
Br: Brown
Y : Yellow
Lg: Light green
Sb: Sky blue
L : Blue
OFF
ON
START
W
B
R
UP
FREE
DOWN
Sb R Lg
Y
Br
1
Power tilt&trim switch
2
Start switch
3
Engine stop switch
4
Buzzer
5
Neutral switch
R: red
P: pink
B: black
G: green
W: white
Br: brown
Y: yellow
Lg: pale green
Sb: pale blue
