750w² Monitor Instruction Manual
5 Measurement Configuration

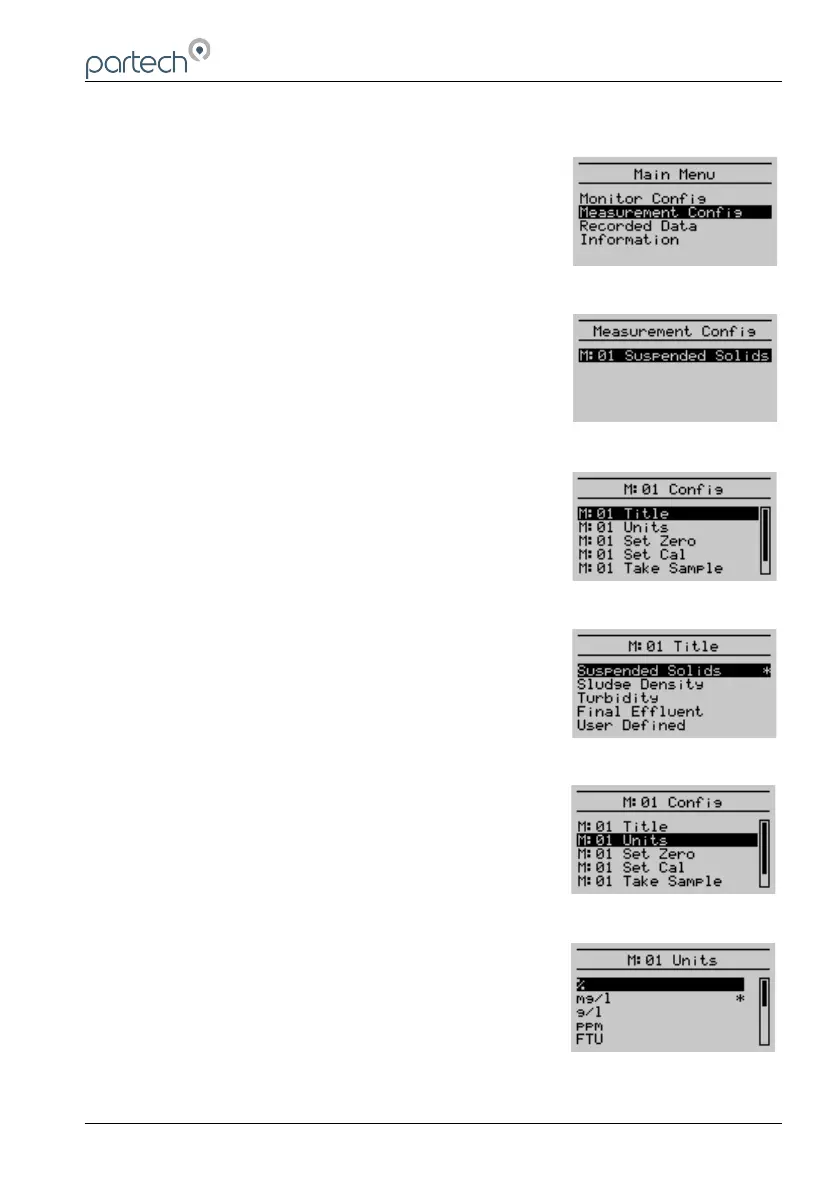

Measurement Config (Figure 19 and 20) provides
access to sensor calibration and other settings relating
to the measurement.
All these settings are stored within the sensor allowing
sensor swapping without reconfiguration.
All sensor specific configuration including calibration is
explained in the sensor manual.
Press OK to continue.
5.1 Title
This allows the title of the measurement to be changed
from it's default.
A selection of standard measurements (Figure 21 and
22) are available along with a 'User Defined' that can
be adjusted to suit your requirements.
For example this could be changed to 'Suspended
Solids Line 1'.
The maximum number of characters is 20.
5.2 Units
This allows the units of the measurement to be
changed from it's default, the measurement units are
used in measurement mode.
A selection of standard terms are available (Figure 23
and 24) along with a 'User Defined' option that can be
adjusted to suit your requirements.
The maximum number of characters is 4.
Page 12 of 20 228538IM Issue 09 Issue Date 20/01/2020
Figure 20
Figure 21
Figure 23
Figure 24
Figure 19
Figure 22
