750w² Monitor Instruction Manual
1 Introduction
1.1 General
The 750w² Monitor is designed to work with Partech’s WaterWatch² (w²) sensors.
It combines a clear display of the measured parameter, a simple user interface,
with good flexibility to enable configuration to satisfy the users needs.
1.2 Display

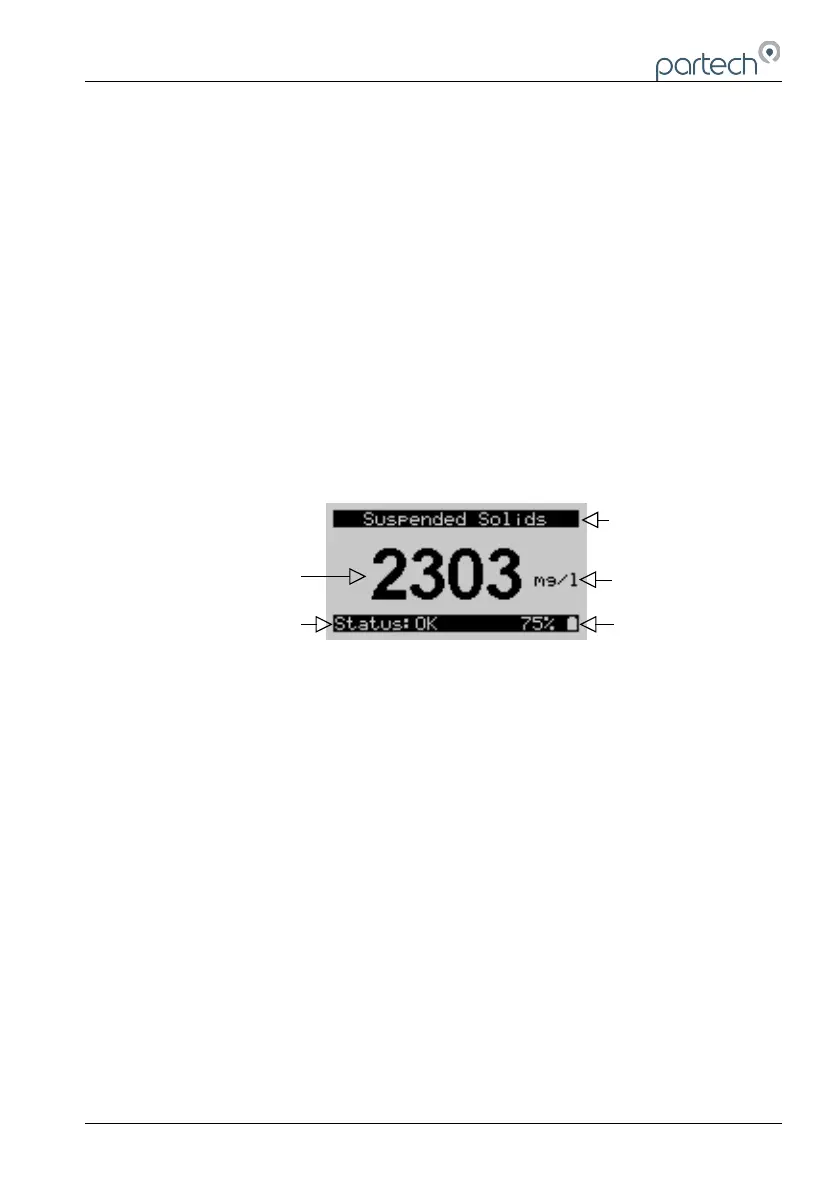

The 750w² display indicates the measured value with large numerals with an
additional status line that shows the current settings, battery status and any faults
that are present. The display has a backlight to enable use of the monitor in low
light conditions and also has adjustable contrast.
The measurement title and units can all be user set to suit the sensor being used
and the application being monitored.
1.3 Keypad
The 7 key tactile membrane keypad is used for all configuration and operation of
the 750w² Monitor.
1.4 Sensors
The 750w² Monitor can currently be used with the SoliTechw² IR sensor range.
1.5 Manual Conventions
This instruction manual describes the configuration and operation of the 750w²
Monitor and where required includes some information regarding sensors. It is
therefore very important that it is used in conjunction with the relevant sensor
instruction manual.
The manual has been written on the basis that the user has a basic knowledge of
instrumentation and an understanding of the type of measurement being made.
Training in the use of the 750w² Monitor can be provided by Partech, please
contact Partech for further information
228538IM Issue 09 Date 20/01/2020 Page 5 of 20
