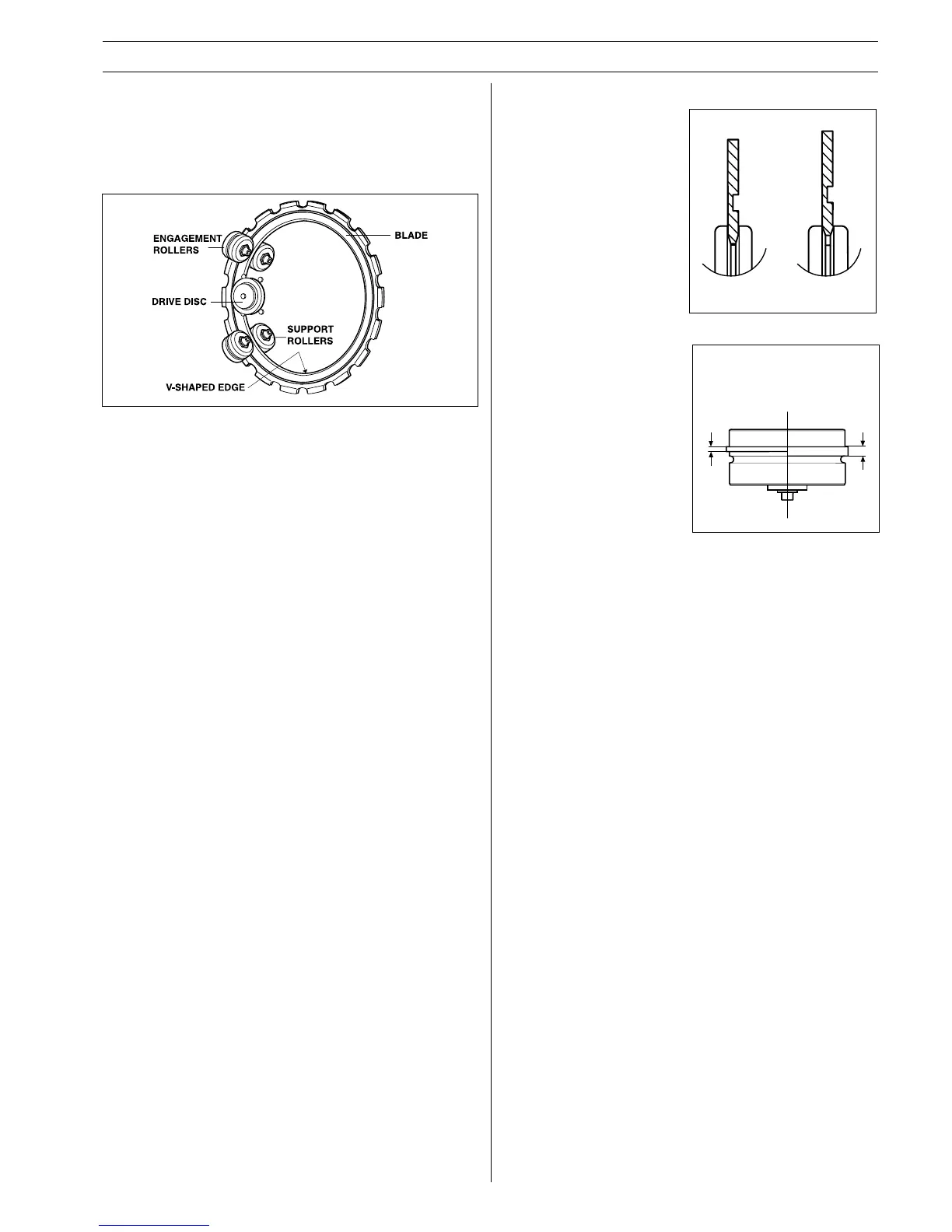

SET UP AND ADJUSTMENTS
Drive Principle
The machine’s unique design allows the blade to be driven by a
belt driven shaft mounted off the center of the blade. This
feature provides a total cutting depth of 260 mm (10 inches)
with a 350 mm (14 inch) wet cutting diamond blade. The
machine is a small, well-balanced and light weight package.
• the engagement rollers are
not overly worn; and
• the adjustment between the
rollers and the blade is
correct.
During the life of a blade, roller
adjustment needs to be
checked twice, once after
installation of a new blade and
once when the blade is worn
50%.
WORN
Min 1,5 mm
(.060")
NEW
3 mm (.120")
ENGAGEMENT ROLLER
Essential Service
As the blade is used, the
inner diameter of the blade,
as well as the groove in the
drive disc, will wear.
The saw will continue to
operate well when:
• the drive disc is not overly
worn; and
WORN
NEW
DRIVE DISC
The shoulders on the two engagement rollers run in the groove
of the blade. The engagement roller springs forces the roller
out, pushing the V-shaped edge of the blade’s inner diameter
against the V-shaped groove of the drive disc. The drive disc is
mounted on a shaft driven by the engine via a belt.
