Parweld XTM 201i - Torch Schematic ECO-GRIP MAX 150 A

www.parweld.co.uk www.parweld.co.uk
13
Model
Stock Code 3M 4M Model Description
ECR1500 -30ER -40ER Eco-Grip MAX Torch Package
c/w Euro Fitting
Nozzles
Stock Code Description
A ECO1530* Eco Conical Nozzle 15/32”/12mm Bore
B1529 Cylindrical Nozzle 5/8”/16mm Bore
B1531 Tapered Nozzle 7/16”/11mm Bore
B1532 Bottle Nozzle 1/2”/13mm Bore
B1533 Spot Welding Nozzle 5/8”/16mm Bore
Contact Tips
Stock Code Description
B ECO1527-06 Eco Contact Tip 0.023”/0.6mm M6 Eco
ECO1527-08* Eco Contact Tip 0.030”/0.8mm M6 Eco
Liners
Stock Code Description
C ECO1535-30 Eco Steel Liner .023”-.030”/0.6-0.9mm x 3m
ECO1535-40 Eco Steel Liner .023”-.030”/0.6-0.9mm x 4m
Components
Stock Code Description * Denotes Standard Build
1 B1504 Shroud Spring
2 B1507 L/H Tip Adaptor
3 ECO1501 Swan Neck c/w Tip Adaptor & Insulation Sleeve
4 ECO1502 One Piece Neck Insulation Sleeve
5 B2519 Hexagonal Fitting
6 B1515/PG Handle Location Body
7 B1505 Lock Nut
8 ECO8020 Spring Cable Support c/w Knuckle Joint
9 B1521 Cable Terminal – Female
10 ECO8514 Eco-Grip MAX Handle Kit
11 B8516 Eco-Grip MAX Trigger
12 B1517-30 Cable Assembly x 3.0m
B1517-40 Cable Assembly x 4.0m
B1517-50 Cable Assembly x 5.0m
13 B1522 Cable Terminal – Male
14 B1841 Cable Support
15 B1518 Gun Plug Housing c/w Nut
16 B1526 Gun Plug Screw
17 B1519PL Gun Plug Nut, Plastic c/w Insert
18 Spring Pin 2 Spring Pin Assembly
19 B1528 Gun Plug Body c/w Spring Pins
20 B1524 Gun Plug ‘O’ Ring
21 B1525 Liner Nut

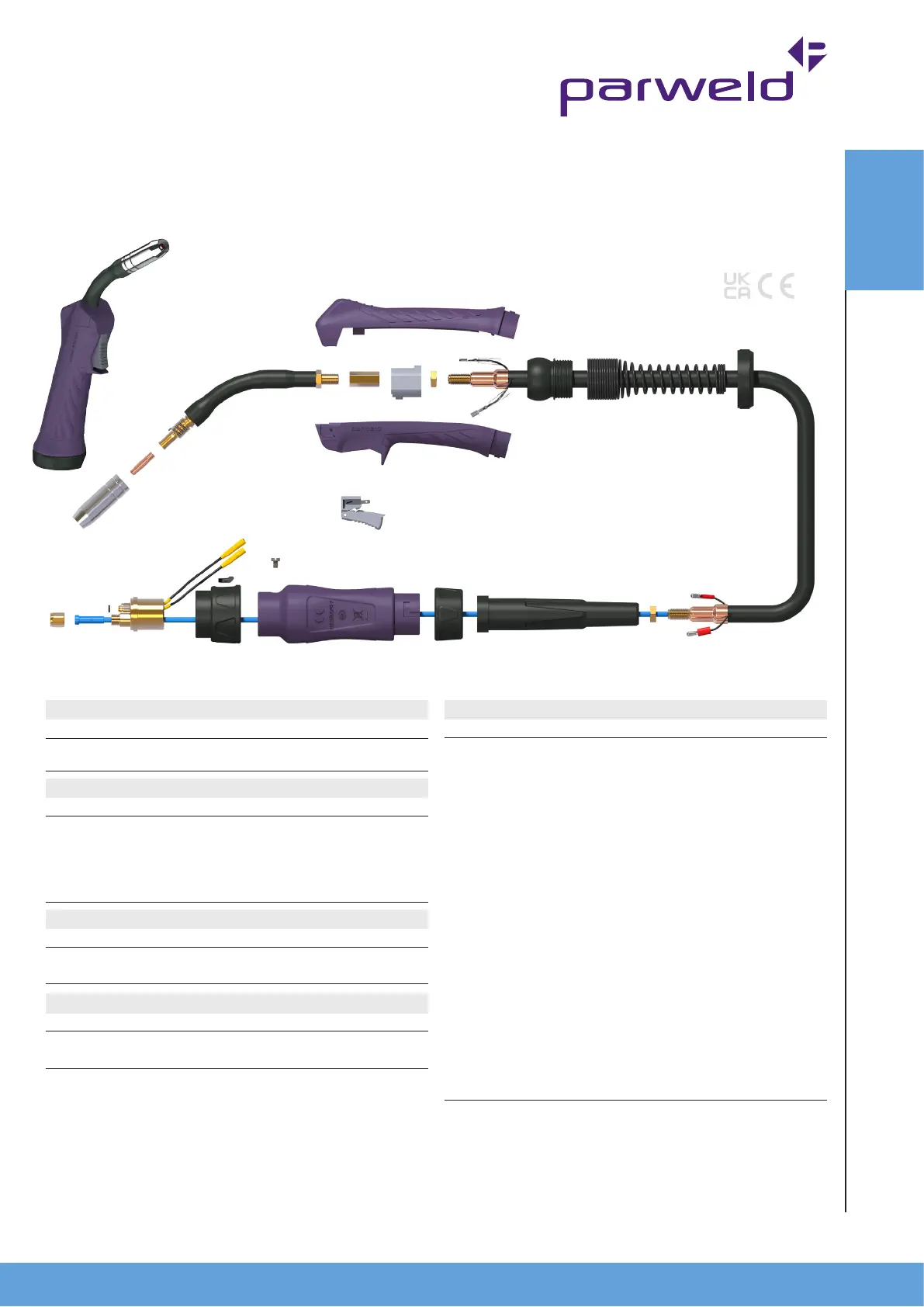

9.0 Torch Schematic - ECO-GRIP MAX
®
150A
Air Cooled MIG Welding Torch
Rating: 140A CO
2
140A mixed gas, @ 60% duty cycle. EN60974-7 .023”-.040”/0.6-1.0mm wires
A
B
1
2
3
4
14
5
6
9
11
12
15
16
17
18
19
20
21
C
7
7
10
8
13
ACCESSORIES
