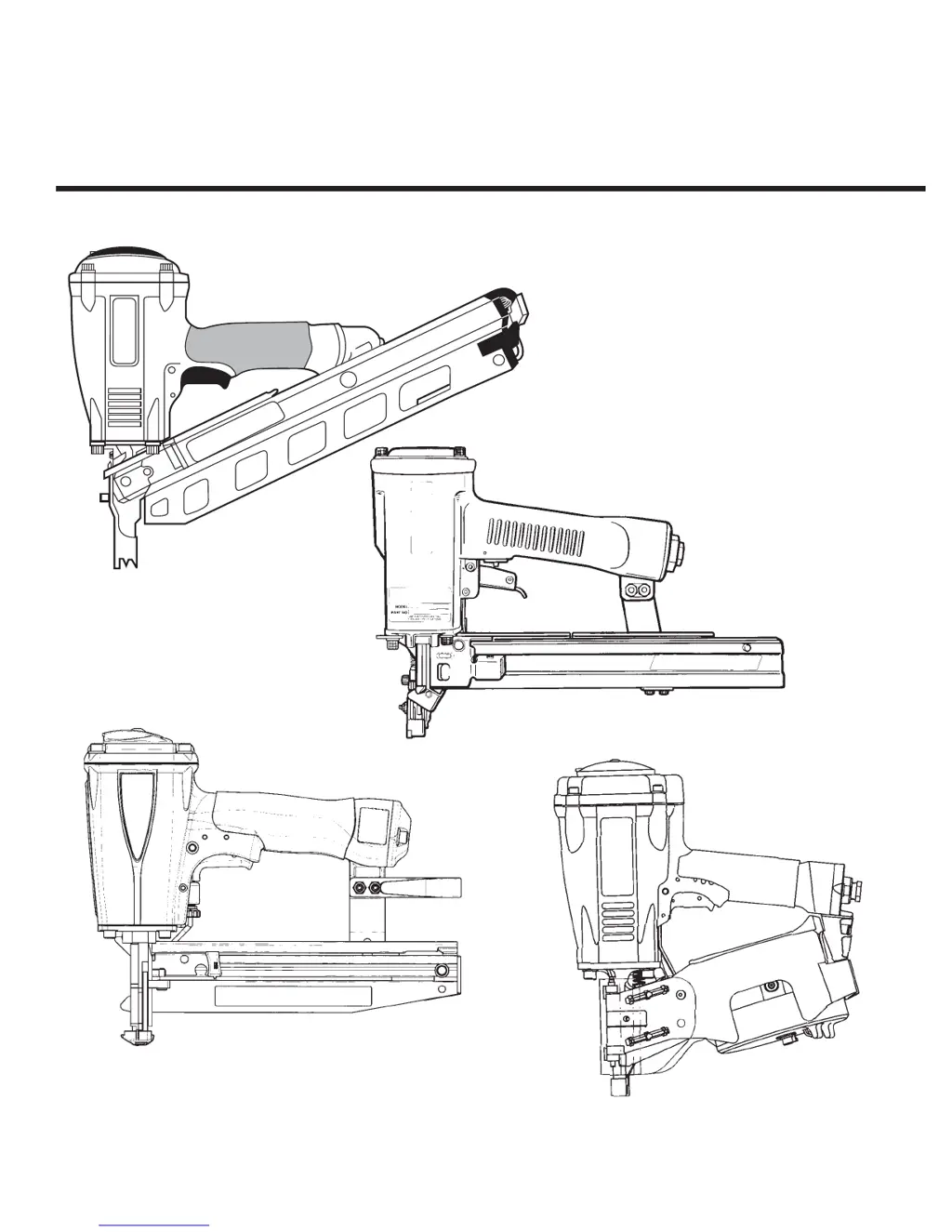

Operating and Maintenance Manual

PNEUMATIC TOOLS

403606-10

08/02

Table of Contents

Questions and Answers

T
Tina HallAug 10, 2025
What to do if fasteners jam in the nose of my Paslode Nail Gun?
- K
  Krystal ReevesAug 10, 2025
  If fasteners jam in the nose of your Paslode Nail Gun, here's what to do: * Open the front guide latch to release the jammed fastener, then close the latch securely. * Check the magazine to ensure you're using the correct fasteners. The magazine follower should slide freely; clean it to remove any debris if needed. Be sure to use only fasteners that meet Paslode specifications. You may also need to increase air flow to the tool by using larger air lines (3/8 inch ID minimum) and adjust the work contacting element if your tool has that feature.
C
Chad WellsAug 16, 2025
What to do if my Paslode Nail Gun operates, but no fasteners are driven?
- D
  Diana WagnerAug 16, 2025
  If your Paslode Nail Gun operates but doesn't drive any fasteners, check the magazine to ensure it contains the correct fasteners. These fasteners should slide freely without pressure from the follower. Next, open the front guide latch or loosen the magazine knob to inspect the nose area for jams or debris, and clear it as needed. Also, make sure the air pressure is sufficient, but do not exceed 120 psi.
H
Heather PierceAug 22, 2025
How to fix Paslode Nail Gun fasteners not driving completely?
- L
  Lisa TaylorAug 22, 2025
  If your Paslode Nail Gun fasteners are not driving completely into the wood, adjust the work contacting element (retract length) and increase the air pressure, but do not exceed 120 psi.
L
Linda PinedaAug 27, 2025
What to do if Paslode 403606-10 Nail Gun won't drive fully at faster speeds?
- W
  William MeyersAug 28, 2025
  If your Paslode Nail Gun drives fasteners properly during normal operation but won't drive fully at faster speeds, increase the air flow to the tool by using larger air lines (3/8 inch ID minimum).
J
Jennifer ButlerSep 3, 2025
Why is my Paslode 403606-10 driving fasteners too deeply?
- C
  christopherbarnesSep 3, 2025
  If your Paslode Nail Gun is driving fasteners too deeply into the wood, adjust the work contacting element by extending its length and reduce the air pressure.

Summary

Safety Instructions

Personal Protective Equipment

Always wear hearing and eye protection devices when operating or working near tools.

General Operational Safety

Avoid horseplay, never assume tools are empty, do not clamp triggers, operate only on workpiece, and ensure work contacting element is functional.

Tool Handling and System Safety

Carry tool by handle, disconnect when not in use, use proper fittings, adhere to air pressure limits, and use recommended parts.

Air Systems

Tool Installation

Safety Before Installation

All tool operators and supervisors must read safety instructions before operating.

Fitting the Air Inlet

Remove plastic cap; install male pneumatic fitting that discharges air when disconnected.

Install Filter;Regulator;Lubricator

Tool Operation

Depth of Drive Adjustment

Adjust work contacting element to control fastener drive depth; loosen lock nut to move element.

Precision Placement Driving

Successive (Bounce) Driving

Tool Loading

Stapler Loading Procedures

Coil Nailer Loading Procedures

Strip Nailer Loading Procedures

6000 Series Strip Nailer Loading

Maintenance

Testing the Tool After Servicing

Tool Lubrication

Importance of proper air line lubrication; use recommended lubricants to prevent premature wear.

Maintenance Table

Operator Troubleshooting

Fastener Drive Issues

Troubleshooting issues related to fastener penetration depth, including driving too deep or not completely.

Fastener Jams and Tool Skips

Addressing common problems like fastener jams in the nose and tool skips during operation.

Air Leaks

Summary

Safety Instructions

Personal Protective Equipment

Always wear hearing and eye protection devices when operating or working near tools.

General Operational Safety

Avoid horseplay, never assume tools are empty, do not clamp triggers, operate only on workpiece, and ensure work contacting element is functional.

Tool Handling and System Safety

Carry tool by handle, disconnect when not in use, use proper fittings, adhere to air pressure limits, and use recommended parts.

Air Systems

Tool Installation

Safety Before Installation

All tool operators and supervisors must read safety instructions before operating.

Fitting the Air Inlet

Remove plastic cap; install male pneumatic fitting that discharges air when disconnected.

Install Filter;Regulator;Lubricator

Tool Operation

Depth of Drive Adjustment

Adjust work contacting element to control fastener drive depth; loosen lock nut to move element.

Precision Placement Driving

Successive (Bounce) Driving

Tool Loading

Stapler Loading Procedures

Coil Nailer Loading Procedures

Strip Nailer Loading Procedures

6000 Series Strip Nailer Loading

Maintenance

Testing the Tool After Servicing

Tool Lubrication

Importance of proper air line lubrication; use recommended lubricants to prevent premature wear.

Maintenance Table

Operator Troubleshooting

Fastener Drive Issues

Troubleshooting issues related to fastener penetration depth, including driving too deep or not completely.

Fastener Jams and Tool Skips

Addressing common problems like fastener jams in the nose and tool skips during operation.

Air Leaks

Paslode 403606-10 Specifications

General

Brand	Paslode
Model	403606-10
Category	Nail Gun
Language	English
