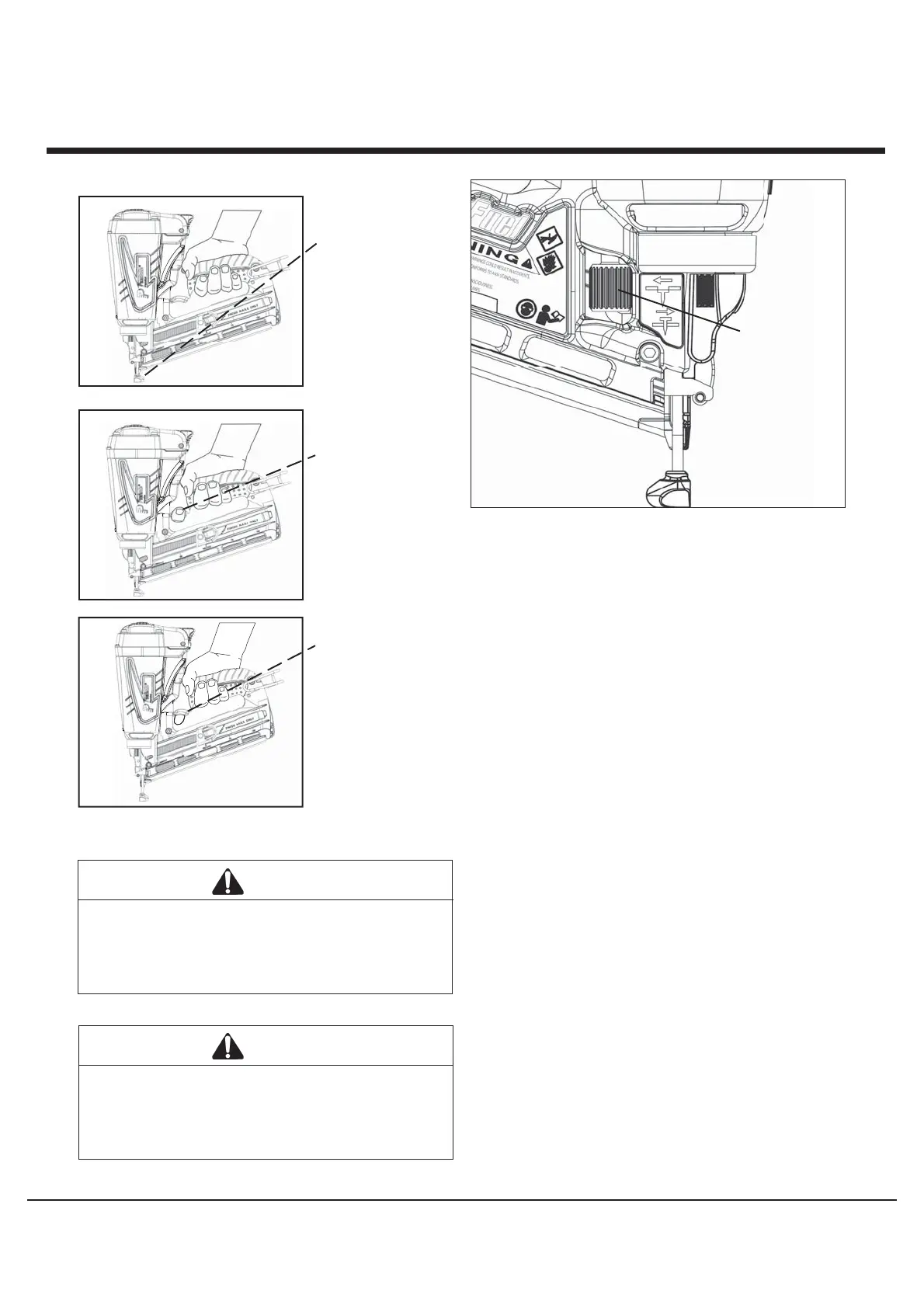

Preparing the Paslode Impulse 16 Gauge
Lithium-Ion Angled Bradder Operation
Depth of Drive Adjustment
Remove the battery before adjusting the depth of
drive.
Adjust the depth of drive by
turning the adjustment
wheel
as shown
by the arrows on the side of
the tool.
PRESS WORK –
CONTACT
ELEMENT
AGAINST THE
WORK SURFACE.
Fan motor starts,
fuel is injected
into combustion
chamber and
mixed with air
by the fan.
SQUEEZE
TRIGGER
Spark plug ignites
the fuel/air mixture
driving the piston
assembly down on
the fastener.
RELEASE
TRIGGER -
LIFT TOOL
Combustion
chamber opens.
Fan exhausts
hot gases and
cools internal
components.
Operation:
£
CAUTION
The work contact
element and nose may
become
hot
after prolonged or rapid use. If it becomes necessary
to
adjust
the
work
contact
element,
avoid
touching
with bare hands.
CAUTION
Turn
adjustment
wheel
in either
direction
This tool must be operated in a well ventilated environ-
ment, because the tool exhausts carbon monoxide.
Exposure
to
carbon
monoxide
may
cause
dizziness,
nausea or unconsciousness.
£
