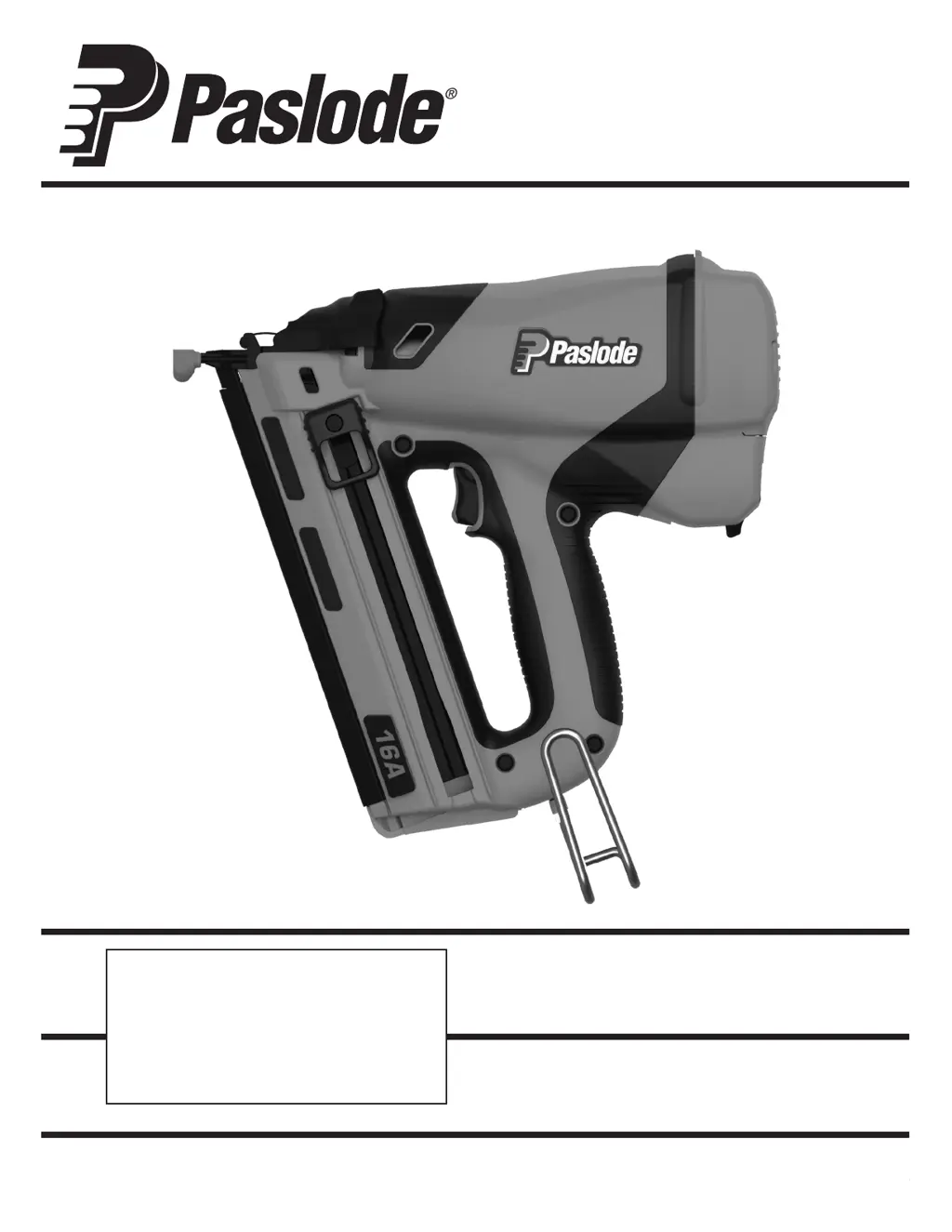

Paslode IM250A Li2 - User Manual

Other manuals for Paslode IM250A Li2

Cleaning Procedure12 pages

Questions and Answers

S
Susan MendezAug 17, 2025
Why Paslode IM250A Li2 fasteners do not drive fully?
- R
  regina64Aug 17, 2025
  If your Paslode Nail Gun drives fasteners, but not fully, it could be due to several reasons. First, the No Mar Probe may need adjustment. Another possibility is a low fuel cell, so check it and replace if necessary. Finally, there might be a loss of seal in the combustion chamber. To check for a leak, press the No Mar Probe against the workpiece for one minute and pull the trigger. If the fastener still doesn't drive, a leak requiring service is likely present.
A
Alison SullivanAug 20, 2025
What causes inconsistent fastener depth with Paslode IM250A Li2 Nail Gun?
- E
  Eric WellsAug 20, 2025
  If your Paslode Nail Gun sometimes over-drives and sometimes under-drives fasteners, the No Mar Probe is likely not adjusted properly for the material you're fastening. Adjust the No Mar Probe and readjust it as needed when the material's density or thickness changes.
S
Stanley DonovanAug 23, 2025
What to do if Paslode IM250A Li2 operates, but no fastener is driven?
- D
  Danielle MartinezAug 23, 2025
  If your Paslode Nail Gun operates but doesn't drive fasteners, or operates erratically with a green indicator light, several factors could be at play. - Ensure you're using fasteners that meet Paslode specifications. Check the Fasteners and Applications section for recommended types and sizes. - Make sure the follower is properly engaged behind the fastener strip, and clear any jams. Also, check the fuel cell. - Inspect the spark plug wire to ensure it's securely connected. - Clean the air filter with soap and water to remove debris, as a dirty filter can cause overheating. - The tool itself may be dirty, so give it a thorough cleaning.
K
Kathy JohnsonAug 26, 2025
What to do if Paslode IM250A Li2 Nail Gun fan doesn't run and indicator light is red?
- J
  jrobbinsAug 26, 2025
  If the fan of your Paslode Nail Gun isn't running and the tool indicator light is blinking or solid red, it could be due to a couple of reasons. The battery may not be charged, so try charging it. Alternatively, the battery terminals might be oily, dirty, or corroded; if so, clean them with a soft cloth.
J
James BlankenshipAug 28, 2025
Why Paslode IM250A Li2 Nail Gun driver blade did not return to up position?
- J
  Jacob SmithAug 28, 2025
  If your Paslode Nail Gun operated and drove fasteners, but the driver blade didn't return to the up position, it could be due to built-up dirt and debris on the driver blade or in the nose bore. Clean the driver blade and nose bore with a degreaser cleaner. Also, the tool may be dirty, so ensure you clean it thoroughly.
A
amygrayAug 31, 2025
Why Paslode IM250A Li2 will not cycle, but fan runs?
- N
  Nathan CollinsAug 31, 2025
  If your Paslode Nail Gun's fan runs and the indicator light is solid green, but the tool won't cycle, the issue might stem from a few causes. First, the fuel cell could be empty, so try replacing it. Another potential cause is the spark wire being out of the spark plug; remove the cap, check the spark lead, insert it into the spark plug, and replace the cover. Lastly, a dirty spark plug can prevent cycling, so clean the tool cylinder head. If no spark is generated, return the nail gun to an authorized Paslode dealer for service.
B
Brian BuckleySep 2, 2025
How to troubleshoot Paslode Nail Gun battery charging issues?
- L
  longamySep 3, 2025
  If the battery of your Paslode Nail Gun doesn't seem to charge, there are a couple of potential reasons. If the charger's indicator lights aren't working or the charger seems defective, try the battery in the tool after a full charge cycle. If the tool's indicator light is red, the charger isn't working correctly, so replace it or monitor charging time. It's normal for the battery to feel warm after charging. Alternatively, the battery may be damaged or its cycle life exhausted, in which case you should replace the battery.
S
Scott WaltonSep 5, 2025
Why Paslode Nail Gun No Mar Probe does not depress fully?
- C
  Christopher HallSep 5, 2025
  If the No Mar Probe on your Paslode Nail Gun doesn't depress fully and the tool won't operate, it could be due to a bent probe or debris in the track restricting its movement. Remove and inspect the probe, clean the track, and repair or replace the No Mar Probe as needed. Also, check if the lockout feature is engaged, and add a strip of nails if it is.
C
Carol WilsonSep 8, 2025
Why Paslode IM250A Li2 Nail Gun fan doesn't run and indicator light is solid red?
- L
  lindseymorrisSep 8, 2025
  If the fan on your Paslode Nail Gun doesn't run or runs slower than normal and the tool indicator light is solid red, the battery is likely discharged. Charge the battery to resolve this issue.
J
Jessica CollinsSep 12, 2025
What to do if Paslode Nail Gun charger gets hot and smokes?
- J
  Jason ParkSep 12, 2025
  If your Paslode Nail Gun charger gets hot, makes loud noises, or smokes during charging, or if the cord/plug gets hot, discontinue use immediately. Unplug the charger from the power source, replace it, and tag or dispose of the old charger to prevent accidental reuse.

Summary

Introduction and Warranty

Understanding the Operating Manual

Explains how to use the manual and user responsibilities for safe operation.

Paslode Cordless Warranty Details

Covers limited warranties, service promises, exclusions, and limitations for the cordless tool.

Overview of the Paslode Cordless 16 Gauge Angled Lithium-ion Finish Nailer

Nailer Description

Explains the tool's main parts: handle, motor, and magazine assemblies.

Key Specifications

Lists technical details like dimensions, weight, cycle rate, capacity, battery, and fuel.

Safety Instructions

Personal Protective Equipment

Emphasizes wearing eye and ear protection for safe operation of the nailer.

Safe Handling and Operation

Covers rules for tool handling, trigger control, maintenance, and avoiding misuse.

Safety Instructions

DANGER: Fuel Cartridge Flammability

Warns of explosion/fire hazards associated with fuel cartridges and flammable environments.

WARNING: High Temperature Exposure

Advises against exceeding 120°F (49°C) to prevent fuel/battery bursting.

WARNING: Ventilation and Carbon Monoxide

Highlights the need for ventilation due to carbon monoxide exhaust from the tool.

WARNING: Child Safety

Instructs to keep the tool, battery, and accessories away from children.

Safety Instructions

Hazard Awareness and Safe Work Practices

Covers checking for hidden hazards, maintaining footing, and keeping hands clear of work area.

Operator Qualification and Storage

Emphasizes using only qualified personnel and proper tool/fuel cartridge storage.

Battery Disposal Guidelines

Provides instructions for proper disposal of lithium batteries according to regulations.

Battery and Charging System

System Overview and Initial Charge

Explains the charging system and initial battery preparation steps for new batteries.

Critical Charging Warnings and Instructions

Details safety warnings, step-by-step charging, and prohibited actions during charging.

Charging Time Estimates

Provides estimated charging durations for new and discharged batteries.

Battery and Charging System

Battery Indicator Light Functionality

Describes the tool's indicator light for battery status and its meanings.

Battery Insertion and Removal Procedure

Provides steps for installing and removing the battery from the tool safely.

Fuel Cartridge

Fuel Cartridge Safety Warnings

Covers flammability, temperature hazards, and general handling precautions for fuel cartridges.

Fuel Cartridge Operation and Notes

Explains how the cartridge works and mentions altitude restrictions affecting performance.

Fuel Cartridge

Fuel Cartridge Best Use Date

Advises on the recommended usage period for fuel cartridges for maximum performance.

Fuel Cartridge Disposal Procedures

Outlines guidelines for the proper disposal of fuel cells according to regulations.

Fuel Cartridge

Correct Fuel Cell Loading Procedure

Provides a step-by-step illustrated guide for inserting the fuel cartridge into the tool.

Preparing the Paslode Cordless 16 Gauge Angled Lithium-ion Finish Nailer for Use

Fastener Selection and Loading

Details the correct fasteners and how to load them into the magazine.

Lockout Feature Explanation

Describes the function of the lockout feature to prevent blank firing and marring.

Weather Operation Guidelines

Provides instructions for using the nailer in hot and cold weather conditions.

Paslode Cordless 16 Gauge Angled Lithium-ion Finish Nailer Operation

Cold Weather Operation and Component Warnings

Continues cold weather advice and warns about hot components like the No Mar Probe.

Operational Cautions and Environmental Hazards

Covers moisture risks and carbon monoxide warnings for safe operation.

Depth of Drive Adjustment Guide

Explains how to adjust the nail depth setting for desired fastener seating.

Fasteners and Applications

Nailer Application Examples

Lists common uses for the finish nailer in various construction and trim applications.

Recommended Fasteners and Specs

Details fastener types, part numbers, lengths, and specific applications.

Servicing

User-Serviceable Tasks

Lists checks and procedures the user can perform for basic maintenance.

Fuel and Battery Status Checks

Explains how to check fuel levels and battery charge for operational readiness.

Jam Clearing Procedure

Provides instructions for clearing jammed fasteners from the tool.

Servicing

Air Filter Cleaning Instructions

Step-by-step guide to clean the air filter for optimal tool performance.

End-of-Workday Maintenance Routine

Outlines tasks for daily tool care, cleaning, and proper storage after use.

Available Tool Accessories

Lists optional accessories available for enhancing the Paslode cordless nailer.

Troubleshooting

Battery and Charger Troubleshooting

Addresses common problems with battery charging and the charger unit.

Fan Operation Troubleshooting

Solves issues related to the tool's fan not running or running slow.

No Mar Probe and Cycling Issues

Diagnoses problems with the No Mar Probe and the tool not cycling correctly.

Troubleshooting

Fastener Drive and Engagement Issues

Solves problems with fastener driving depth and follower engagement.

Power, Erratic Operation, and Blade Return

Addresses power loss, erratic behavior, and driver blade return issues.

Service Promise Information

Details the 2 Year Service Promise for tool repairs and maintenance.

Paslode IM250A Li2 Specifications

General

Power Source	Battery and Fuel Cell
Battery Type	Lithium-ion
Battery Voltage	7.4V
Battery Capacity	2.1 Ah
Nail Length Range	1-1/2" to 2-1/2"
Charge Time	1 hour
Fuel Cell Type	Paslode Fuel Cell
Magazine Capacity	100 nails
