9
WARNING
CHEMICAL/EXPLOSION
HAZARD
Read ALL instructions be-
fore charging or using bat-
tery. Failure to follow ALL
instructions may result in
fire, severe burns, or re-
lease of toxic materials.
Battery and Charging System
Charging Instructions
1.
2. Remove the battery from tool or case and insert ter-
minals down into charger. The red light will come on
indicating that the battery is charging and the green
light will go out.
3.
After charging is complete, the red light will go out
and the green light will come on, indicating that the
battery is fully charged. The charger will keep the
battery at full charge until it is removed.
4.
Unplug the wall mount unit from the charger and
remove the wall mount unit from the 240V AC outlet.
CHARGING TIMES:
First charge (new battery)
1 hour
Discharged Battery 5 minutes to 1 hour
Do Not:
1. Charge battery outdoors or in temperatures
below 5°C (40°F).
2. Allow metal objects to come in contact with
battery terminals.
3. Puncture or attempt to open battery case or
cells.
4. Store battery where it will be subjected to
temperatures above 49°C (120°F).
5. Incinerate battery.
6. Use a defective battery charger, one that
over-heats and/or smokes when plugged in.
7. Immerse the battery in water.
Note
Important Charging Notes:
Remove wall mount unit from the tool case and plug
it into a 240V AC outlet. Set the charger base on a
stable surface and insert wall mount transformer
unit’s round plug into the plug receptacle on the
bottom
of the
charger (see picture). A green light
indicates power is on and charging system is ready.
If battery is completely discharged, the red light and
the green light may alternate back and forth for up to
20 minutes. This safety feature slowly recharges the
battery until it is ready to accept the full charging
current. If the red and green lights continue to alter-
nate after 20 minutes, the battery may be damaged.
The Paslode
Impulse Angled Bradder includes two
rechargeable Lithium-Ion (Li-Ion) batteries with a
unique
charging system. The charging system is
unique to Paslode Li-Ion batteries.
The first step in
preparing a new tool for operation is to fully
charge
the battery. New batteries are shipped partially
discharged and must be charged prior to first use.
Batteries will take 5 minutes to 1 hour (time will be
dependant on the amount of
discharge).battery

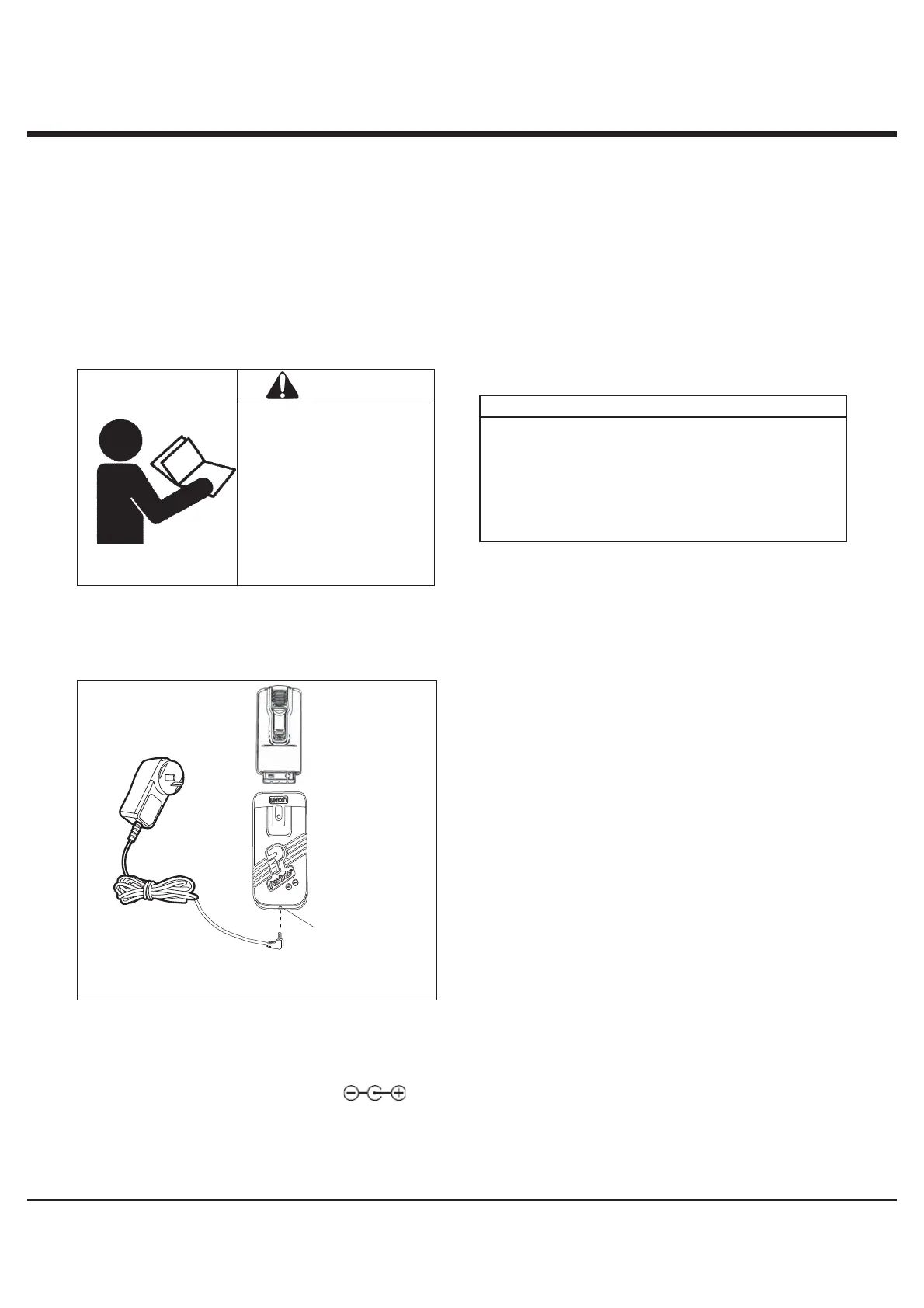

IMPULSE BATTERY CHARGING SYSTEM
AC-DC Adapter
Charger Base
DC Plug
Battery
Plug Receptacle
Charging System Accessories:
Battery Charger Kit ..........Part No. B20543B
Wall Mount Transformer... Part No. B20543C
Automotive Adapter.......... Part No. B20543E
TECHNICAL DATA
Impulse Adapter (AC-DC)
Australia/New Zealand
Impulse Charger Base
Impulse Battery
7.4 VDC, 1250mAh, Lithium-ion
tupnI
240V, 50HZ
12VDC
Output
Polarity
12VDC, 1.8A
Battery Disposal:
The Paslode batteries contain lithium and should
be disposed of responsibly.
