Console Replacement Instructions
Central Unit Preparation (Not required when replacing the 050-350-061-189 console). Do not remove
existing cable between console and central unit for installation of the
050-350-061-355 console.
1. Remove existing console cable and strain relief from the central unit and install PG13.5 hole plug
using the existing nut. Remove existing PG11 hole plug. Install new PG11 strain relief using the
existing nut. (Fig. 13). For 24 350 06 2766 central unit secure the PG11 stain relief with PG13.5-11
reducer and transfer the ferrite filter from the removed PG13.5 strain relief to the PG11 strain relief.
Reference Fig. 5a.
Cable Assembly Installation (24 350 06 2766 only)
1. Attach inner shield to grounding clamp on the
connection board per diagram. (Fig. 14 and 14a)
2. Install 1/8” and ¼" female terminals on wire
ends and attach to connection board and diode
assy per electrical schematic. (Fig. 15)
3. Reinstall central unit lid and any grounding wires
that were removed.
Grounding of Inner Shield (24 350 06 2766 only)
Inner shield is grounded on connection board.
Cut inner shield back to approximately 1.2 inch. Then fold inner shield back to inner jacket, so the inner
shield is 0.6 inches in length.

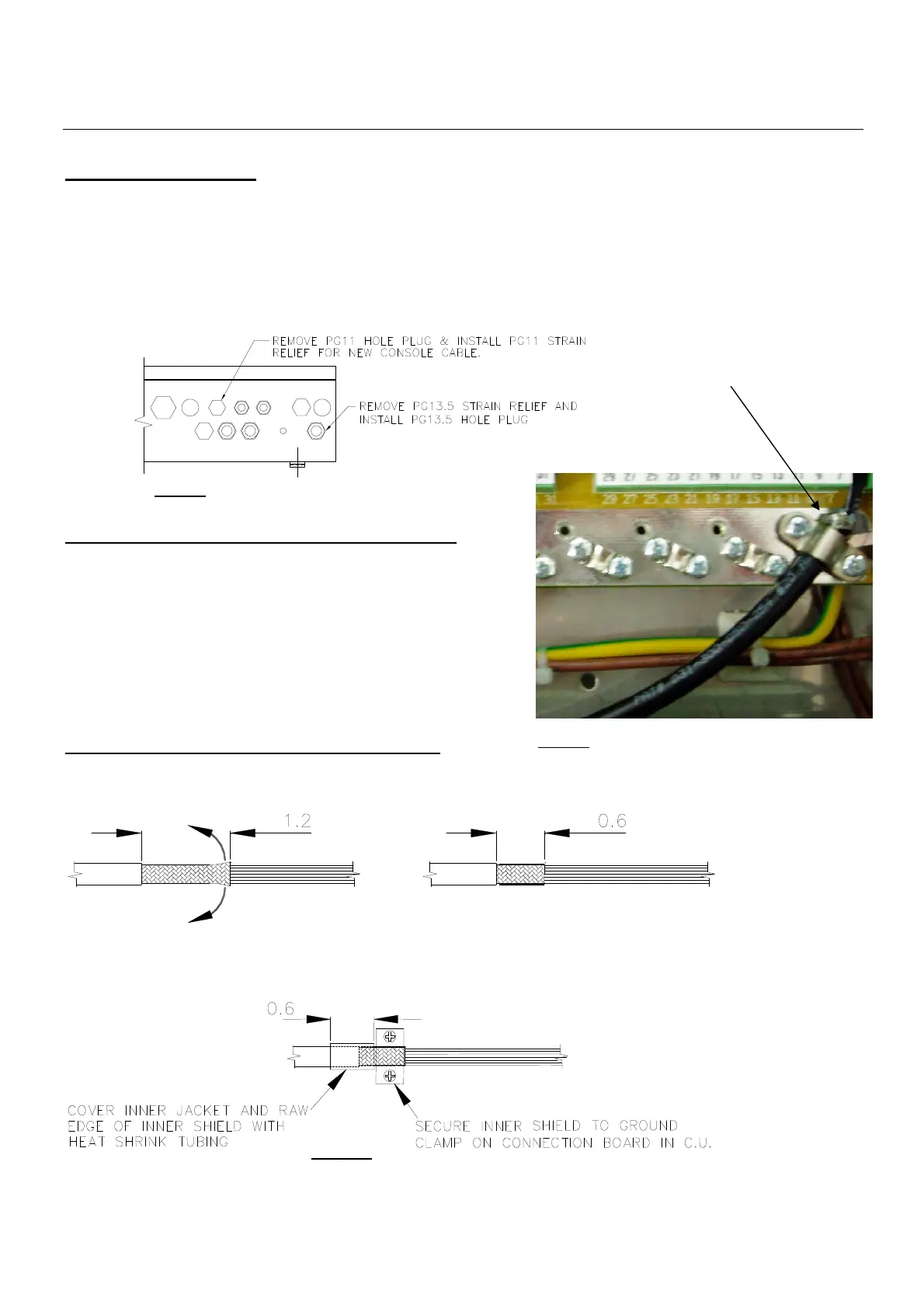

Fig. 13
Fig. 14
Fig. 14a
