- 7 - PATON ECO DC MMA
Recommended length of power welding cables when welding:
Maximum
current
Cable length, m
(one way)
Cross-section
area, sq. mm
Cable brand
not more than 160
А
1 ... 4
8
KG 1x8
2 ... 5
10
KG 1x10
3 ... 8
16
KG 1х16
not more than 200
А
1 ... 4
10
KG 1х10
2 ... 6.5
16
KG 1х16
3 ... 10
25
KG 1х25
not more than
250A
1 ... 6
16
KG 1х16
2 ... 9
25
KG 1х25
3 ... 13 35 KG 1х35
up to 315A
1 ... 9 25 KG 1х25
2 ... 12
35
KG 1х35
3 ... 18
50
KG 1х50

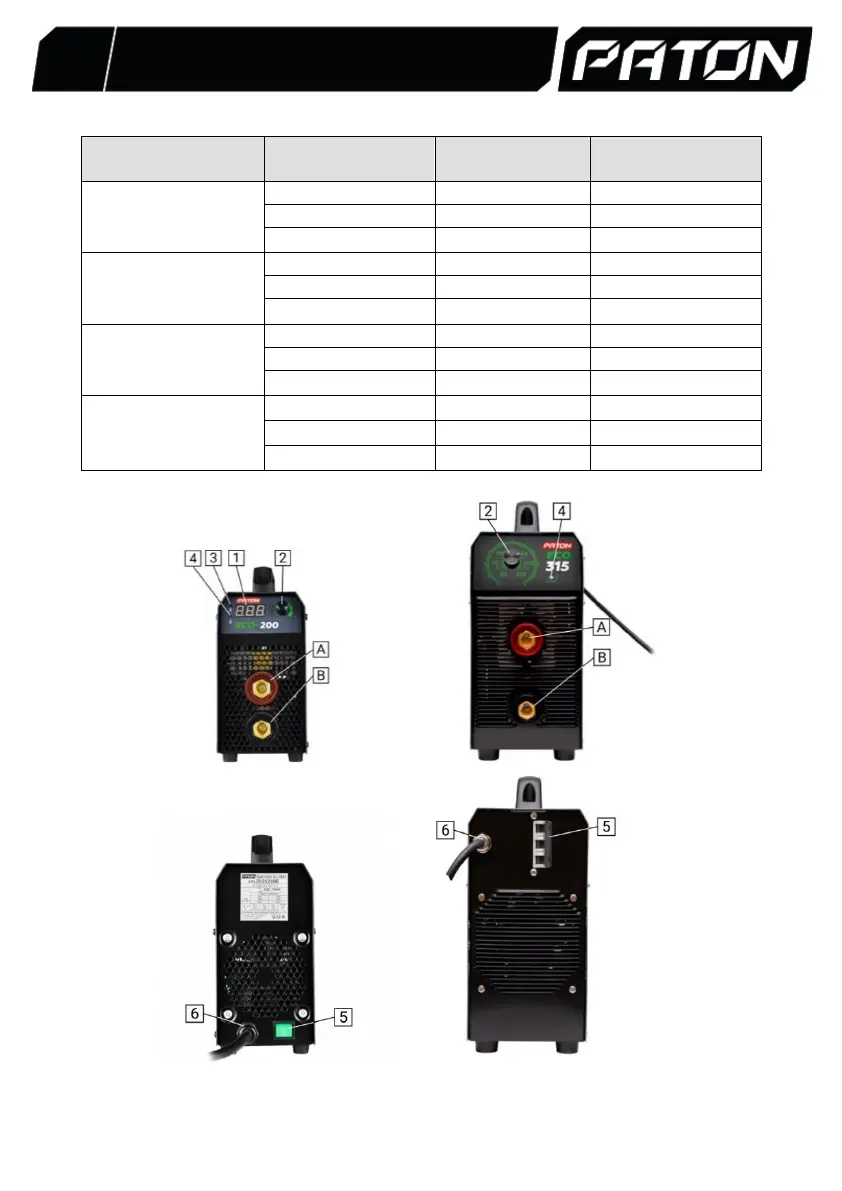

Fig. 1. Control elements and indicators
