Paul CLIMOS F 200 Basic - Page 26

Replacement of the fan
26

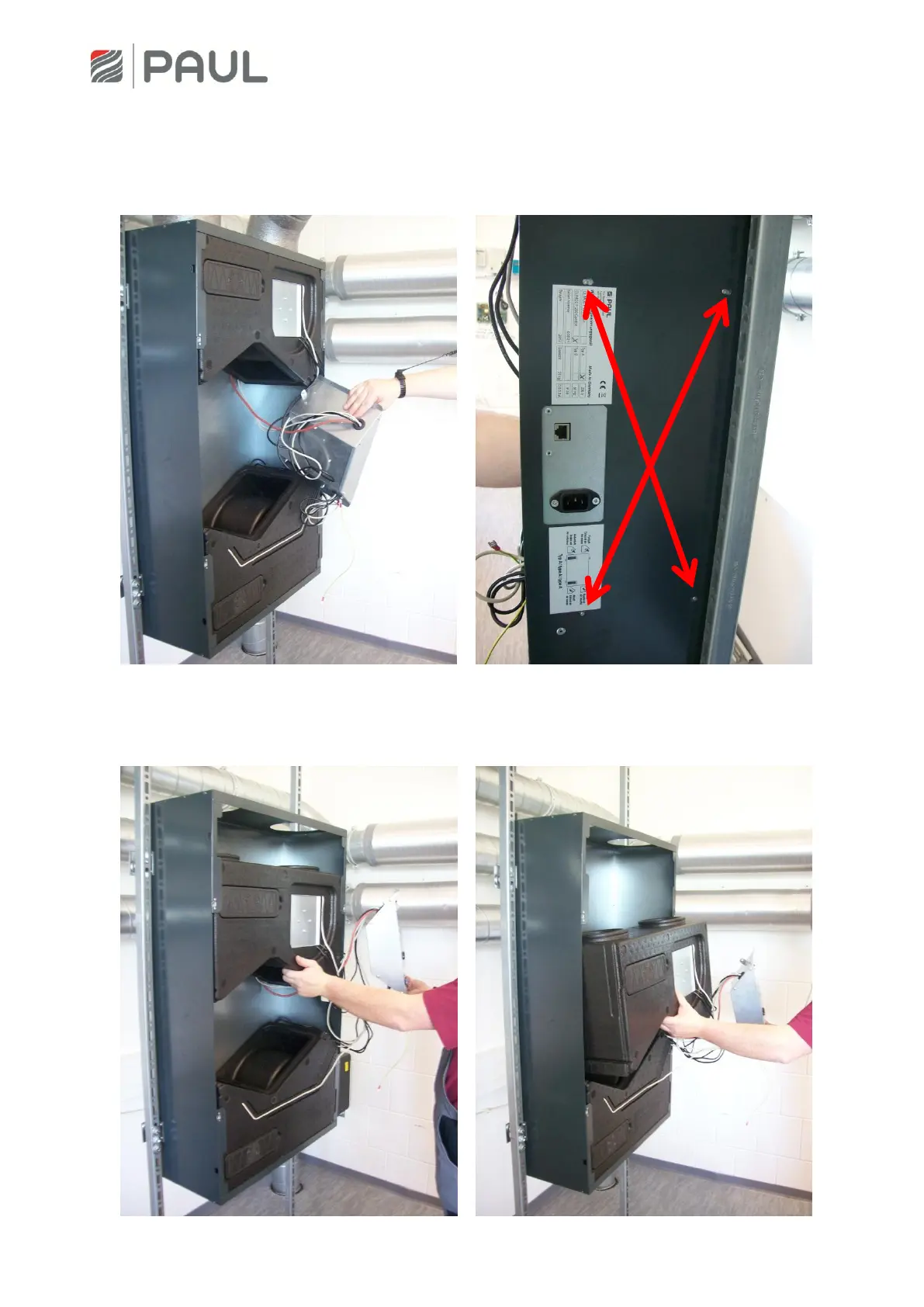

9. Withdraw the control system casing.
To do this, push the control system casing in the direction of the rear panel by approx. 3 - 5 mm in
such a way that the press-in keyhole fasteners unlatch from the 4 keyholes of the casing wall.
10. Pull the fan box with the fan to be changed in direction center of the device and remove it out of the
device.
