Principal configuration of the system
4
2 Principal configuration of the system
The basic configuration of the system is universally valid and does not represent the system
outline of the project-related ventilation plant! It is designed for representation of the plant-
specific system structure for sensors and ventilation equipment.

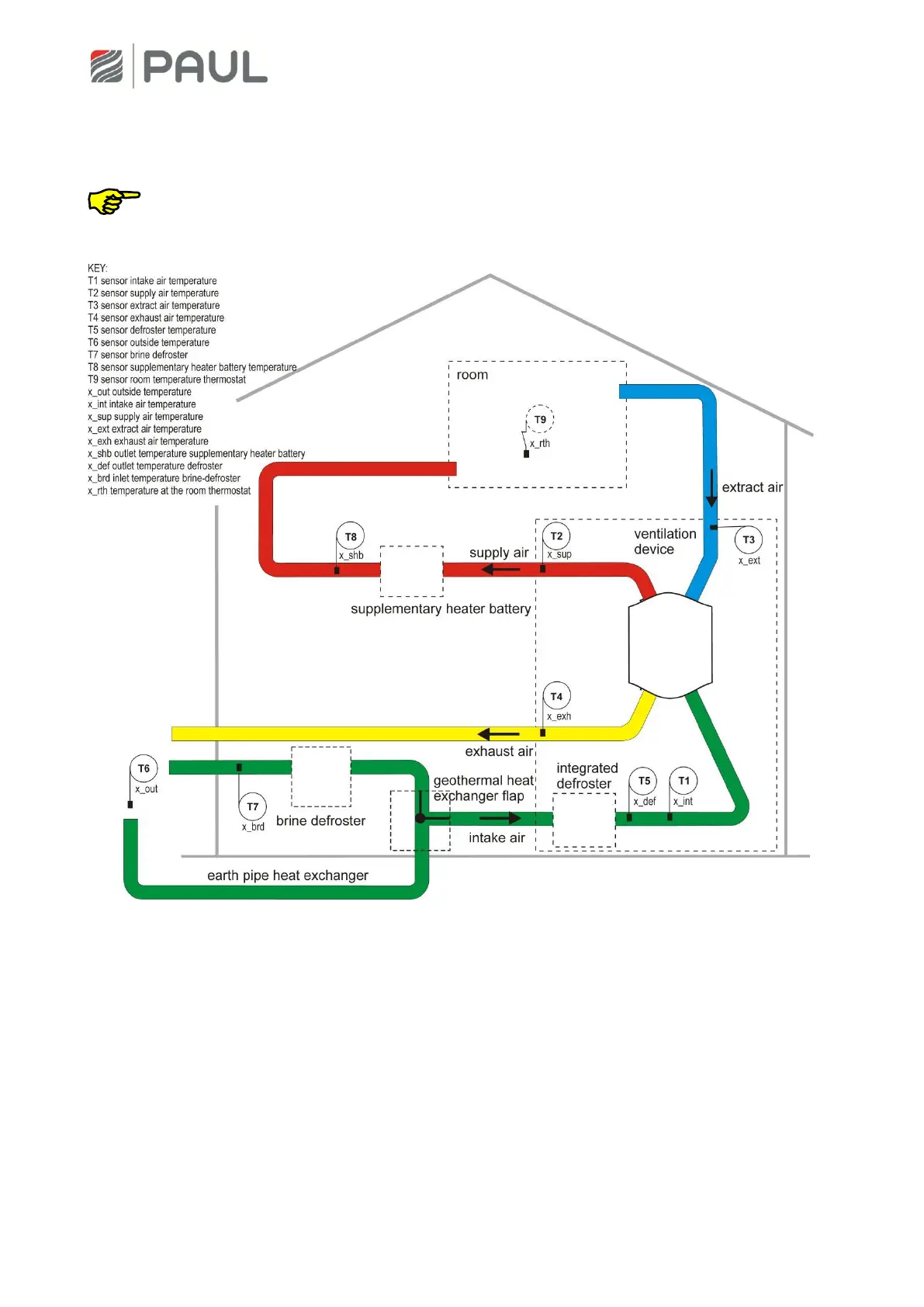

System outline CLIMOS with sensors and ventilation equipment
