Paul CLIMOS F 200 Basic - Page 51

Replacement of the temperature sensor
51

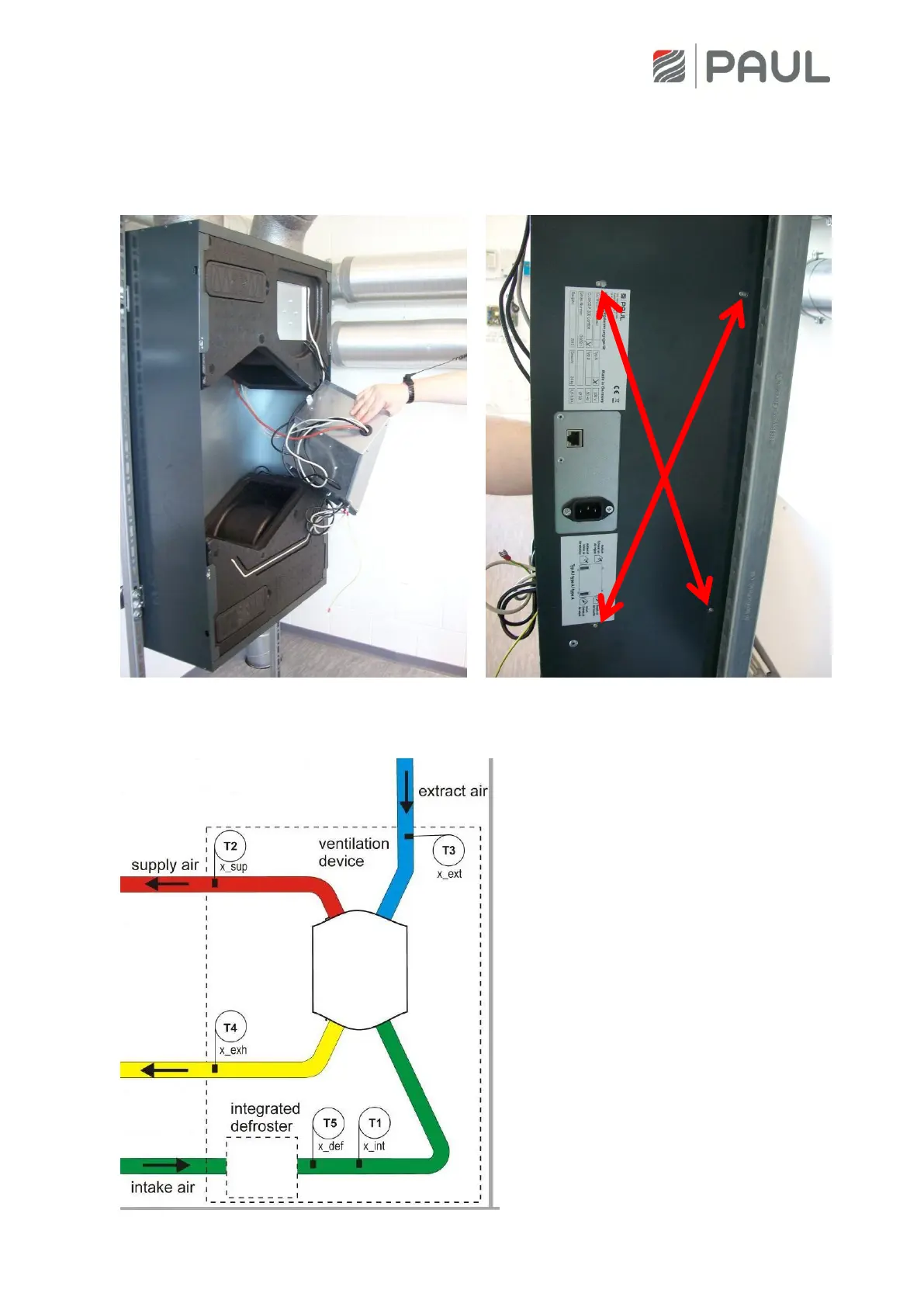

9. Withdraw the control system casing.
To do this, push the control system casing in the direction of the rear panel by approx. 3 - 5 mm in
such a way that the press-in keyhole fasteners unlatch from the 4 keyholes of the casing wall.
10. Detail of the system outline with T1 to T5
