36
Table 11 – Electrical Data
TWO---STAGE PWM FURNACES
UNIT
SIZE
V O LT S ---
H E R T Z ---
PHASE
OPERATING VOLTAGE
RANGE*
MAXIMUM
UNIT
AMPS
UNIT
AMPACITY#
MINIMUM
WIRE
SIZE
AWG
MAXIMUM
WIRE LENGTH
FT (M)}
MAXIMUM
FUSE OR CKT
BKR
AMPS{
Maximum* Minimum*
30040 1 1 5 --- 6 0 --- 1 127 104 7.5 10.3 14 36 (10.9) 15
42060 1 1 5 --- 6 0 --- 1 127 104 10.9 14.5 14 25 (7.6) 15
48080 1 1 5 --- 6 0 --- 1 127 104 10.9 14.5 14 25 (7.6) 15
60080
1
1 1 5 --- 6 0 --- 1 127 104 14.7/11.3 19.3/14.9 12/14 29/24 (8.8/7.3) 20/15
60100
1
1 1 5 --- 6 0 --- 1 127 104 14.7/11.3 19.4/15.0 12/14 29/24 (8.8/7.3) 20/15
66120
1
1 1 5 --- 6 0 --- 1 127 104 14.7/11.3 19.4/15.0 12/14 29/24 (8.8/7.3) 20/15
* P ermissible limits of the voltage range at which the unit operates satisfactorily.
# Unit ampacity = 125 percent of largest operating component’s full load amps plus 100 percent of all other potential operating components’ (EAC, humidifier,
etc.) full load amps.
{Time---delay type is recommended.
}Length shown is as measured one way along wire path between furnace and service panel for maximum 2 percent voltage drop.
1
Low Amp K it (KGAPC0101ECM) allows select fu rnaces to be installed with a 15 Amp Breaker and 14 AWG wire within the listed wire length. Affected data
shown as Default Value/Value with Lower Amp Kit.
A12226

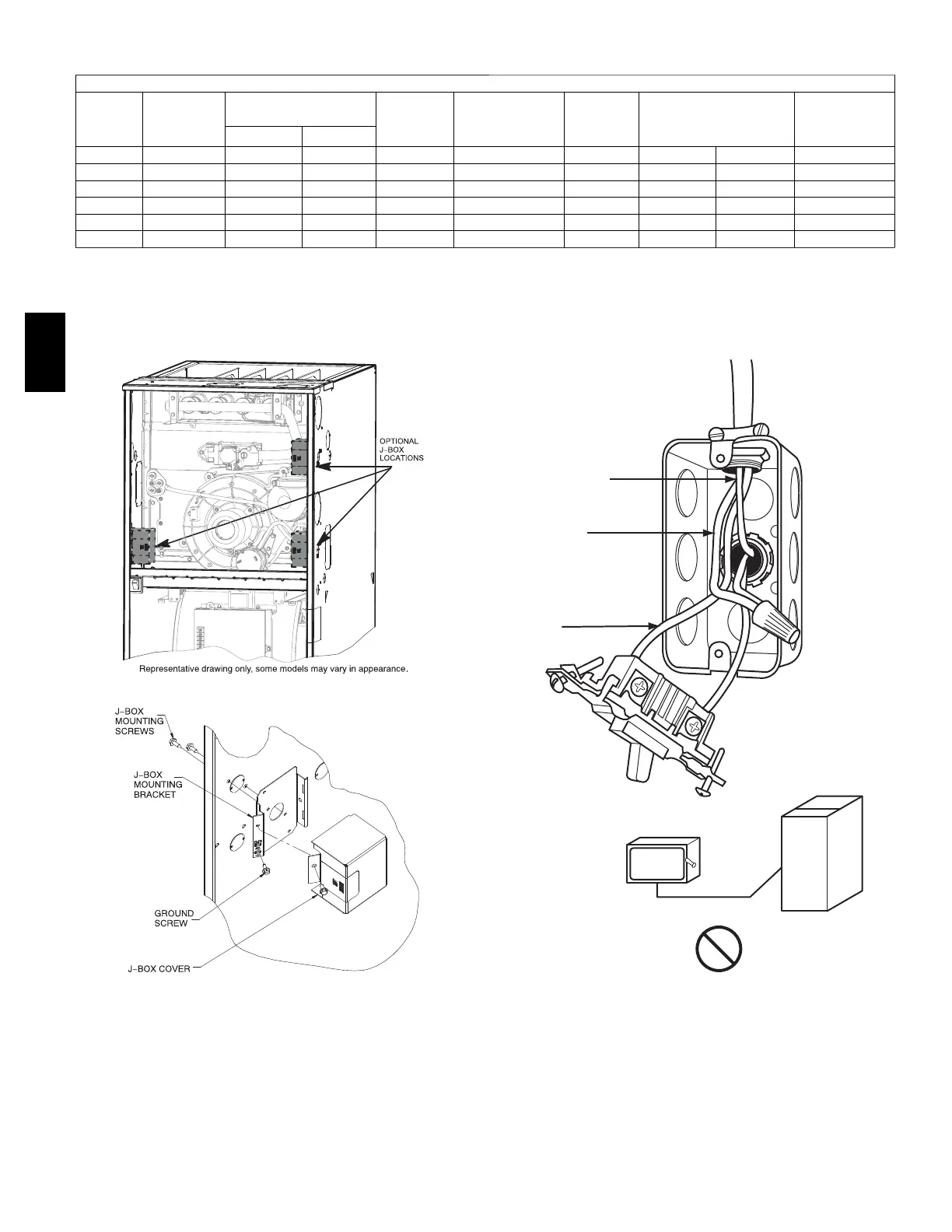

Fig. 35 -- Installing J--Box (When Used)
COPPER
WIRE ONLY
ELECTRIC
DISCONNECT
SWITCH
ALUMINUM
WIRE
GROUND
NEUTRAL
LINE VOLTAGE
A11146
Fig. 36 -- Field--Supplied External Electrical Box on Furnace
Casing
PG96VAT
