Payne PG96VTA - Page 8

8
A180203
FURNACE SIZE
A B C D
SHIP WT.
LB (KG)
CABINET WIDTH OUTLET WIDTH
BOTTOM INLET
WIDTH
AIR INTAKE
30040A 14--- 3/16 (361) 12--- 1/2 (319) 12--- 9/16 (322) 7--- 1/8 (181) 123 (55.8)
36040B 17--- 1/2 (445) 15--- 7/8 (403) 16 (406) 8--- 3/4 (222) 133 (60.3)
36060A 14--- 3/16 (361) 12--- 1/2 (319) 12--- 9/16 (322) 7--- 1/8 (181) 132 (59.9)
42060B 17--- 1/2 (445) 15--- 7/8 (403) 16 (406) 8--- 3/4 (222) 139 (63.0)
48080B 17--- 1/2 (445) 15--- 7/8 (403) 16 (406) 8--- 3/4 (222) 147 (66.7)
60080C 21 (533) 19--- 3/8 (492) 19---1/2 (495) 10--- 1/2 (267) 156 (70.7)
60100C 21 (533) 19--- 3/8 (492) 19---1/2 (495) 10--- 1/2 (267) 170 (77.1)
66120D 24--- 1/2 (622) 22--- 7/8 (581) 23 (584) 12--- 1/4 (311) 190 (86.2)

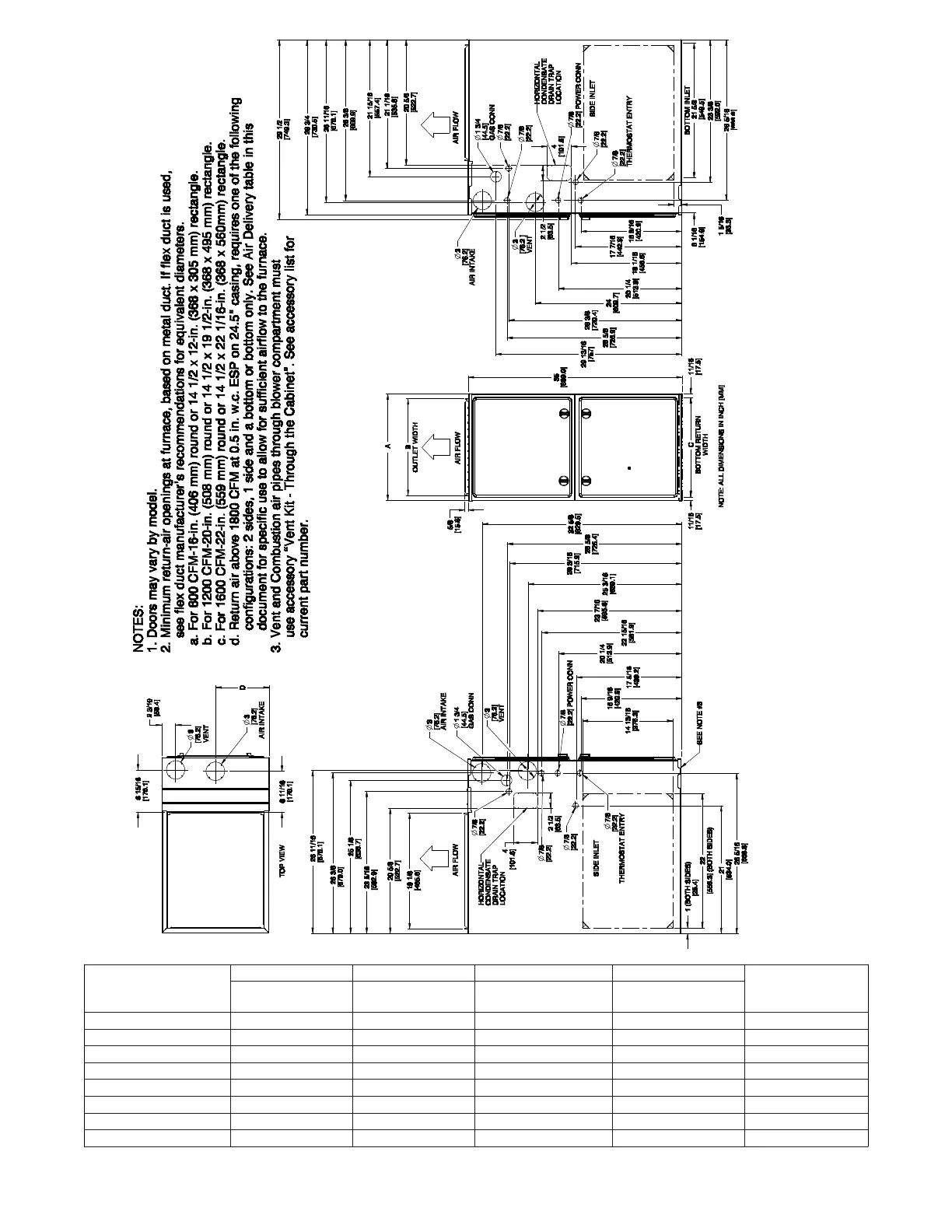

Fig. 5 -- Dimensional Drawing
