NMS044 Reference Manual Completing System Assembly 10
2.1 Completing System Assembly

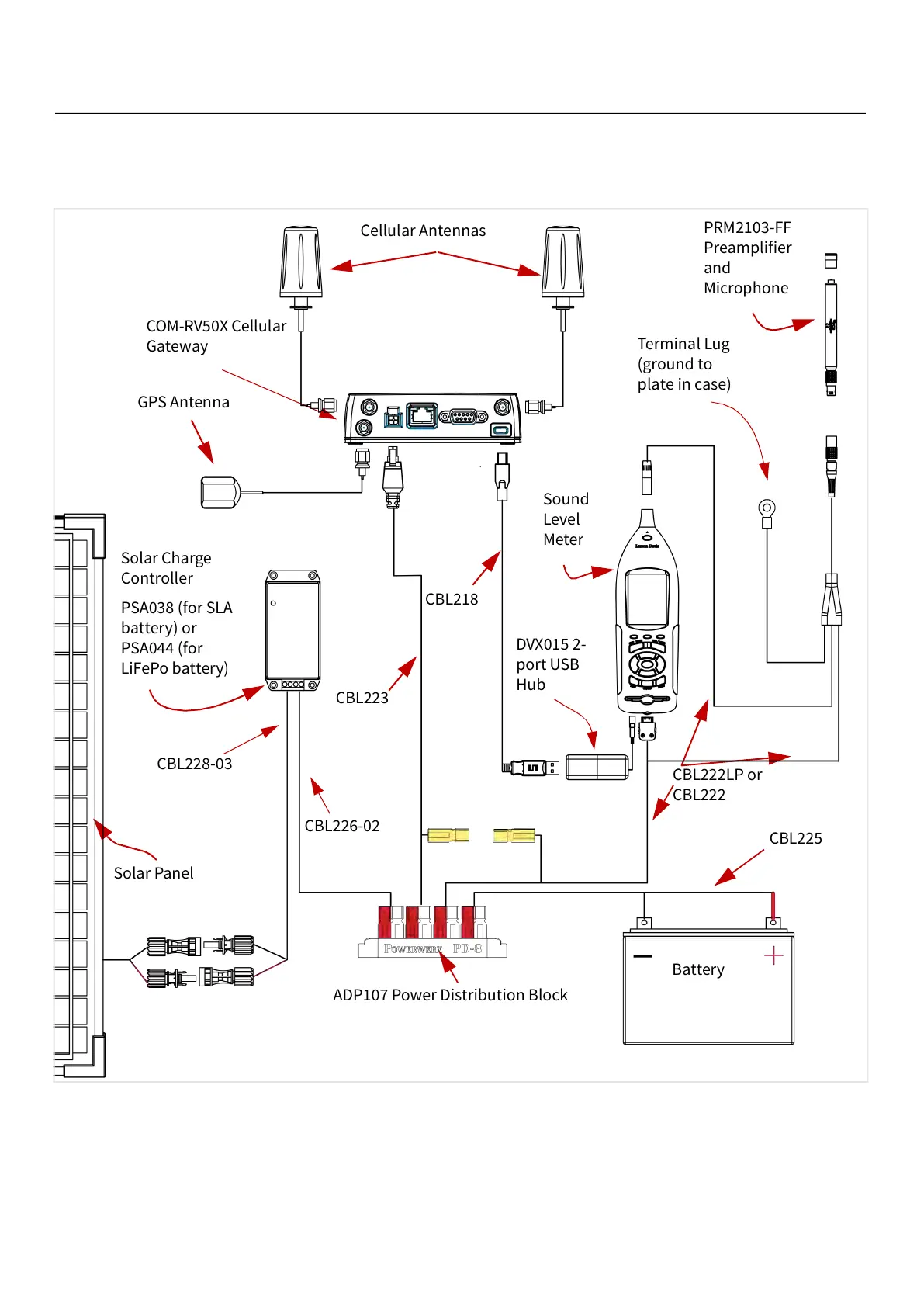

Figure 2-1 System Wiring Overview is shown here as reference for all system connections.
Figure 2-1 System Wiring Overview
PRM2103-FF
Preamplifier
and
Microphone
Cellular Antennas
Sound
Level
Meter
Solar Charge
Controller
PSA038 (for SLA
battery) or
PSA044 (for
LiFePo battery)
COM-RV50X Cellular
Gateway
GPS Antenna
ADP107 Power Distribution Block
Solar Panel
CBL222LP or
CBL222
CBL223
Terminal Lug
(ground to
plate in case)
Battery
CBL226-02
CBL225
CBL228-03
DVX015 2-
port USB
Hub
CBL218
