NMS044 Reference Manual Installing the Pole and EPS2116 24
3.3 Installing the Pole and EPS2116
Step 1. Remove the protective caps from the top and bottom of the telescoping pole.
Step 2. Put the guy wire ring on the top of the pole, and position the signal cable
between two mount points on the guy wire ring.
Step 3. Place the EPS2116 on the top of the pole; and hold it still, while twisting the
pole to screw the two pieces together as shown in Figure 3-6.

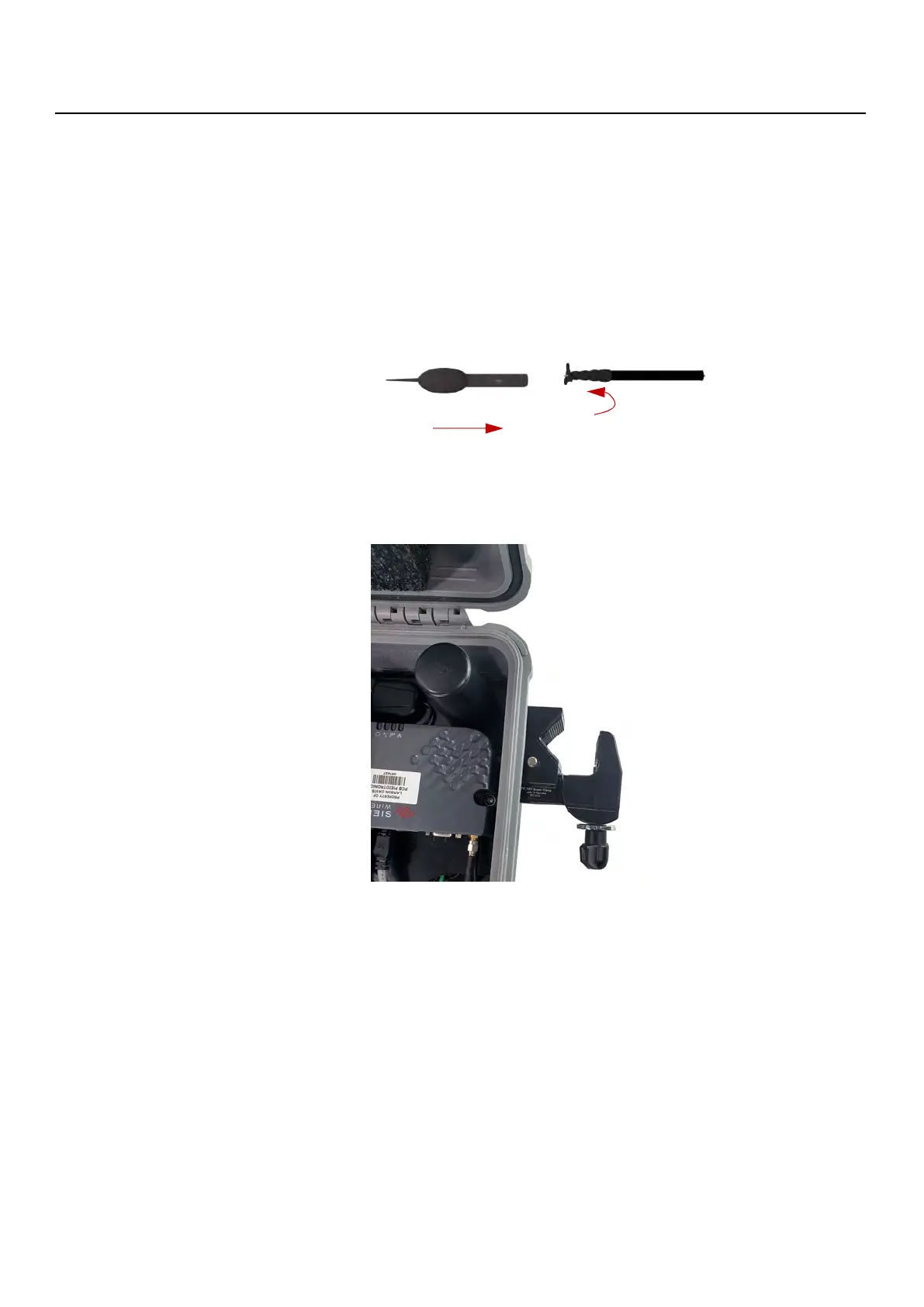

Figure 3-6 EPS2116 to Telescoping Pole
Step 4.
Adjust the pole clamp screw, so the clamp is open to a 90° angle, as shown in
Figure 3-7.
Figure 3-7 Pole Clamp is Ready to Receive the Pole
