NMS044 Reference Manual Assembling the EPS2116 and Preamplifier 23
Step 3. Hold the EPS2116 windscreen and birdspike together, and unscrew the top
section from the bottom section.
Step 4. Reassemble the top and base together. The EPS2116 should now appear in two
pieces, as shown in Figure 3-4.

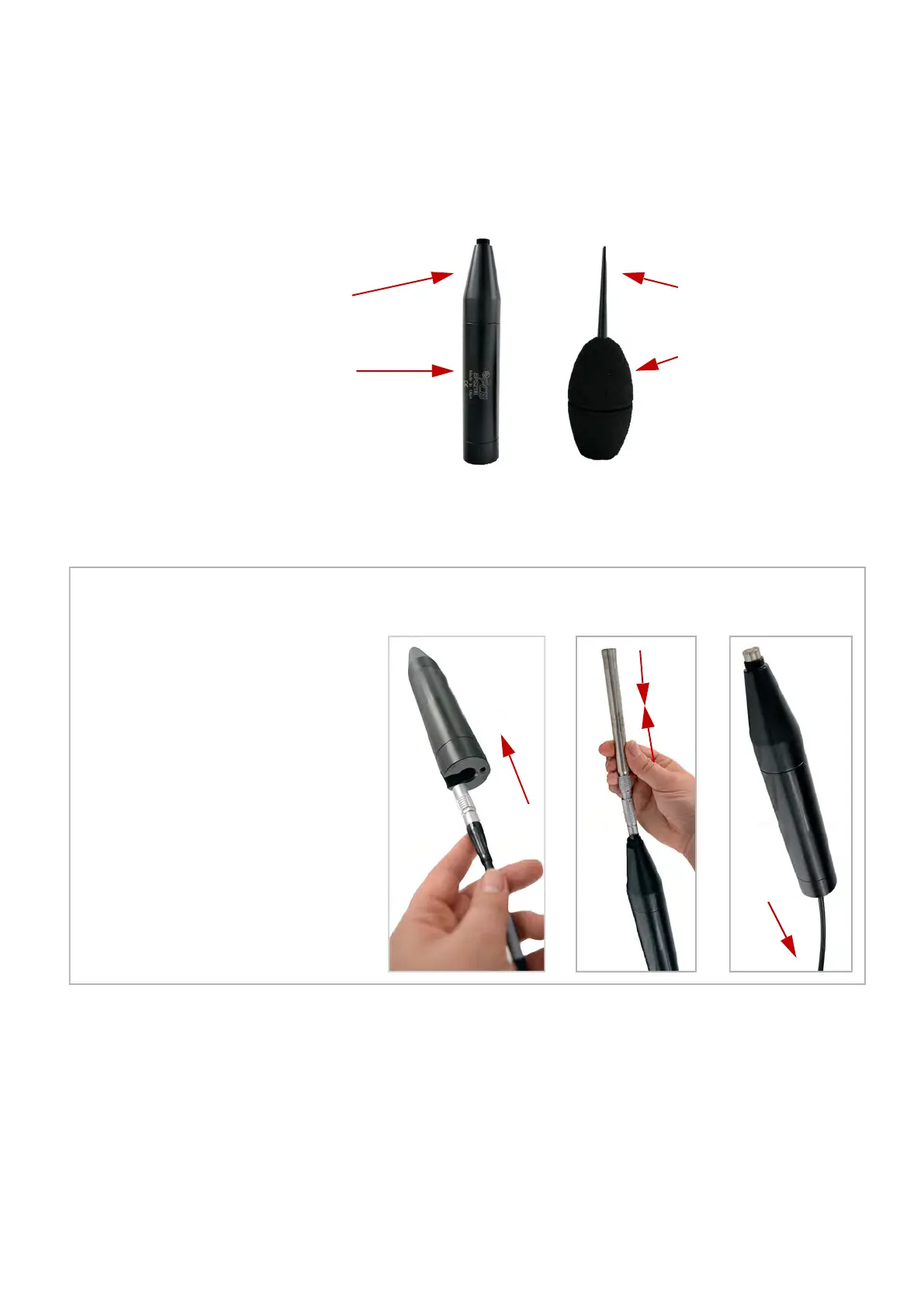

Figure 3-4 EPS2116 Separated
Step 5.
Complete the steps shown in Figure 3-5.
Figure 3-5 EPS2116 Threading
Step 6.
Replace the birdspike and windscreen on top of the EPS2116.
CAUTION If you need to remove the windscreen, do not pull it off the birdspike
with an upward motion. First, unscrew the birdspike by twisting its top and
then pull the windscreen down over the bottom of the unscrewed birdspike.
LEARN MORE To learn more about the assembly of the EPS2116 refer to the
EPS2116 Reference Manual.
Top
Base
Birdspike
Windscreen
a. b. c.
a. Thread the CBL222-08 cable
upward through the base and top.
b. Align the red dot on the bottom of
the preamplifier to the red dot on
the top of CBL222-08, and gently
push together until mounted.
c. Gently ease the cable back down
until the microphone is seated at
the top of the EPS2116.
