NMS044 Reference Manual Assembling Travel Packs 22
3.1 Assembling Travel Packs
Assemble all components in the recommended 3 travel packs. See Figure 3-2.

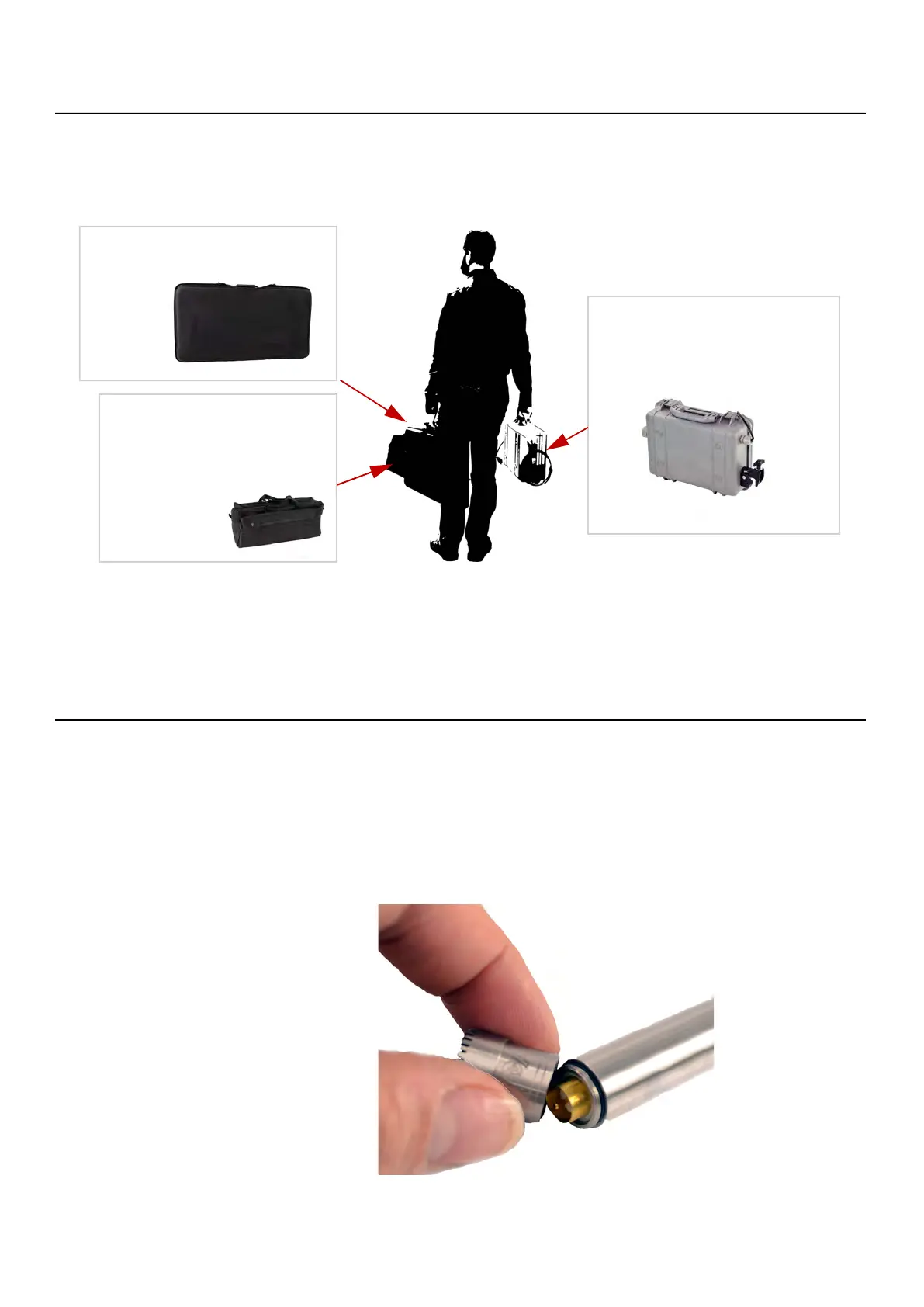

Figure 3-2 NMS044 Deployment Travel Packs
3.2 Assembling the EPS2116 and Preamplifier
Step 1. Remove rubber cap from top of preamplifier.
Step 2. Place microphone on preamplifier, then gently screw together until hand tight.
Set aside. (You can store these connected, so you don’t need to repeat this step
with every deployment.)
Figure 3-3 Connecting Microphone and Preamplifier
Solar Panel in
case
EPS2116, telescoping
pole, preamplifier, and
microphone, guy wire
ring, and stakes
NMS044 case with battery,
Model 831C SLM, RV50X
gateway, charge controller
antennas, and all connections
To Next Page
