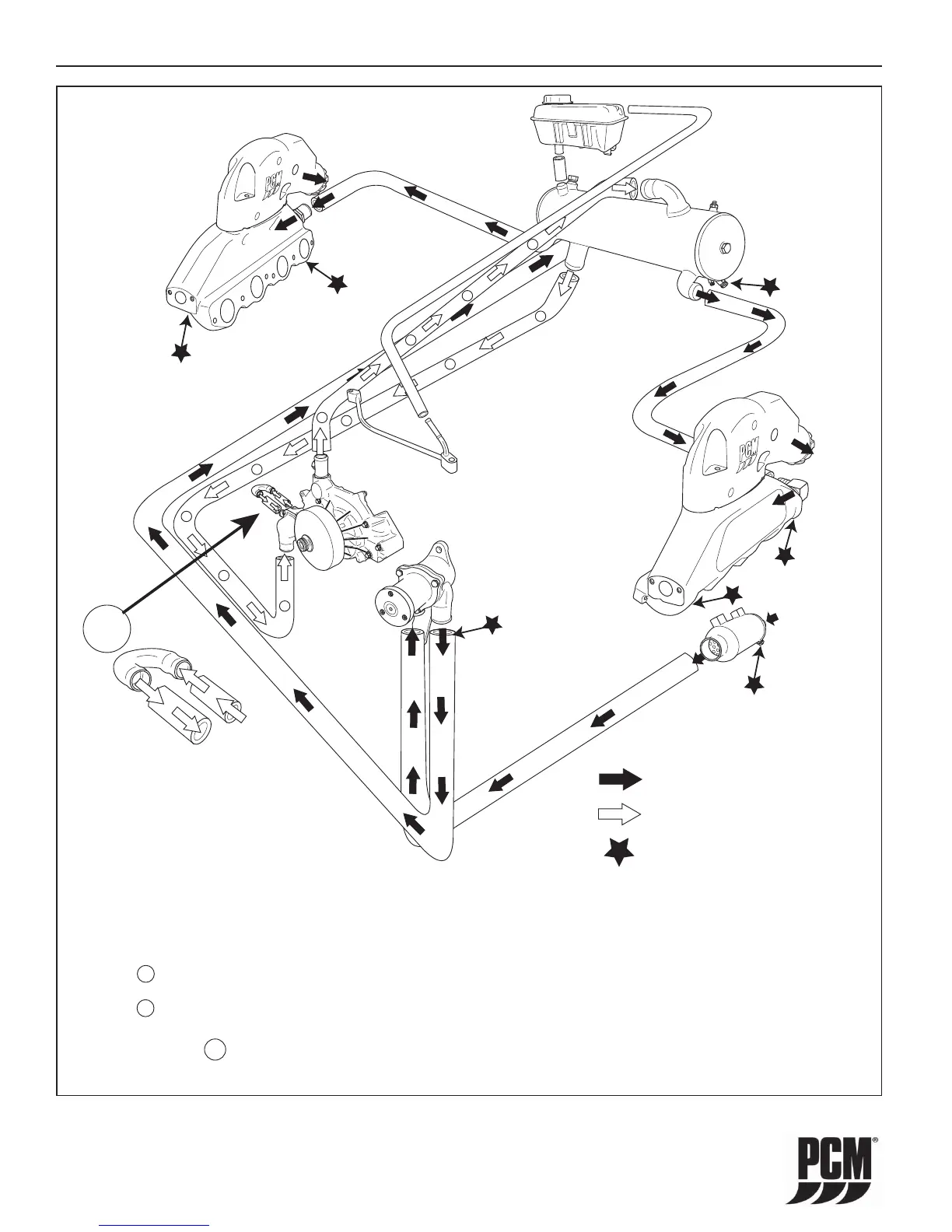

Figure 15-3 Fresh-Water Cooling System (6.0L)
WATER FLOW DIAGRAMS - 15
= RAW WATER FLOW
NOTE: Location is the cooling system bypass. This bypass hose MUST NOT be
tampered with. DO NOT hook u p any external accessories (i.e. heaters, hot water
tanks) at this location.
IMPORTANT: Accessory (i.e. heater, hot water tank) Hook Up
A tee may be inserted anywhere in the specified hose for most
appropriate routing.
HOSE 1 - Water OUT to heater or hot water tank
HOSE 2 - Water RETURN from heater or hot water tank
= FRESH WATER FLOW
A
A
2
1
1
1
1
2
2
2
2
2
2
= 7 Drain Locations
Remove Hose from
raw water pump and
drain hose
completely
3
2
4
5
6
7
1
