PCS 4LHD User Manual

Page 22
Ph: 804.227.3023
10511 Old Ridge Rd. Ashland, VA 23005
4LHD/4LHDX Application Manual
Powertrain Control Solutions
REV 1.1
RevSheet 8124214609

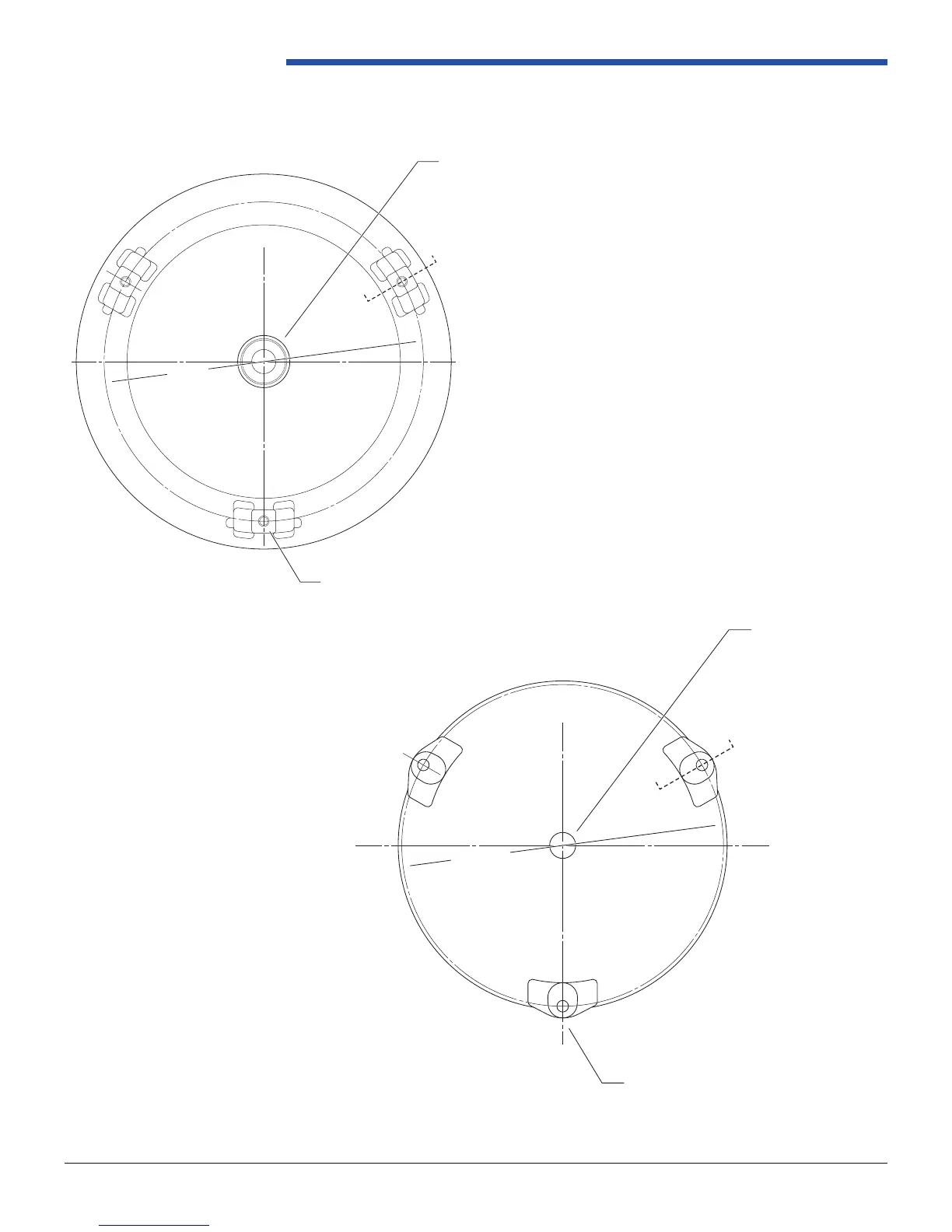

Figure 4.2.4-3 258 mm Torque Converter Attachment Features
258 mm CONVERTER LUG TO REAR FACE OF ENGINE
22.09mm ± 0.83
(ENGINE OFF)
SECTION A - A
➤ ➤
ENGINE
BLOCK
A
A
CONVERTER
PILOT
Ø20.94 ± 0.02mm
Ø 247.65mm
M10 x 1.5 - 6H THD THRU LUG
3 HOLES
➤
➤
➤
➤
➤
➤
Figure 2.1.1-5: 258 mm Torque Converter Attachment Features
Figure 2.1.1-4 300 mm Torque Converter Attachment Features
RevSheet 8324214609
A
A
300 mm CONVERTER LUG TO REAR FACE OF ENGINE
21.667mm±1.181
(ENGINE OFF)
CONVERTER
PILOT
Ø43.234±
281.0mm
M10 x 1.5-6H THD THRU
3 HOLES
SECTION A - A
➤
➤
➤
➤
➤ ➤
➤
➤
ENGINE
BLOCK
.016
.015
mm
Figure 4.2.4-5 300 mm Torque Converter Attachment Features
