Page 60
Ph: 804.227.3023
10511 Old Ridge Rd. Ashland, VA 23005
4LHD/4LHDX Application Manual
Powertrain Control Solutions
REV 1.1
Shifter Specications
Column Size 38mm, 45mm, 55mm
Neutral Lock none, drop-down
Speeds 2, 3, 4, and 6
Lights -
Wiper Speeds -
Buttons Horn, Wash, Drop- Down
Connectors integral Packard, integral Deutsch, wire harness
Expected Life Cycle 1 million (rotary); 500000 (shifter handle)
Operating Temp Range -40°C - 85°C (-40°F - 185°F) 0% - 95% relative humidity
Operating Volt Range 3V - 32V
Solenoid Load 2A @ 12.8V with arc suppression
Measurements Ø 65.02 mm x 220.47mm L
(Ø 2.56 in x 8.68 in L)
Features IP67; turn signals are built to complement the shifter, or can be mounted as
stand alone
Shifter Pin TCU Pin TCU Channel Description
1 * * *
2 7 Digital 6 Reverse
3 29 Digital 9 Gear Selection
4 ** ** **
5 * * *
6 10 Digital 8 Gear Selection
7 8 Digital 7 Forward
8 30 Digital 10 Optional Button
Shifter Pinout
* N/A; Items are unterminated
** Signal Ground

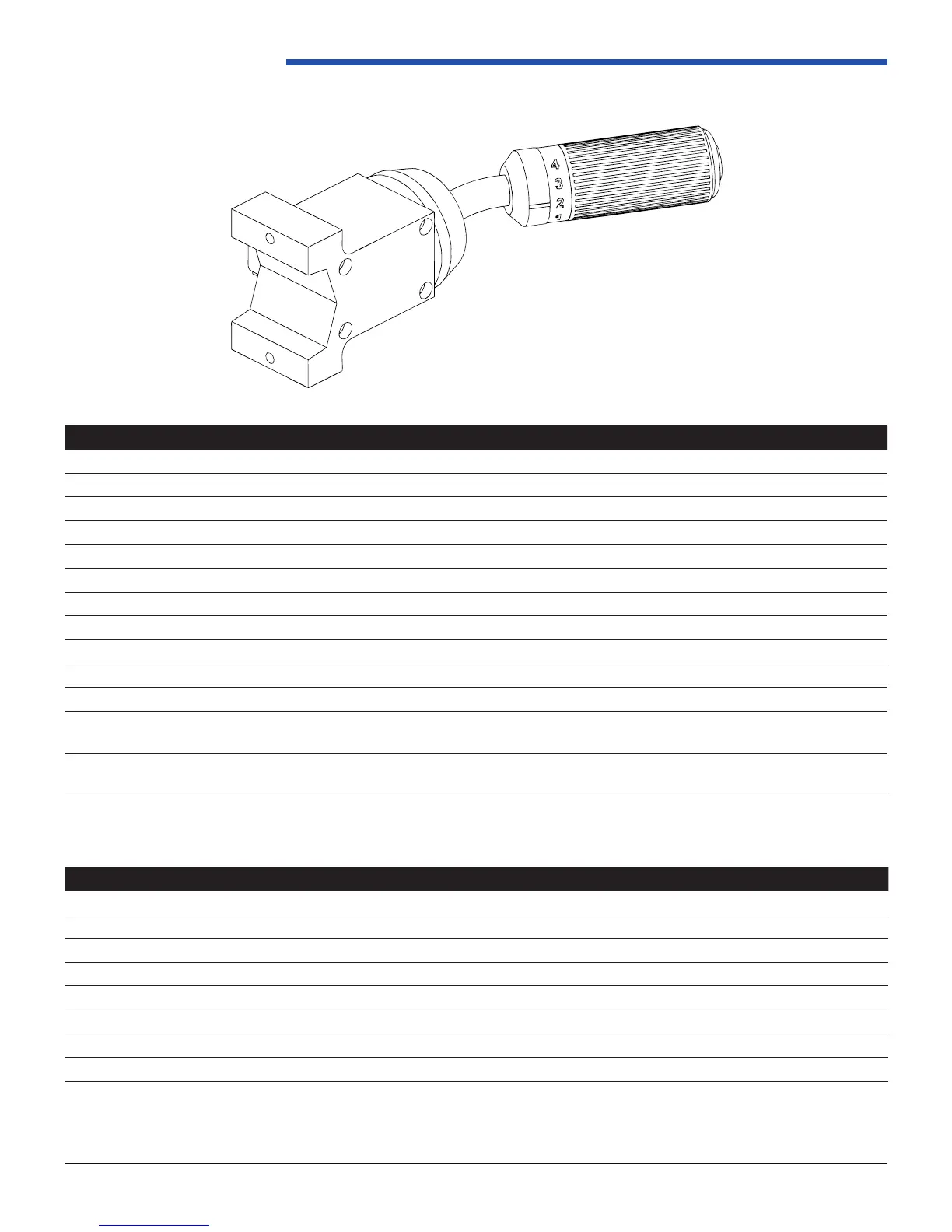

Figure 2.4.3-2: Electronic Range Shifter
