4LHD/4LHDX Application Manual
Powertrain Control Solutions
REV 1.1
1.1.2 Feature Location Illustrations

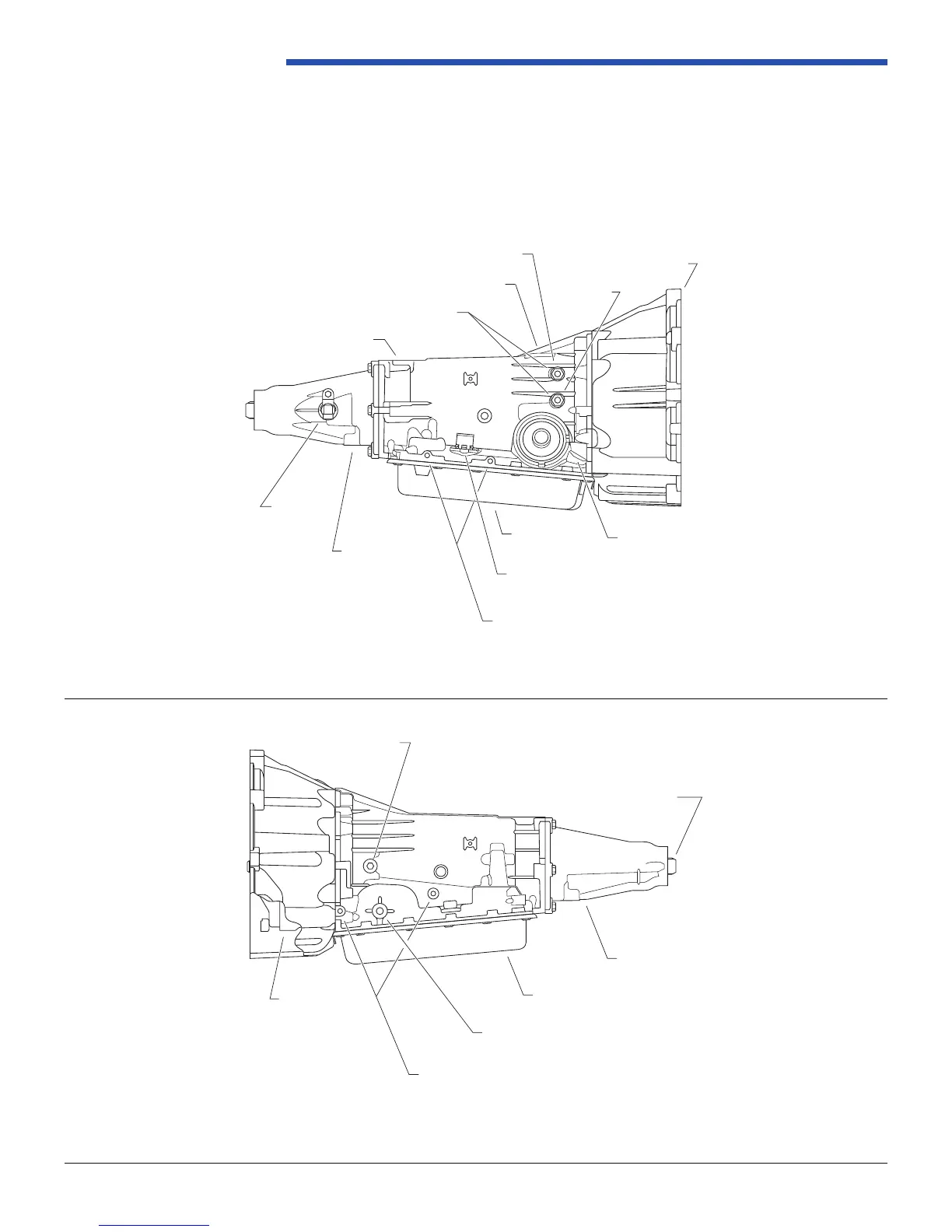

The following gures show all external components and their locations on the transmission case. Manual shaft, uid
level screw, vent cap, output vehicle speed sensor, bottom pan, electrical pass-through connector, cooler line attachment
interface and powertrain mount boss provisions are shown in these diagrams.
Figure 1.1.2-1: PCS 4LHD/4LHDX with GM GEN III Bellhousing and 2WD Extension Housing (Right Side View)
RevSheet 2424214609
FIGURE 2.4.6.1-2 2-Piece Transmission Case with Small Bell Housing (245mm/258mm)
Right Side View
➤
TRANSMISSION CASE
➤
➤
FLARE OR QUICK CONNECT
➤
AIR BREATHER (VENT)
➤
FROM COOLER
➤
TO COOLER
➤
ENGINE FACE
➤
FILL TUBE
HOLE
➤
VEHICLE
MOUNTING PAD
➤
SPEED
SENSOR
➤
➤
HEAT SHIELD LOCATION (S)
ATTACHMENT
TRANSMISSION CONTROL
CONNECTOR
➤
➤
TRANSMISSION
OIL PAN
Figure 1.1.2-2: PCS 4LHD/4LHDX with GM GEN III Bellhousing and 2WD Extension Housing (Left Side View)
RevSheet 2524214609
FIGURE 2.4.6.1-3 2-Piece Transmission Case with Small Bell Housing (245mm/258mm)
Left Side View
➤
LINE
PRESSURE
TAP
➤
OUTPUT
SHAFT
➤
➤
CASE
EXTENSION
➤
➤
ATTACHMENT BOSSES FOR
EXTERNAL POSITION SWITCH
TRANSMISSION SHIFT LEVER
(MANUAL SHAFT)
➤
TRANSMISSION OIL PAN
➤
TORQUE
CONVERTER
