4LHD/4LHDX Application Manual
Powertrain Control Solutions
REV 1.1
2.4 Transmission Shift Lever
Driver selection of the transmission range is normally accomplished through a cable linkage connecting a oor or column
mounted selection lever to a transmission shift lever on the manual shaft. The vehicle manufacturer must make provisions
to provide all the linkage and controls up to the transmission manual shaft. Sections 2.4.1-2.4.2 describe how to design
this linkage. For an electronic shift reference Section 2.4.3.

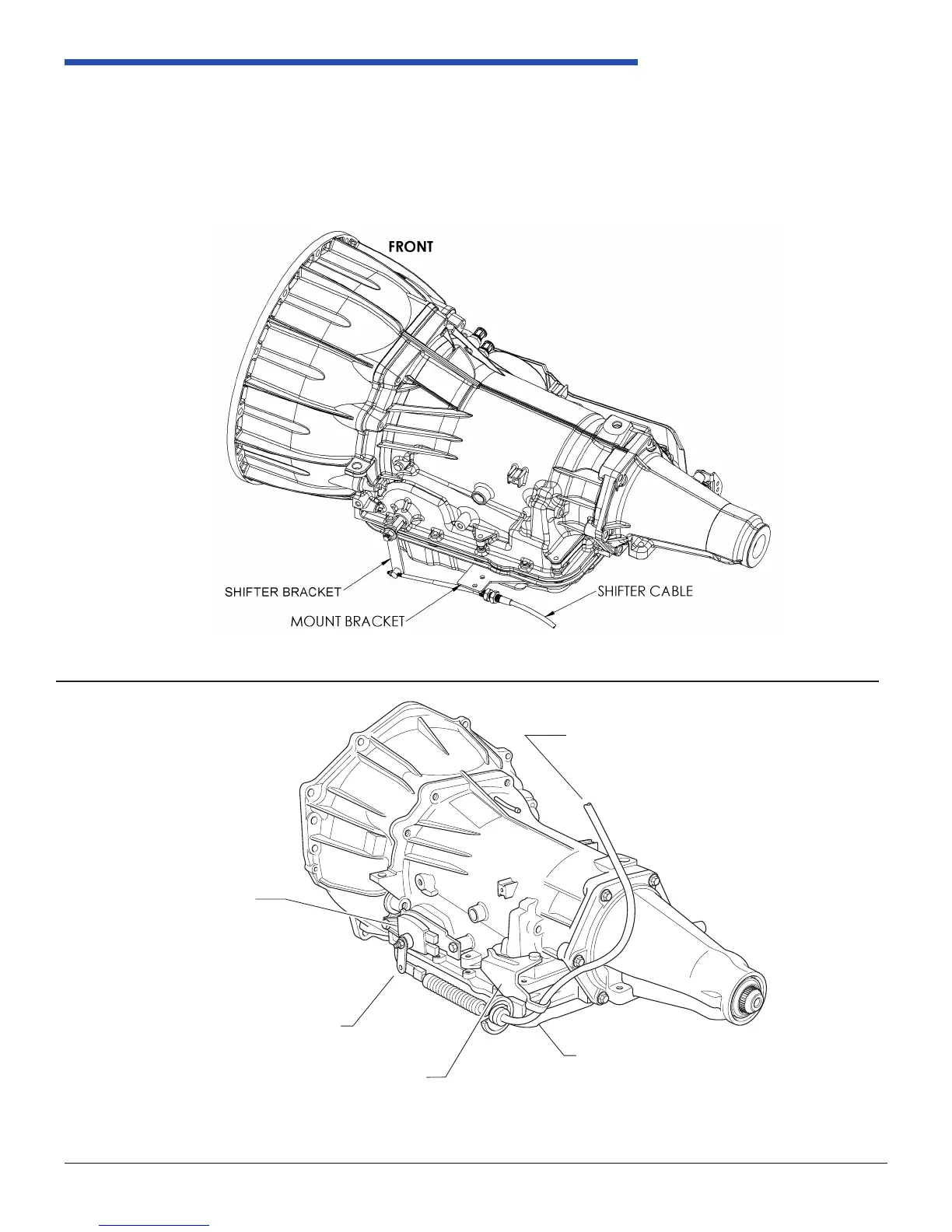

Figure 2.4-1 Typical Shift System
Figure 2.4-2 Shift System with NSBU Switch
RevSheet 6724214609
FIGURE 3.4-2 Typical Shift System with NSBU Switch
TRANSMISSION
SHIFT LEVER
SHIFT CABLE
REACTION BRACKET
SHIFT CABLE
SHIFT CABLE MOUNTED
TO COLUMN OR FLOOR
RANGE SELECTION LEVER
➤
➤
➤
➤
NSBU
NEUTRAL-START
BACKUP-SWITCH
(SOME APPLICATIONS)
➤
