4LHD/4LHDX Application Manual
Powertrain Control Solutions
REV 1.1
5. Install the oil pan bolts and tighten alternately and evenly to
11 Nm (97 lb in). Reference Figure 2.3.8-8.
6. If previously removed, reinstall the exhaust heat shield.
7. Lower the vehicle.
8. Fill the transmission to the proper level with DEXRON® VI
transmission uid. Refer to Section 2.3.6 for uid capacity.
9. Check the COLD uid level reading for initial ll only.
10. Inspect the oil pan gasket for leaks.
11. Test drive vehicle and verify proper transmission operation.
12. Check uid level when transmission is at operating temperature.

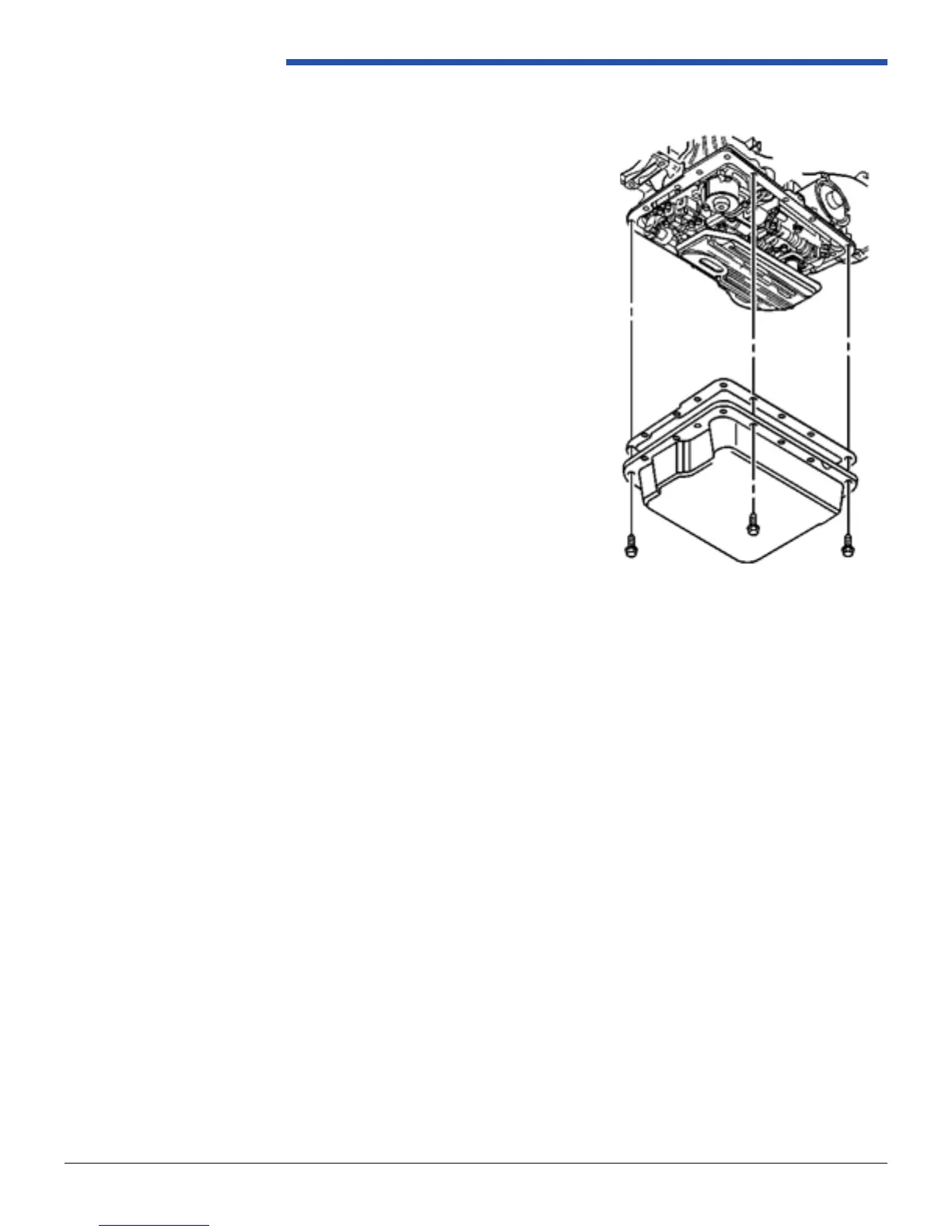

Figure 2.3.8-8
