2.1.2 Flexplate
PCS uses a universal explate for our GM and SAE applications, while the C6 converter is designed for the stock C6
explate.

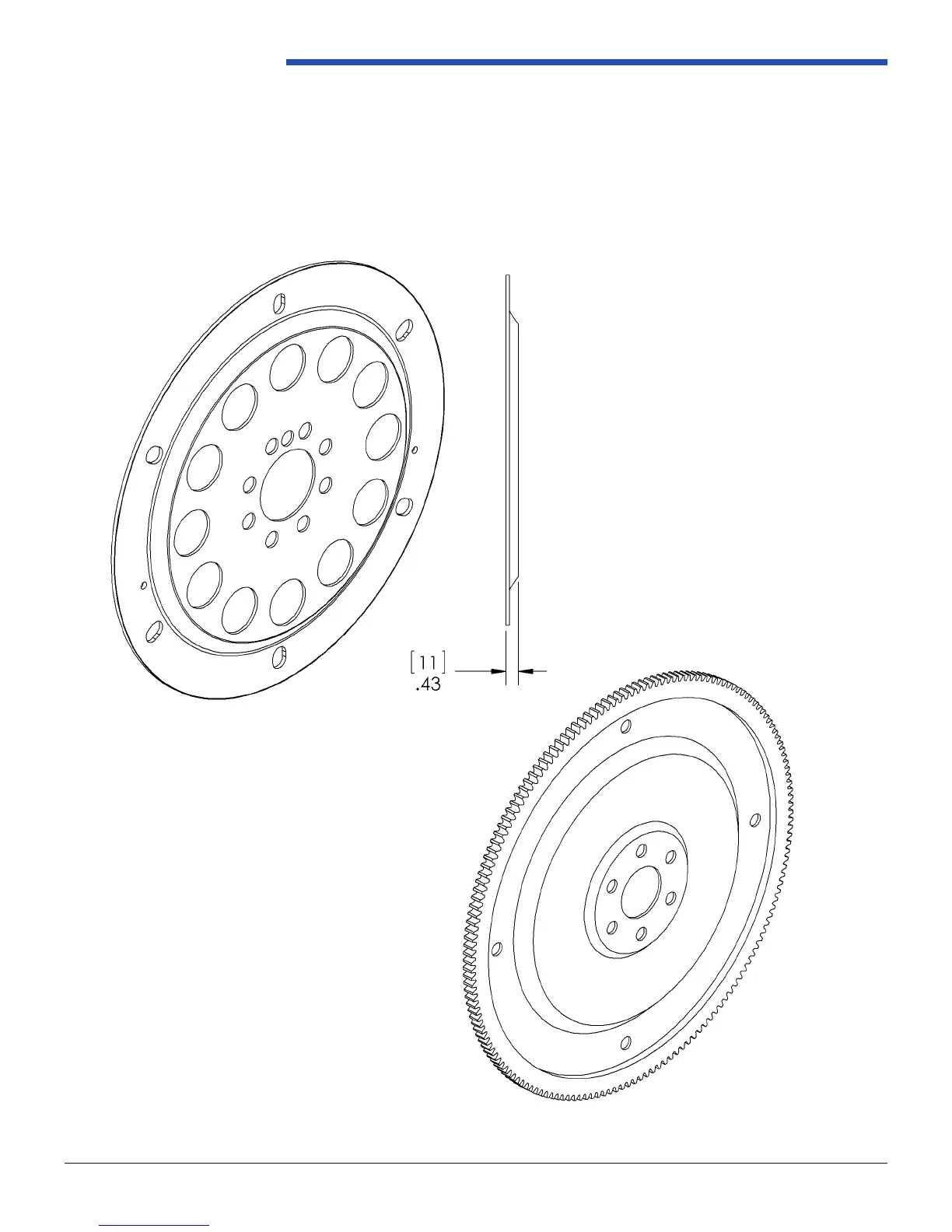

Figure 2.1.2-1 GM Flexplate
Figure 2.1.2-2 C6 Flexplate
