Peak 212 - Power Supply Connection (Three-Phase)

20
2. 380V three-phase motor wiring
2.1
、

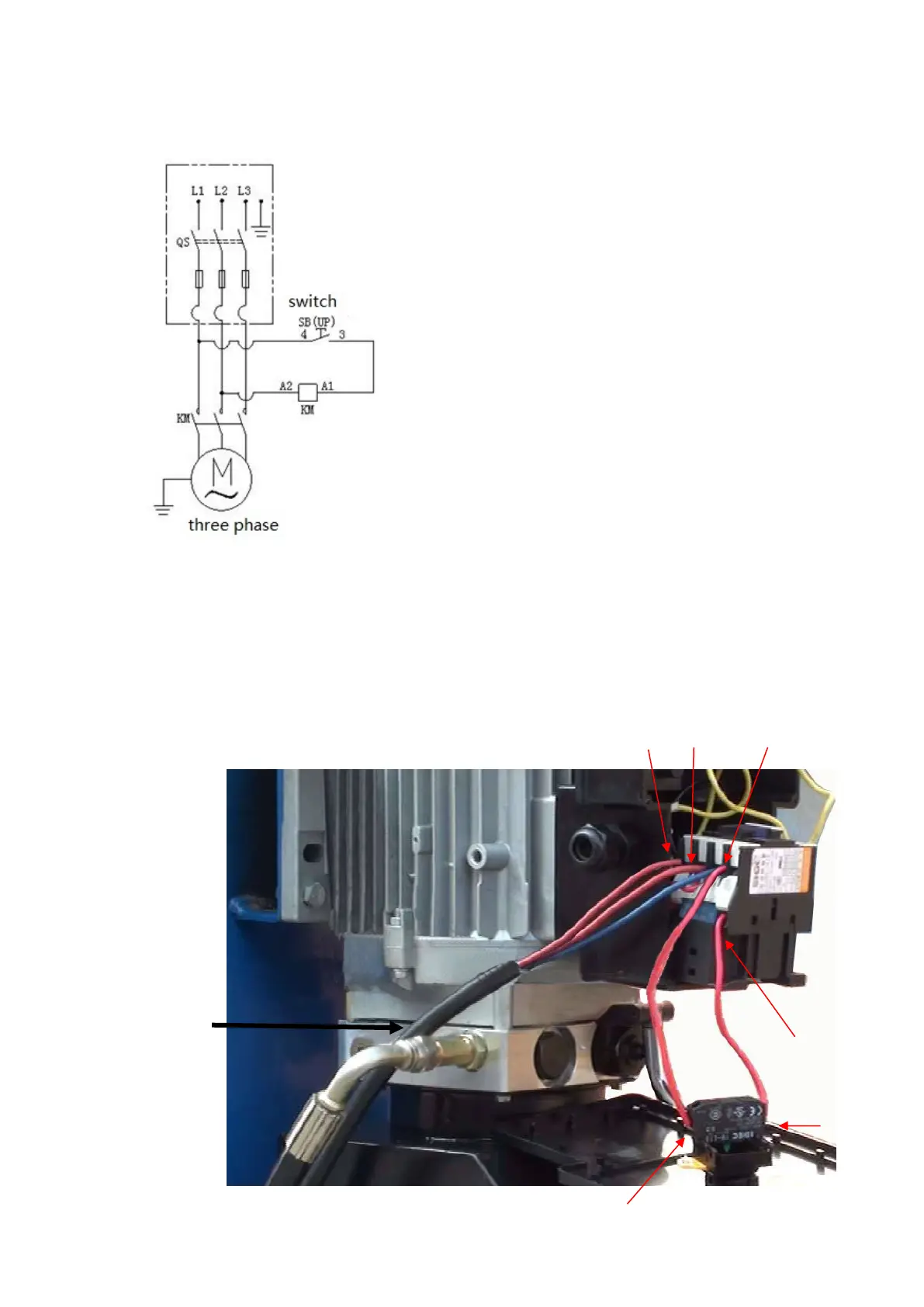

Circuit schematic (Fig 32)
2.2 Wiring steps (Fig 33)
○
1 The three wires (L1, L2, L3) of the external power supply are connected to the terminals
labeled L1, L2, L3 on the AC contactor
○
2
The terminal labeled L1 on the AC contactor is connected to the 4 # terminal of the button
switch, and the A1 terminal is connected to the 3 # terminal of the button switch.
Fig 33
Power cable
L1
L2
A1
3#
4#
L3
Fig 32
