PEAK FCB8N: Programmable MIDI foot controller
Page 4 of 16
BANK UP/DOWN SWITCH: Increments and decrements the BANK selection. In 4Pr mode Banks are
numbered from #1 to #32. In 12Pr mode they are numbered from #1 to
#10
PATCH SWITCHES: In 4Pr mode the FCB8N has 4 Patches in each BANK labelled as P1, P2,
P3 and P4 or 12 Patches per BANK labelled as 1, 2, 3, …, 12 in 12Pr
mode. These switches are also used for INSTANT ACCESS Commands
and in edit mode for function selection i.e. edit, enter, save, cancel,
copy, etc...
BANK/PROGRAM DISPLAY: The seven segment display has 4 digits displaying mode when editing a
program or BANK number when in operating mode.

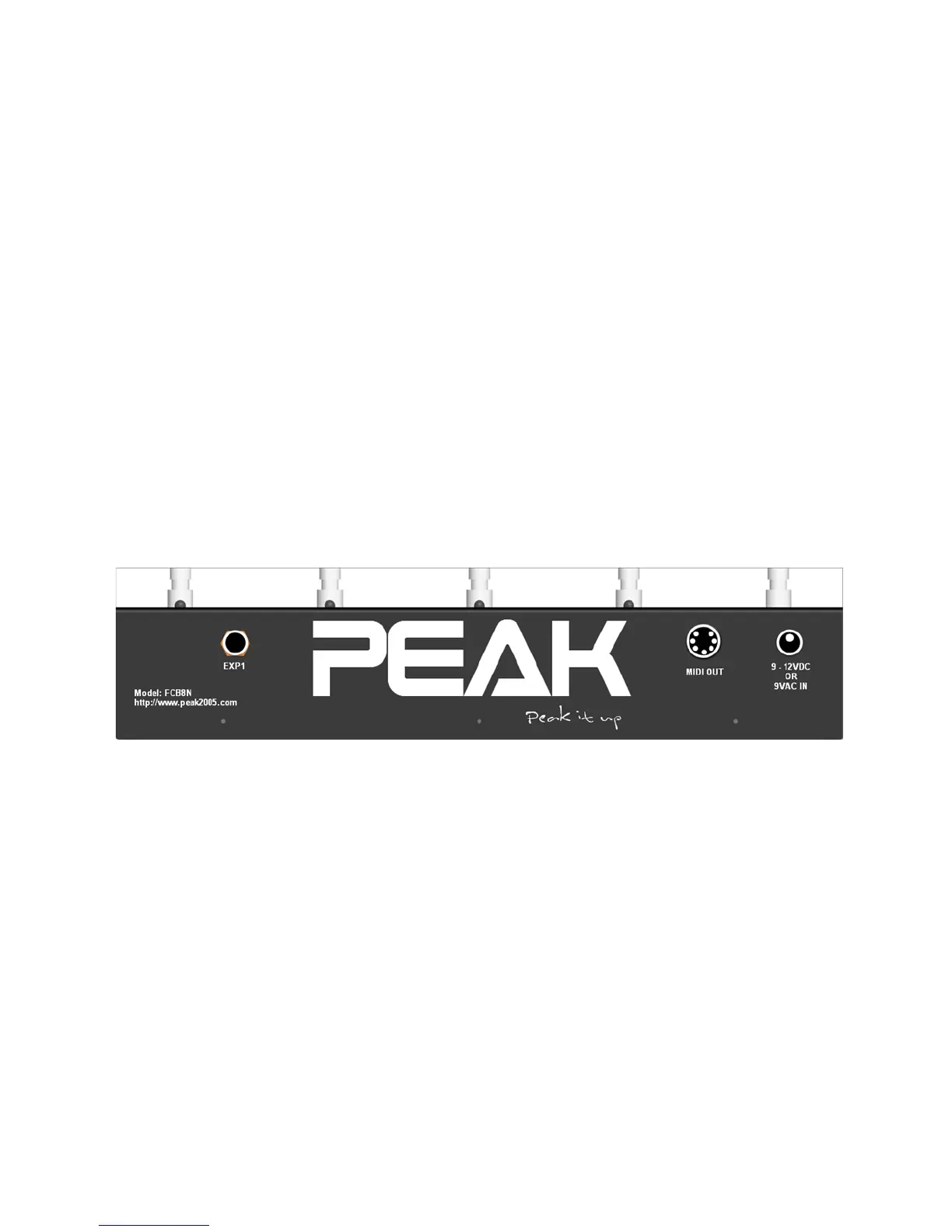

Back Panel
MIDI OUT: The MIDI out port is used to transmit MIDI messages from the unit to
other MIDI device/s. It is a 7 pin MIDI connector with phantom power
support on pins 6 & 7. Supplied voltage must be within 9V – 12V DC or
12VAC, at 200mA minimum current. Voltage over 12VDC or 9VAC
will damage the unit.
9-12V DC/AC In: Power supply input, 5.5mm/2.1mm barrel connector, Supplied voltage
must be within 9Vdc – 12Vdc or 12Vac, at 100mA minimum current.
Voltage over 12Vdc or 9Vac will damage the unit.
EXP1: ¼” (6.35mm) TRS (Tip, Ring, Sleeve) input to suit standard 10K
expression pedal or volume pedal.
Note: Do not apply power to the external power supply socket if you are phantom powering the unit via
MIDI a cable.
