Expression Pedal Input (EXP1)
Expression pedal input EXP1 available both in 4Pr mode or 12Pr mode. You can enable or disable the
expression pedal for each PATCH. The expression pedal can be programmed to send any Control Change
on any MIDI channel for each PATCH. Please refer to PATCH Programming Mode for details.
EXP1 Input requires either a standard expression pedal wired directly with a stereo ¼” (6.35mm) TRS
cable or a volume pedal using a Y insert cable. The stereo end of the Y-cable plugs into the EXP1 and the

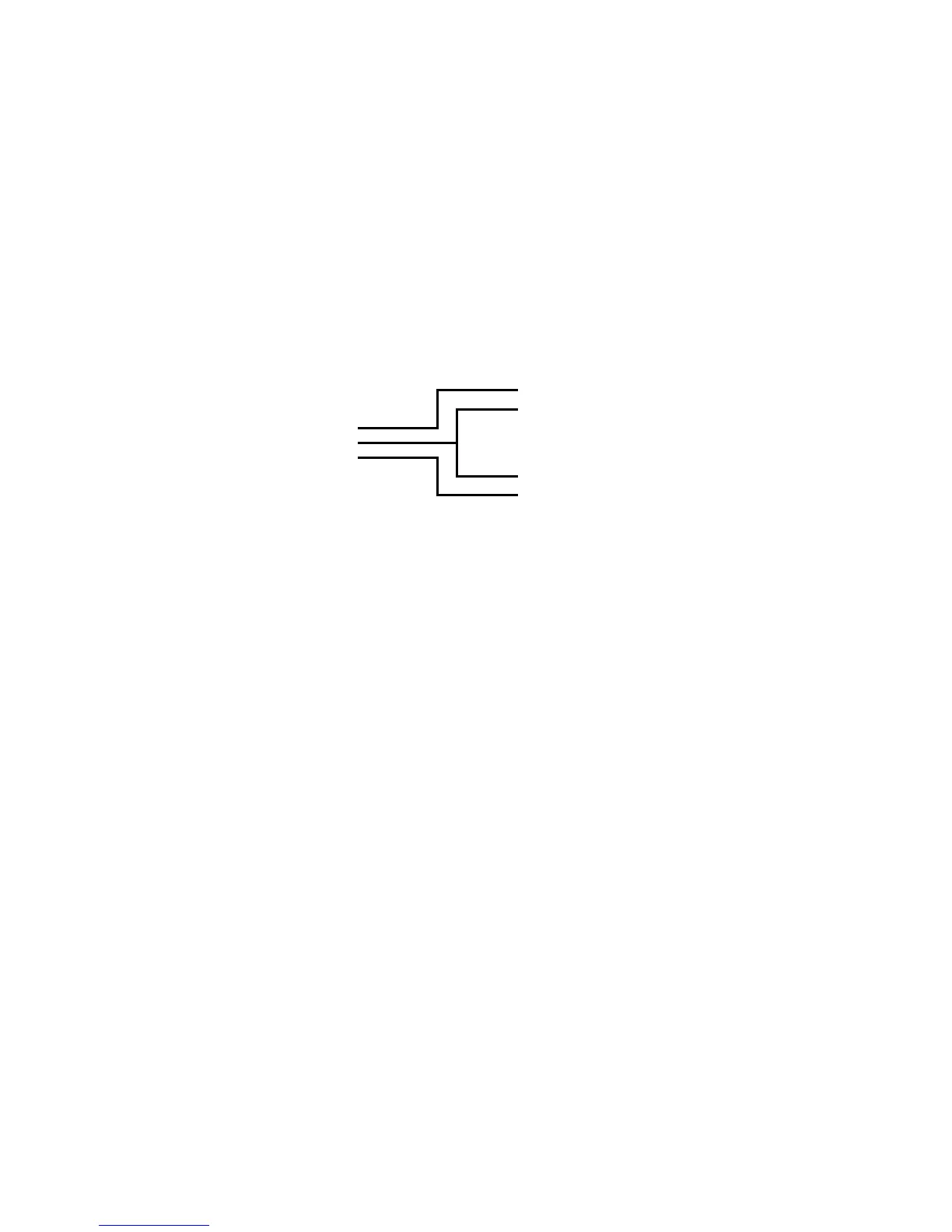

two mono ends plug into the input and output of the volume pedal as showing in below diagram.
NOTE: Disconnect the power from the unit before plugging in the expression pedal. Failure to do so could
result in damage to the unit.
Plug into Volume Pedal Input
Plug into Volume Pedal Output
