The Generator is designed for indoor use only. The unit should be installed adjacent to the
Mass Spectrometer it is supplying. If this is not convenient then the generator can be sited
elsewhere, however, consideration should be made of the lengths of pipe runs as pressure
drops can result from extended runs of pipe.
Performance of the generator (like all sophisticated equipment) is affected by ambient
conditions. Continuous operation in ambient temperatures exceeding 25ºC will lead to a
reduction in capacity and prolonged operation in temperatures exceeding 30ºC will shorten
the life of the unit.
Note should also be taken to the proximity of Air Conditioning outlets. These can sometimes
give rise to ‘pockets’ of air with high relative humidity. Operation of the generator within such
a pocket could adversely affect its performance. Consideration should also be given to the
air flow around the unit.
It is recommended that an air gap of 75mm (3”) should be maintained down both sides and
across the top of the unit. Please refer to the drawing below for the general dimensions of
the generator.
MAXIMUM AMBIENT CONDITIONS: - 30ºC (dry bulb) 70%RH (Max.)

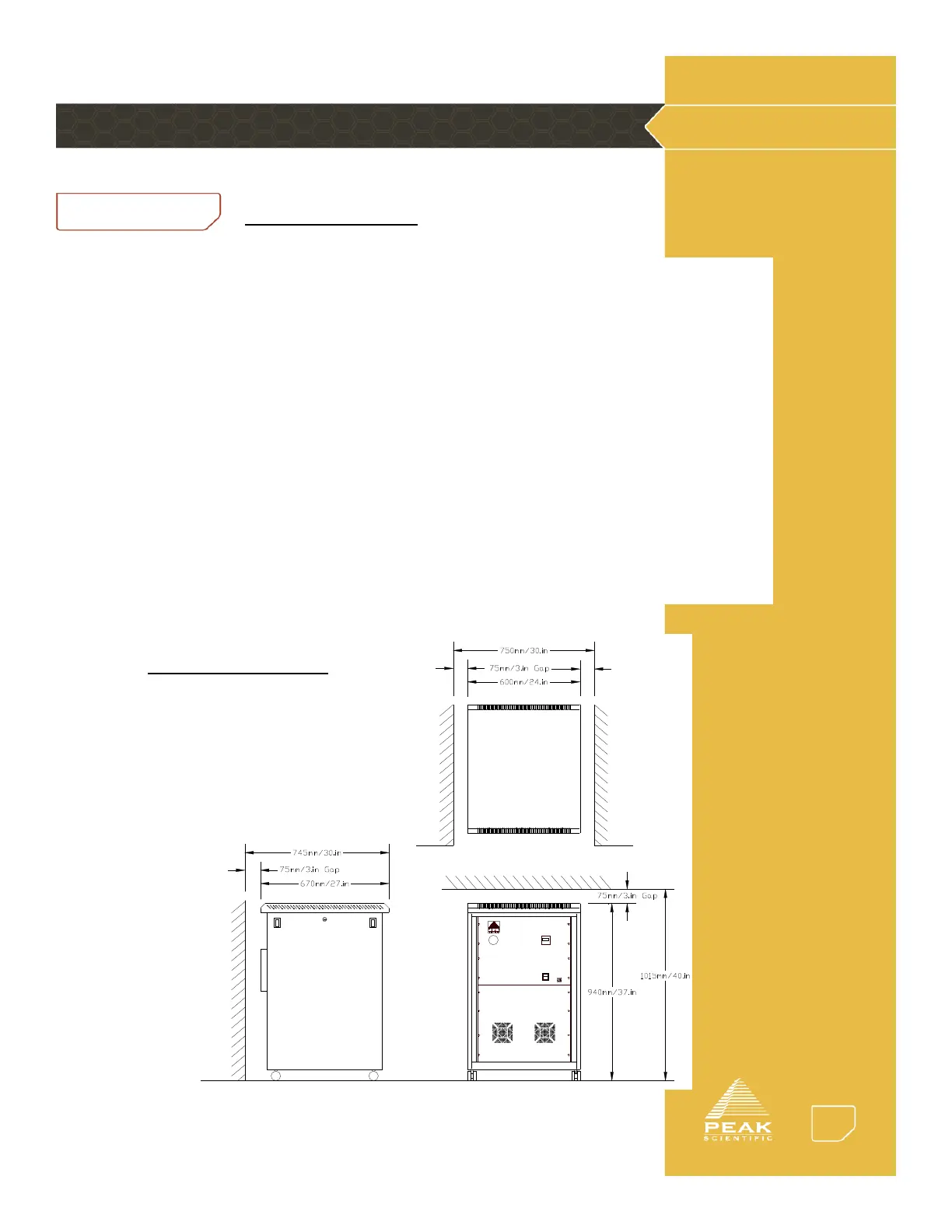

General Dimensions
