PCAN-USB Hub – User Manual
11

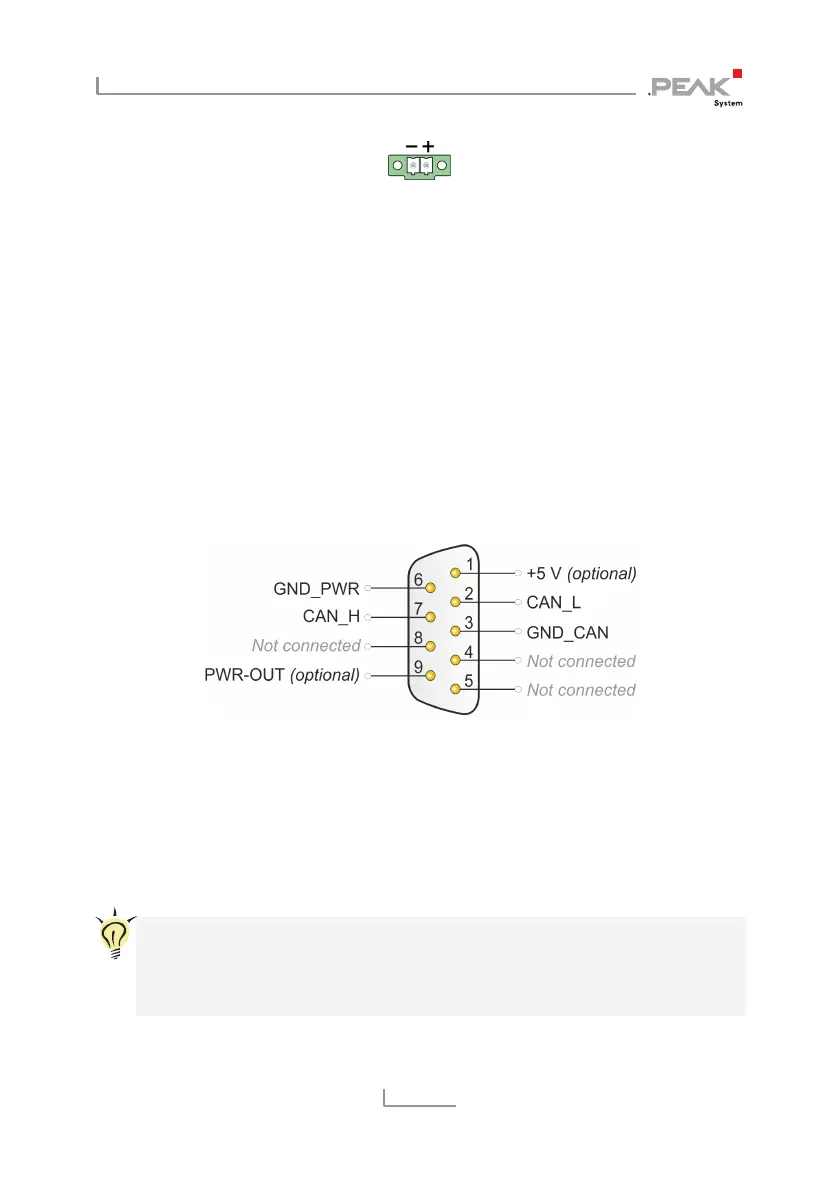

Figure 1: Power socket at the rear of the PCAN-USB Hub
for the external voltage supply (self-powered operation)
The connection of an external power supply at the power socket is
done with the supplied mating connector for fastening cable
strands.
3.3 Connection over D-Sub connector
A High-speed CAN bus (ISO 11898-2) is connected to the 9-pin
D-Sub connector. The pin assignment for CAN corresponds to the
specification CiA® 303-1.
Figure 2: Pin assignment High-speed CAN
(view onto connector of the PCAN-USB Hub)
Low power devices (e.g. bus converters) can be supplied directly
with 5 volts over pin 1 and pin 9 of the CAN connector. Pin 1 and
pin 9 is not in use at the delivery state. For more information see
the next section 3.3.1.
Tip: You can connect a CAN bus with a different transmission
standard via a bus converter. PEAK-System offers different bus
converter modules (e.g. PCAN-TJA1054 for a Low-speed CAN
bus according to ISO 11898-3).
