13

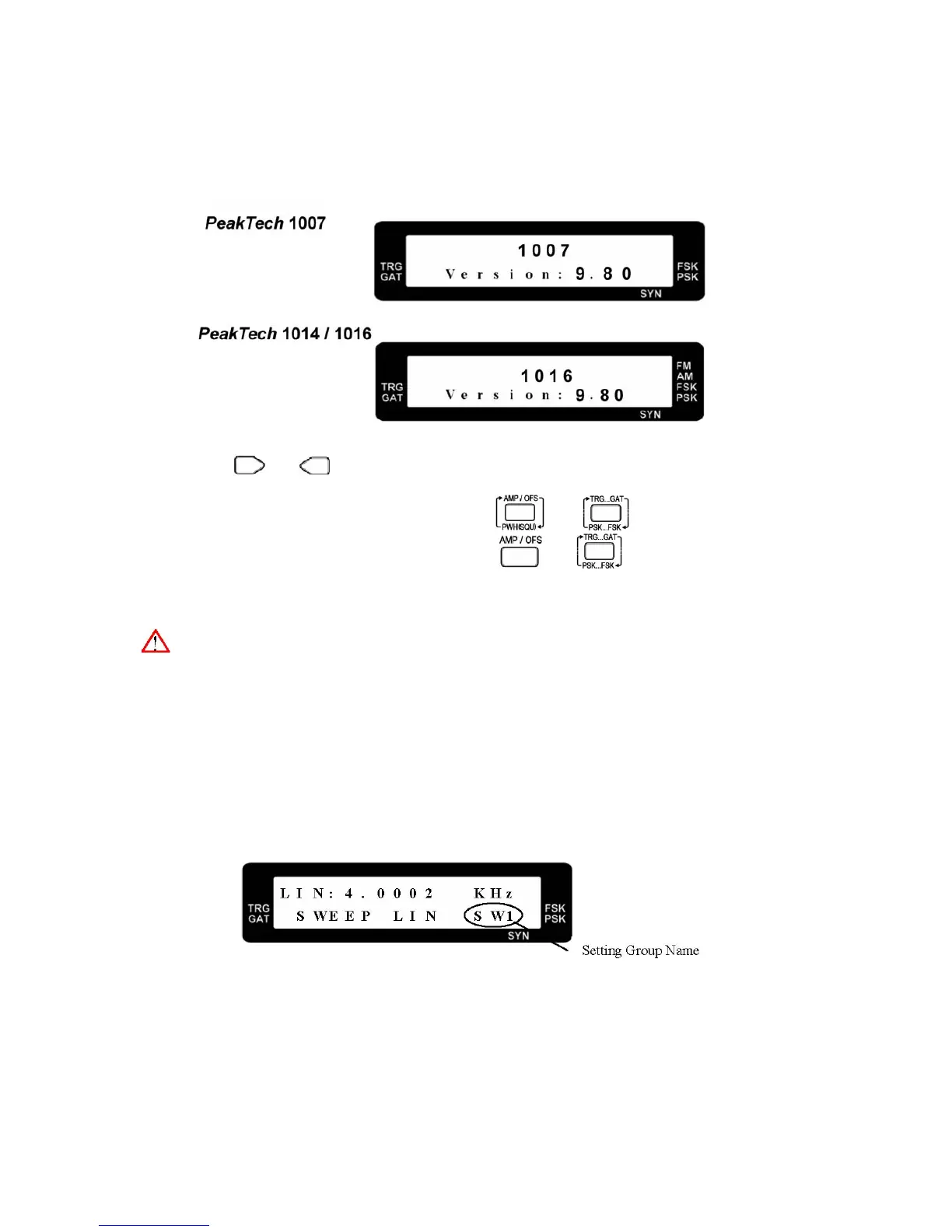

2.2 Opening Screen
Connect the power cord and turn on the function generator.
a. Press the and together to reset the function generator. This reset function sets the
function generator to default of 1kHz sine wave output at 20dB attenuation amplitude.
b. To turn off the beep of the keypad, please press
and keys together for P 1007.
c. To turn off the beep of the keypad, please press
and key together for
P 1014/1016.
Warning
Please make sure that the correct power rating feeds to the function generator. If the higher
voltage (230V) feeds to 115V version of function generator, the chance of damage the function
generator may happen and the fuse will blow. Please use the following rating of fuse for
replacement.
115V version function generator: 0.5A/250V fuse (slow blow)
230V version function generator: 250mA/250V fuse (slow blow)
2.3 Setting Group Name
The setting group name is to show which parameter is set currently. For example, SW1 sets the
sweep mode of linear or logarithm, SW2 sets the type of sweep and SW3 sets the sweep start
frequency, etc.
