24

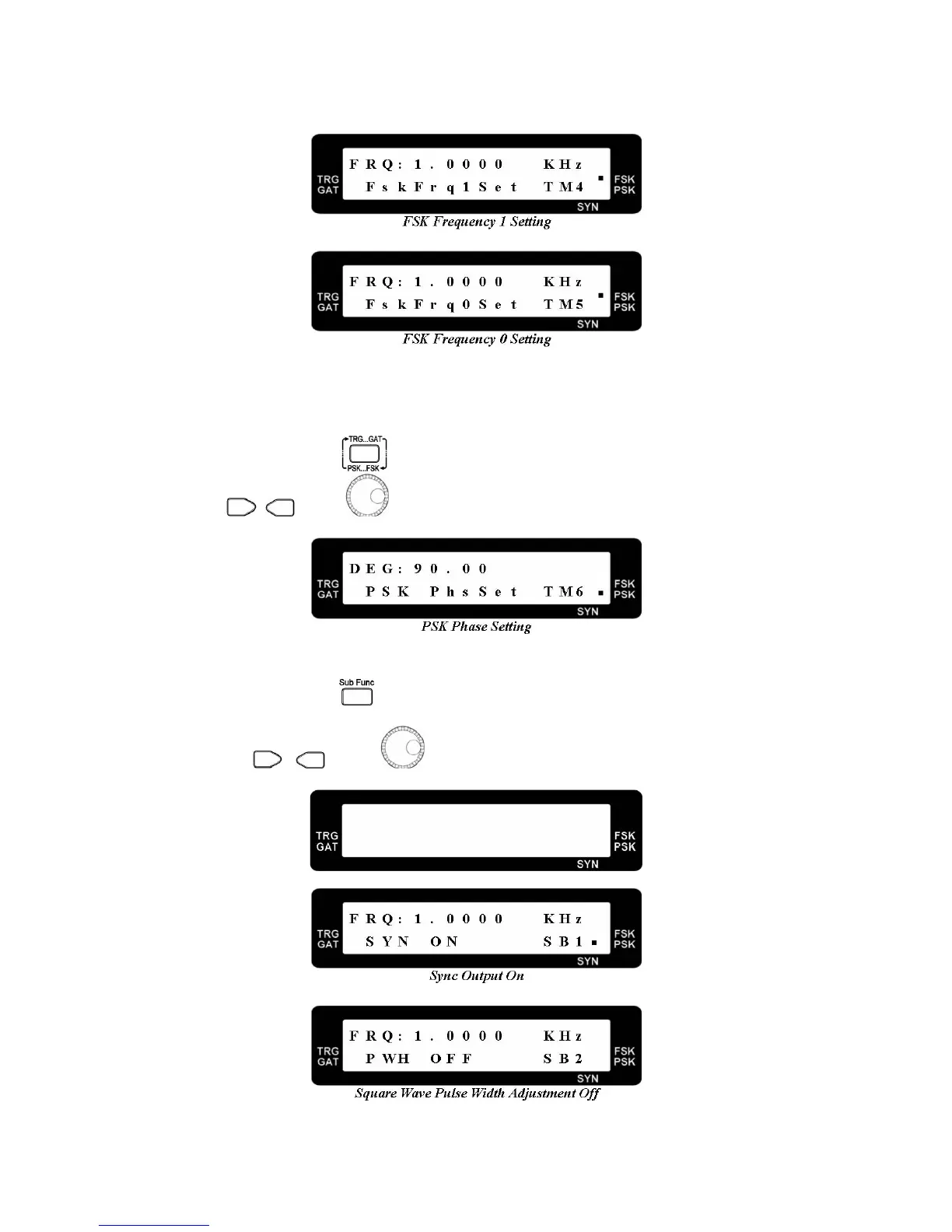

Note : The FSK frequency register 1 setting range is from 12.0Hz to maximum output frequency
of the function generator or 12.000MHz. The FSK frequency register 0 setting range is
from 0.100Hz to maximum output frequency of the function generator or 12.0000MHz.
d. If PSK turns on, press the
key to enter the PSK phase setting menu.
Use the
, key or to set the desired PSK phase.
2.12 Sub Function
a. At P 1007, press the key to select sync output on/off, square wave pulse width
adjustement on/off
and
output offset on/off.
Use the
, key or to select the desired on/off setting.
Sync Output Off
F R Q : 1 . 0 0 0 0 k H z
S Y N O F F S B 1
To Next Page
