2.4 Adjust Frequency
a. When the cursor does not appear on the LCD, use
and key to adjust frequency x10
and /10.
b. Adjust the
to make the cursor appear and to change the frequency, use or
key to change the cursor position right or left. To cancel the cursor, please press the rotary
button.
2.5 Select Waveform
a. In PeakTech
®
1007, press the key to select output waveform. There are four waveforms
to be selected (
sine, square, triangle
and
DC
).
b. In PeakTech
®
1014 / 1016, press the key to select output waveform. There are six
waveforms to be selected (sine, square, triangle, ramp up, ramp down and DC).

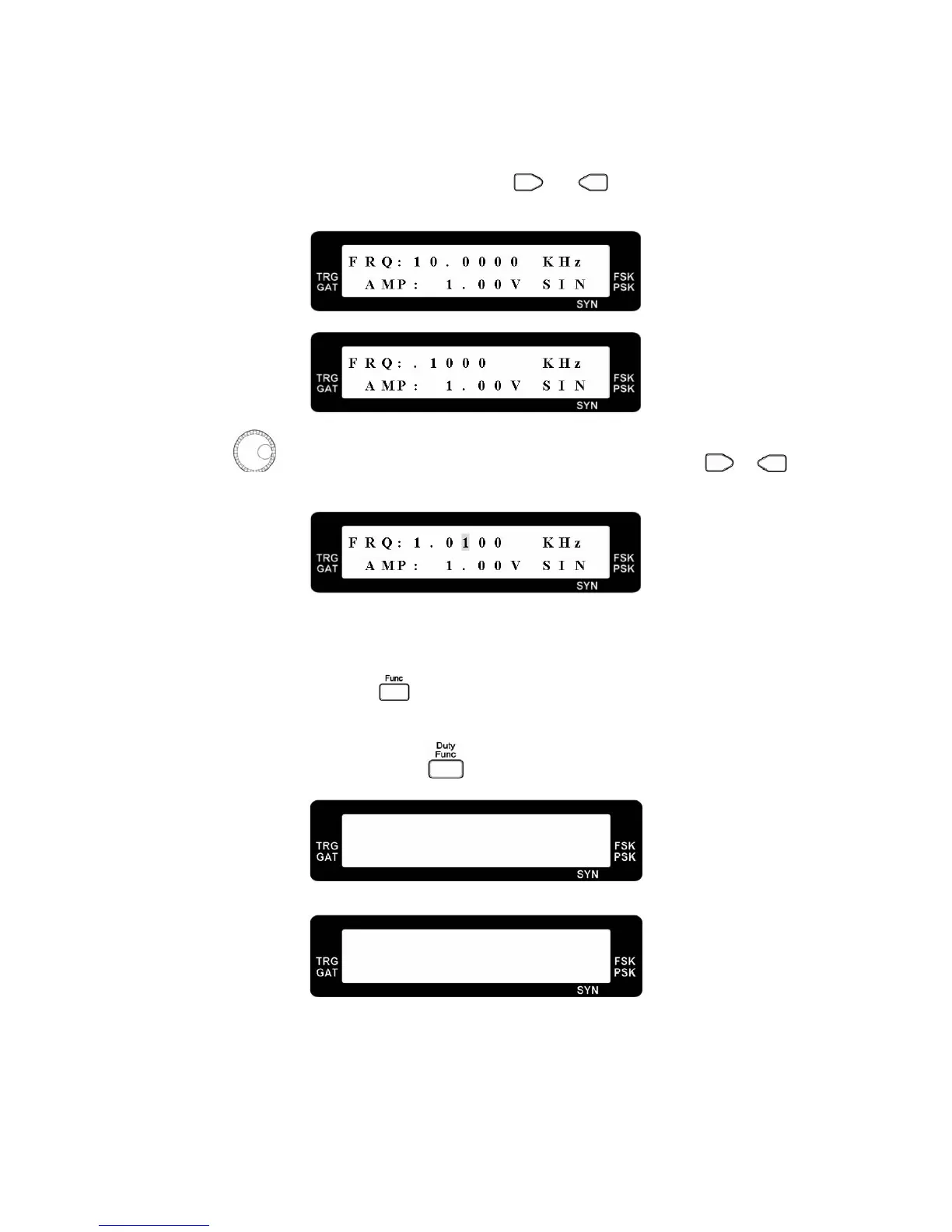

Sine Wave Output
Square Wave Output
F R Q : 1 . 0 0 0 0 k H z
A M P : 1. 0 0 V S I N
F R Q : 1 . 0 0 0 0 k H z
A M P : 1. 0 0 V S Q U
