Press the H1 menu selection button and choose Main. In this case, the HORIZONTAL POSITION and
SEC/DIV knobs are used to adjust the main window. The display in the screen is shown as Fig. 27.

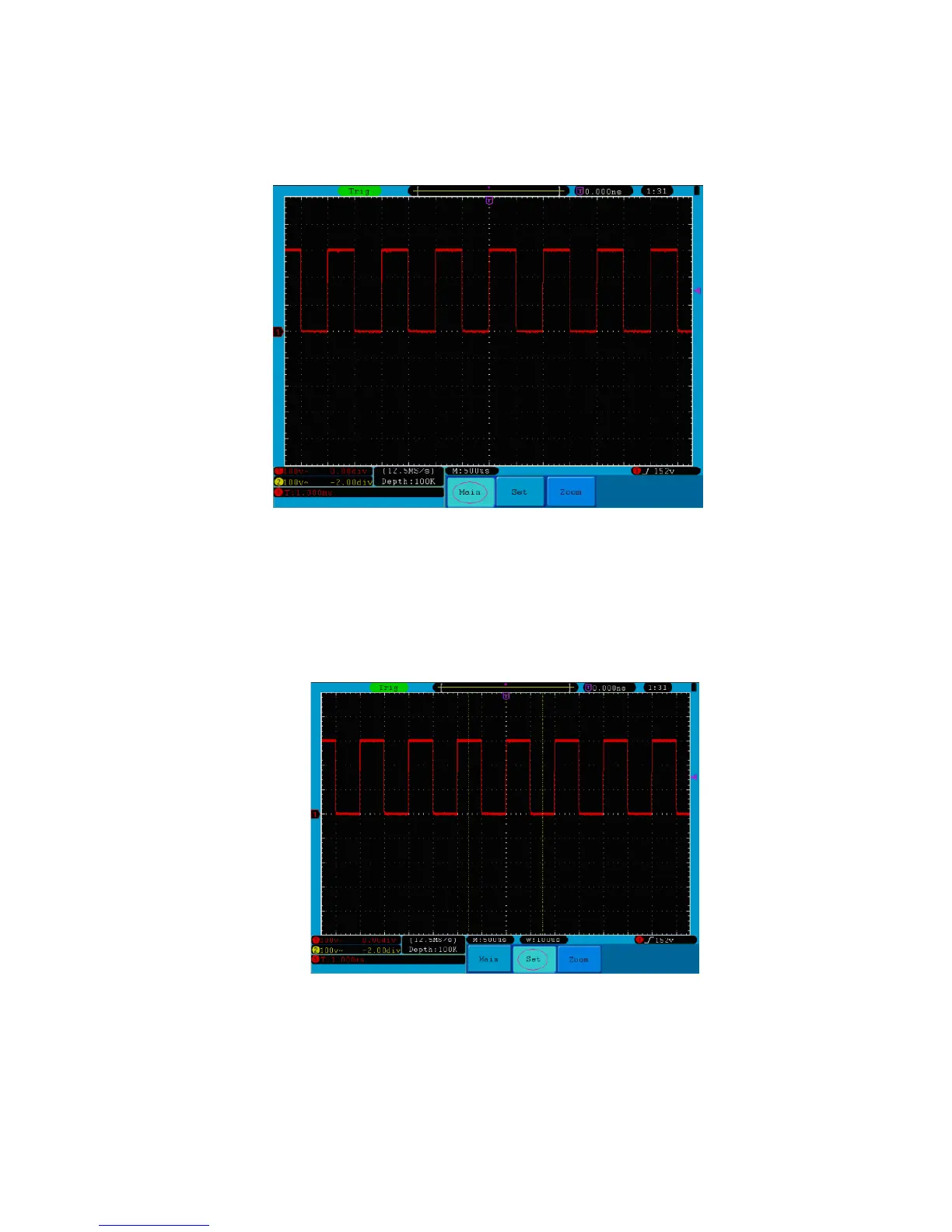

Fig. 27 Main Time Base
17. Set Window
Press the H2 menu selection button and choose Set. The screen will show a window area defined by two
cursors. In this case, the HORIZONTAL POSITION and SEC/DIV knobs can be used to adjust the horizontal
position and size of this window area. In FFT mode, Set menu is invalid. See Fig. 28.
Fig. 28 Window Setting
-117-
