PeakTech 1245 User Manual

21. How to Set the Display System

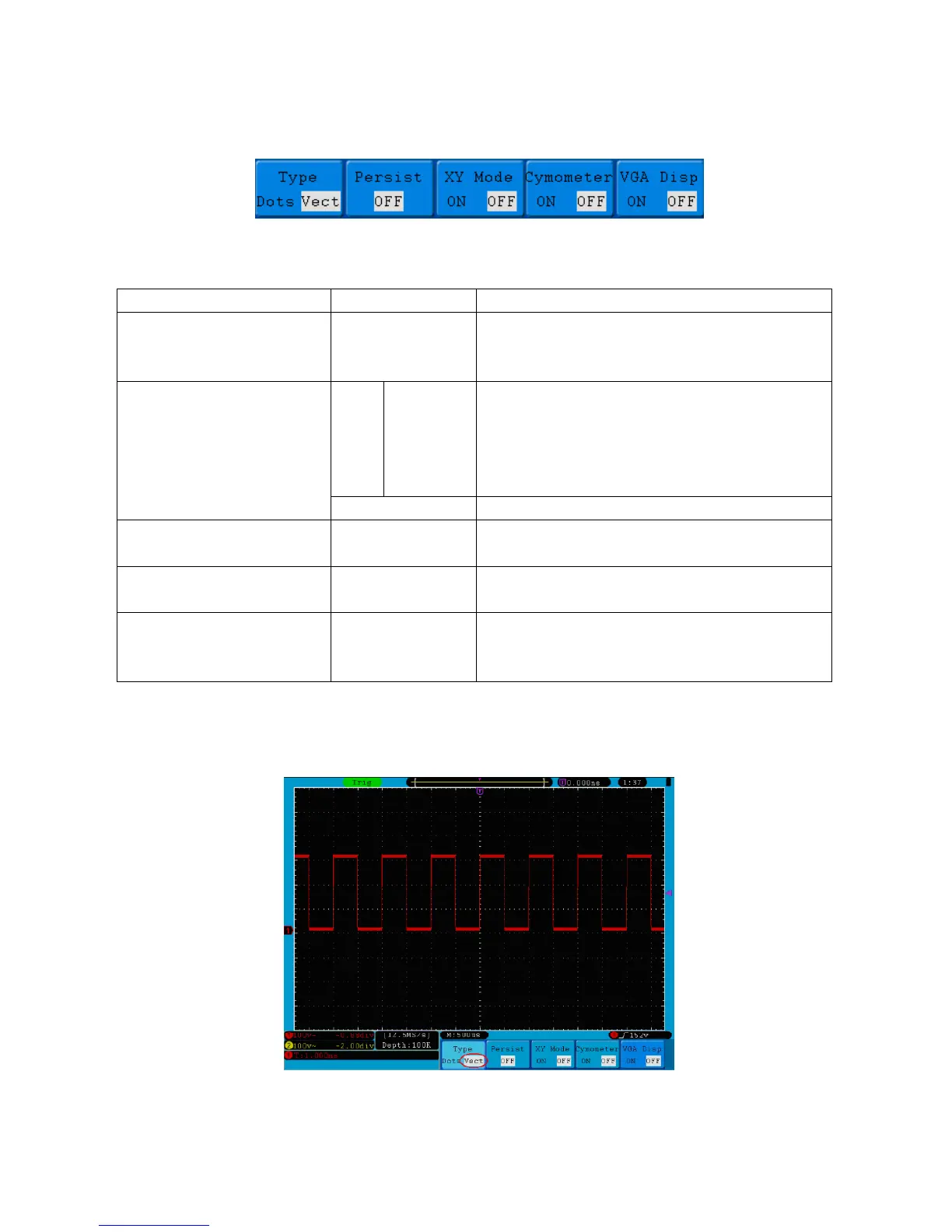

Push down the Display button and the menu displayed in the screen is shown as Fig. 42.
Fig. 42 Display Set Menu
The description of the Display Set Menu is shown as follows:
Display Type:
With the F1 menu selection button pushed down, you can shift between Vect and Dots types. The differences
between the two display types can be observed through the comparison between Fig. 43 and Fig. 44.
Fig. 43 Display in the Vector Form
-129-
Function Menu Setting Description
Type
Dots
Vect
Only the sampling points are displayed.
The space between the adjacent sampling points in
the display is filled with the vector form.
Persist
Time
OFF
1 second
2 seconds
5 seconds
Infinity
Turn the M knob to set the persistence time
Clear Clear the persistence
XY Mode
ON
OFF
Turn on the XY display function;
Turn off the XY display function.
Cymometer
ON
OFF
Turn on the cymometer ;
Turn off the cymometer.
VGA Disp
ON
OFF
Connect the VGA port to a monitor. If set it as ON,
the waveform could be displayed on the computer
monitor.
