PeakTech 1245 User Manual

28. How to Measure Automatically
Press the Measure button to display the menu for the settings of the Automatic Measurements.
The oscilloscopes provide 20 parameters for auto measurement, including Vpp, Vmax, Vmin, Vtop, Vbase,
Vamp, Vavg, Vrms, Overshoot, Preshoot, Freq, Period, Rise Time, Fall Time, Delay A→B , Delay
A→B ,+Width, -Width, +Duty, -Duty. That’s 10 voltage and 10 time measurements in all.

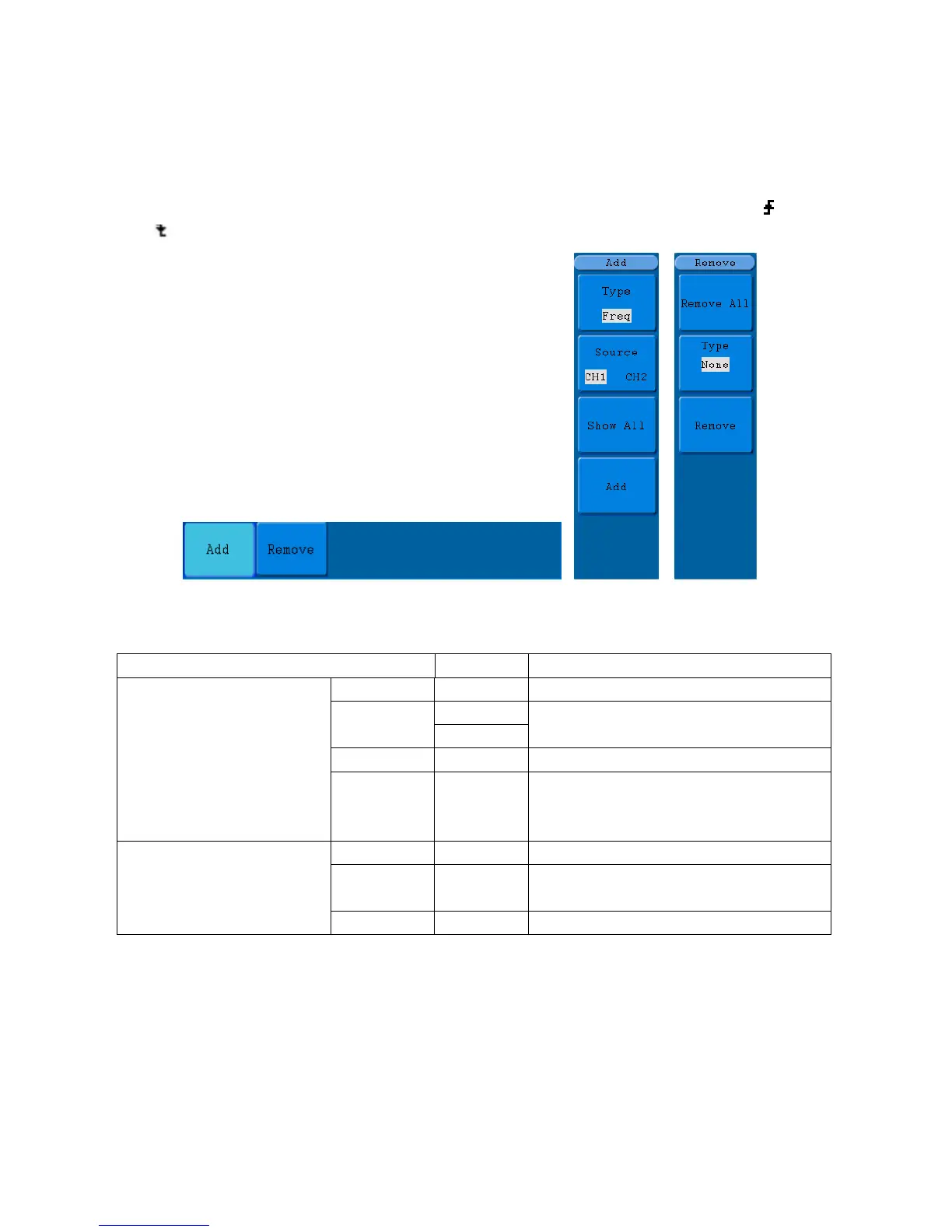

The menu is displayed as Fig. 67.
Fig. 67 Measure Menu
The “Automatic Measurements” menu is described as the following table:
Function Menu Setting Description
Add
Type
Press F1 ,show the measure types
Source
CH1
Select the source
CH2
Show all Show all the measures on the screen
Add
Add the selected measure types (shown at
the left bottom, you could only add 8 types at
most)
Remove
Remove all Remove all the measures
Type
Turn M knob, select the types need to be
deleted.
Remove Remove the chosen measure type
