PeakTech 1245 User Manual

Record menu shows as follows:
Menu Setting Instruction
Mode
OFF
Record
Playback
Storage
Close wave record function
Set record menu
Set playback menu
Set storage menu
Record mode
FrameSet
End frame
Turn the M knob to select the number of frames to record
(1 ~ 1000)
Interval
Turn the M knob to select the interval between recorded
frames (1 ms ~ 1000 s)
Refresh
ON
OFF
Refresh wave during recording
Stop refreshing
Operate
Play
Stop
Begin to record
Stop recording
Note:
Both of the waveforms of Channel 1 and Channel 2 will be recorded. If a Channel is turned off while recording,
the waveform of the channel is invalid in the playback mode.

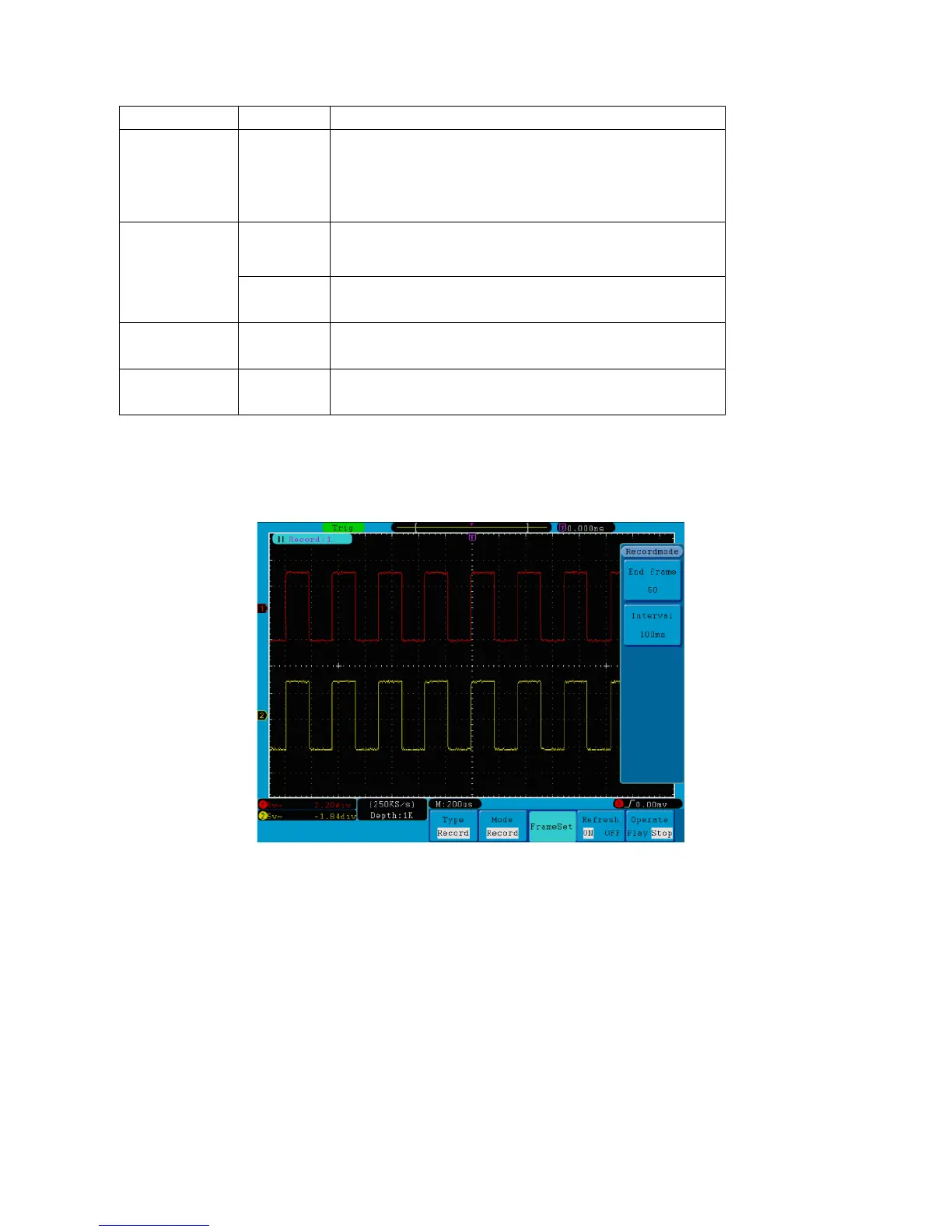

Fig. 50 Wave Record
